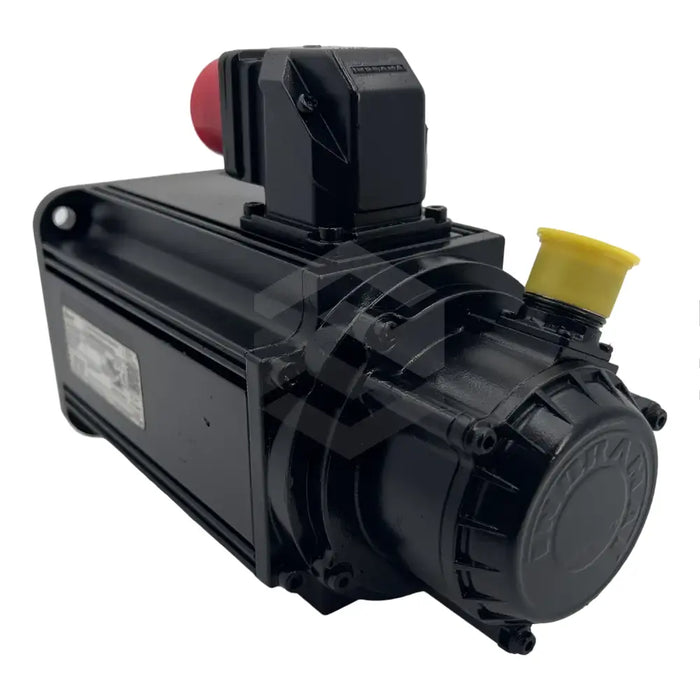

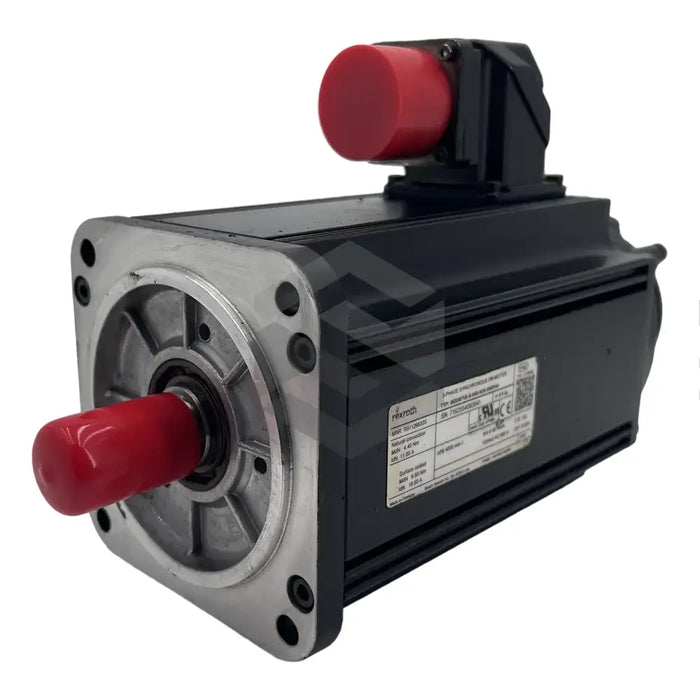

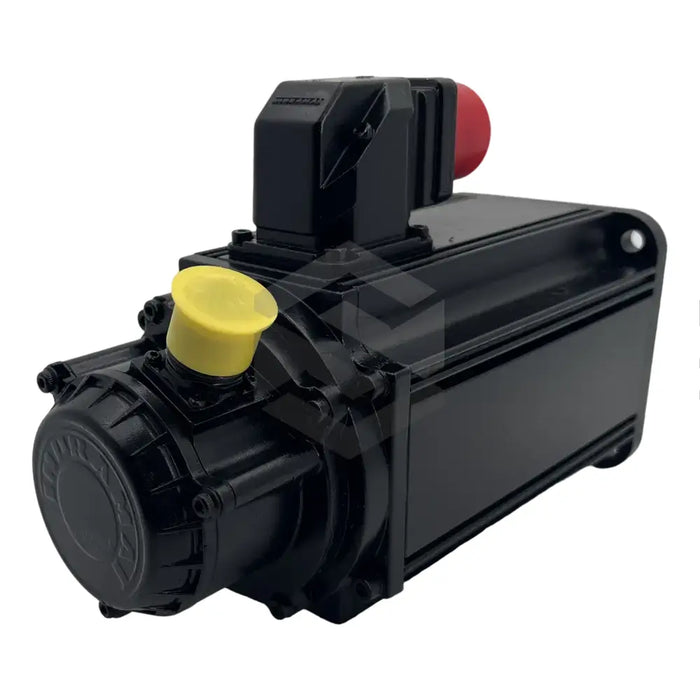

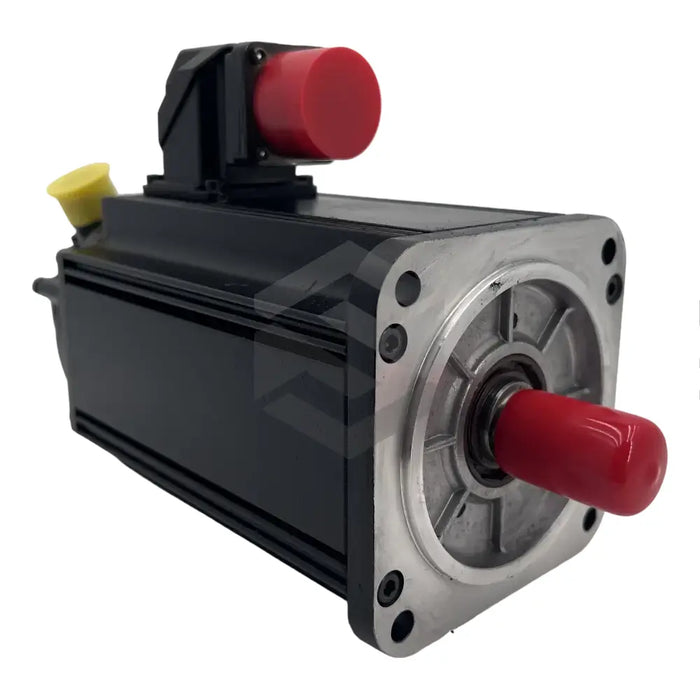

MDD071B-N-040-N2S-095PA0

Original price $7,029.75 - Original price $7,029.75
Original price
$7,029.75
$7,029.75 - $7,029.75
Current price $7,029.75
In Stock, Ships 3 - 5 Days
Request a quote
The MDD071B-N-040-N2S-095PA0, a digital AC servo motor, is a product of Bosch Rexroth Indramat, one of the top innovators in motion control technology. As part of the MDD line, this servo motor is designed to offer high torque density and has obtained a significant level of protection with an IP65 rating, making it ideal for demanding industrial settings crowded with dust and pollution. It is optimized for surface cooling through natural convection but supports the use of an external cooling fan if installed in tightly-packed spaces. Capable of running at 4,000 RPM, it exhibits high synchronous operation characteristics due to the sinusoidal application of current. Other specifications include a 95mm centering diameter and a torque-inertia ratio that assures high dynamics. It has a manageable weight of 8.8 kg, a thermal time constant of 45 minutes and a functional temperature scope falling between 0 and 40 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MDD Servo Motors
  • Model: MDD071B-N-040-N2S-095PA0
  • Housing Protection Level: IP65
  • Cooling Type: Surface cooling through natural convection
  • Rated Speed: 4000 revolutions per minute
  • Mounting Orientation: Any direction; frequent mounting and dismounting not recommended
  • Centering Diameter: 95mm
  • Peak Torque Utilization: Wide speed range
  • Mass: 8.8 kg
  • Thermal Time Constant: 45 minutes
  • Operating Temperature Range: 0 to 40 degrees Celsius
  • Storage Temperature Range: -20 to +80 degree Celsius.
