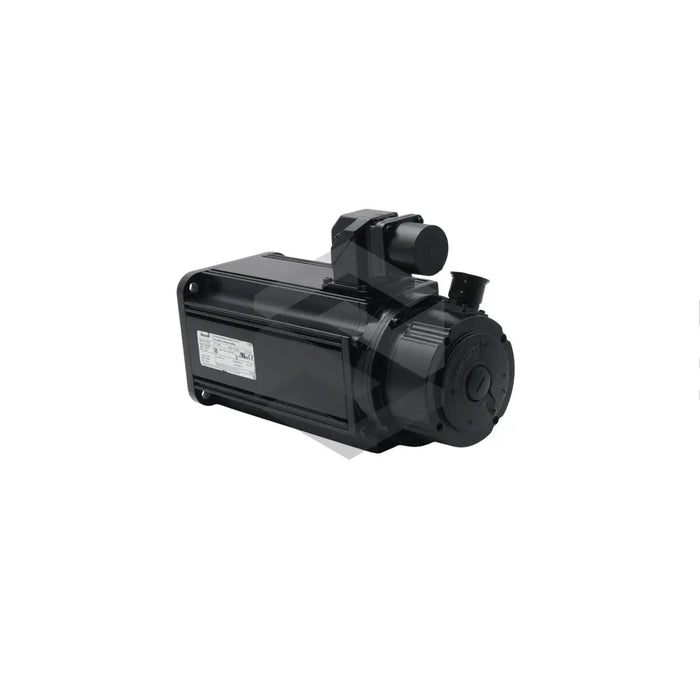

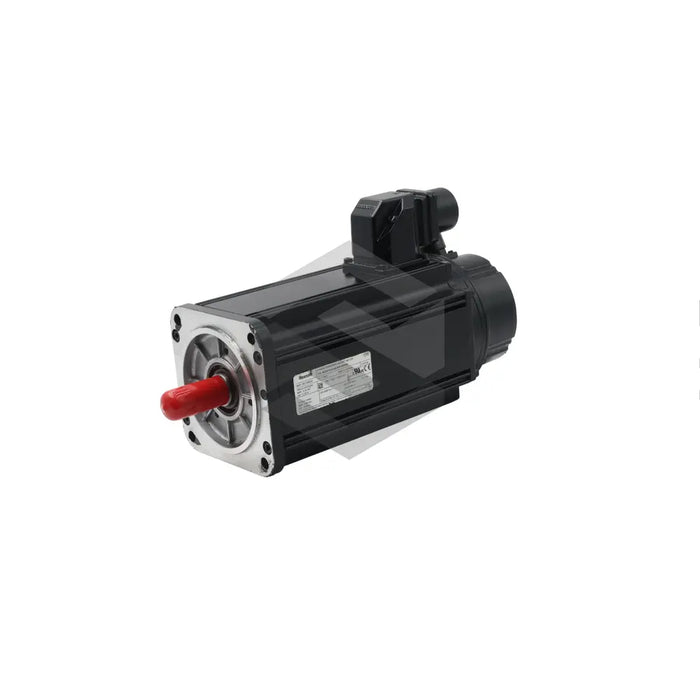

MDD071B-N-040-N2S-095PR1
The MDD071B-N-040-N2S-095PR1 is a synchronous servo motor produced by Bosch Rexroth Indramat for the MDD Synchronous Motors series. Designed for operation with digital drive controllers, the unit converts commanded current into precise rotary motion for pick-and-place modules, light machining spindles, and indexing tables in industrial automation. Its mounting pattern and electrical connections follow the established MDD format, so it fits common multi-axis machine layouts without requiring special mechanical adaptation. The motor is intended for closed-loop motion tasks where stable speed and position response are required.
Its continuous standstill torque is 4.4 Nm, allowing the axis to hold rated loads without overheating during stationary operation. At nominal conditions, the rotor reaches 4000 rpm, which gives the motor a high operating speed for compact automation axes. A centering pilot of 95 mm locates the flange accurately on mating surfaces, helping maintain alignment between the motor and the driven mechanism. The motor uses a right-side cable exit, which can simplify routing in narrow enclosures. Encoder signals are returned through digital servo feedback, allowing the controller to maintain closed-loop speed and position control.
An integrated holding brake provides 3.0 Nm of static torque to resist back-drive when power is removed. Motor power reaches the windings through an industrial connector, which keeps the electrical interface compact and secure. Mechanical torque is transmitted through a shaft with a keyway, and a fitted shaft seal helps protect the bearing area from splash and dust. The shaft is supplied in a standard single-ended form, so there is no extension on side B. The active components are built in motor size 071, and the B-length housing gives the unit the axial proportions used for this frame.
