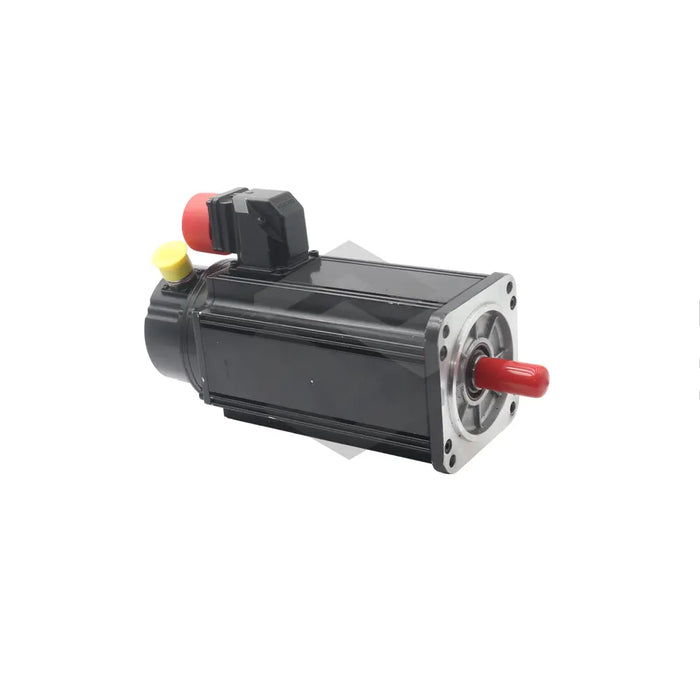

C image of MDD071B-N-040-N2T-095PB1 | Front Right

MDD071B-N-040-N2T-095PB1

by Bosch Rexroth Indramat
$2,314.94 - $2,314.94
$2,314.94
$2,314.94 - $2,314.94
$2,314.94

In Stock, Ships 1 - 3 Days

The MDD071B-N-040-N2T-095PB1 digital AC servomotor, produced by Bosch Rexroth Indramat, provides a high-speed cutting solution predominantly for roller feeds. The unit, which is crafted with low inertia, owing to the materials used in creating its permanent magnets, has a size code of 071 and boasts a brushless design. This device uses a temperature sensor within its windings for monitoring heat levels and its parts are protected from contact with any high-voltage components by its housing and covers. A RAL 9005 coated housing ensures the motor can function under weatherproofed conditions when stationary. The shaft-hub connection point of the motor experiences multi-axial stress and it has a continuous torque of 4.4Nm at standby, cooled by natural convection. Installation is done either horizontally or vertically as postulated by DIN IEC 34-7 specifications. While using the product, maintenance and clean-up should only be performed after disconnecting from the power supply.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital AC Servomotor

MDD071B-N-040-N2T-095PB1 Purpose

Used for highspeed cutting, especially in roller feeds

Inertia

Low

Design

Brushless

Size Code

071

Monitoring

Temperature sensor in windings

Connection

Manufacturers cables recommended

Installation Elevation

Maximum 1000m over sea level

Protection

Covers and housing against high voltage contact

Housing Coat

RAL 9005

Operating Conditions

Weatherproofed stationary function per Class 3M1 and EN 60721-3-3 specifications

Mounting

Shock-damped, depends on installation machine, options for horizontal and vertical as per DIN IEC 34-7 specifications

Shaft End

Standard Side B

Torque

Continuous 4.4Nm at standstill with natural convection cooling

Shaft-Hub Connection

Multi-axial stress state, radial and axial forces must not exceed maximum limit

Cleaning/Maintenance

Motor should be disconnected from power supply

Reseating Process Speed

Approximately 100rpm

Power Connector Output Direction

B side

Error Control

Drive controller triggers error message during thermal shutdown.
