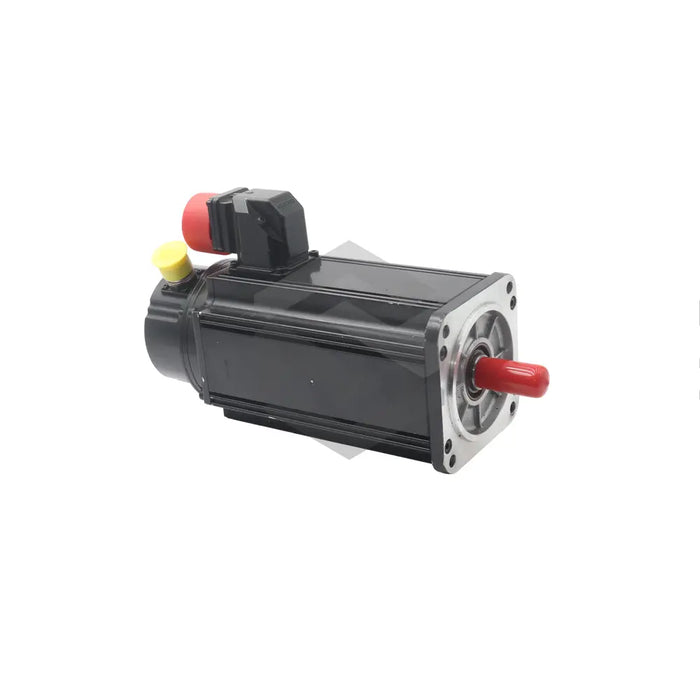

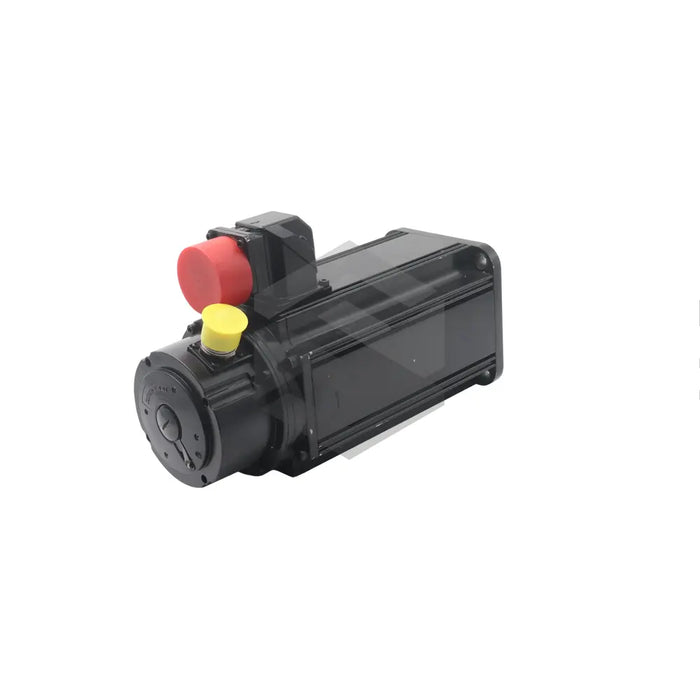

MDD071B-N-060-N2T-095GB1
Bosch Rexroth's MDD071B-N-060-N2T-095GB1 is a lightweight digital AC servomotor designed for applications such as nibbling, punching and pressing machines. The compact unit, with its standard motor housing, operates via surface cooling or natural convection. It uses an inductive system measurement principle in its encoder, with system accuracy within +/-7 angular minutes. Operational details are displayed in torque and speed curves, revealing a drop in maximum torque based on the DC bus voltage of the related drive controller. The encoder also gives an indirect absolute position reading. The motor's housing is fully sealed, with IP 65 protected cables, and incorporates a temperature sensor to prevent overheating. With a centering diameter of 95mm, the MDD071B-N-060-N2T-095GB1 servomotor efficiently conducts heat from the stator to the outer wall of the motor housing. It offers high synchronization and comes with a one-year warranty. The blocking brake can secure the output shaft in standstill position. The motor's winding resistance is 0.37 Ohms and its torque constant is 0.29Nm/A at 20°C.
