MDD071B-N-060-N2T-095PB0

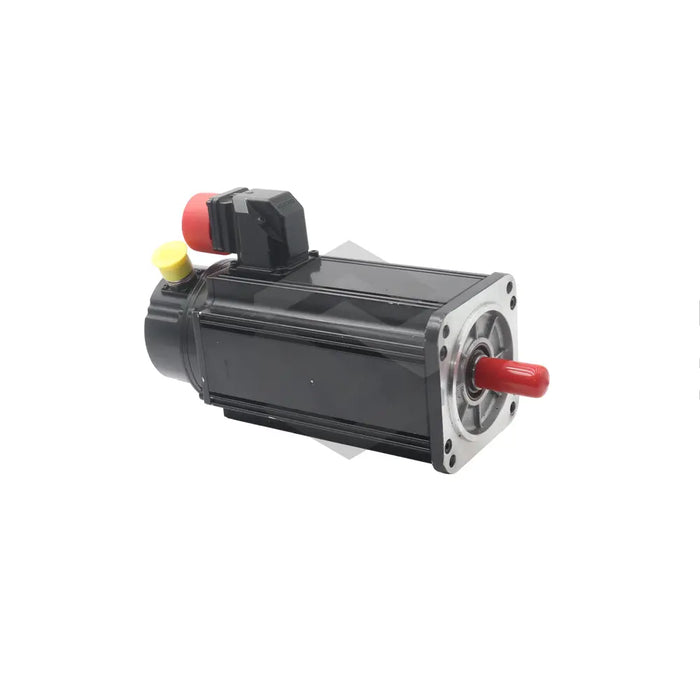

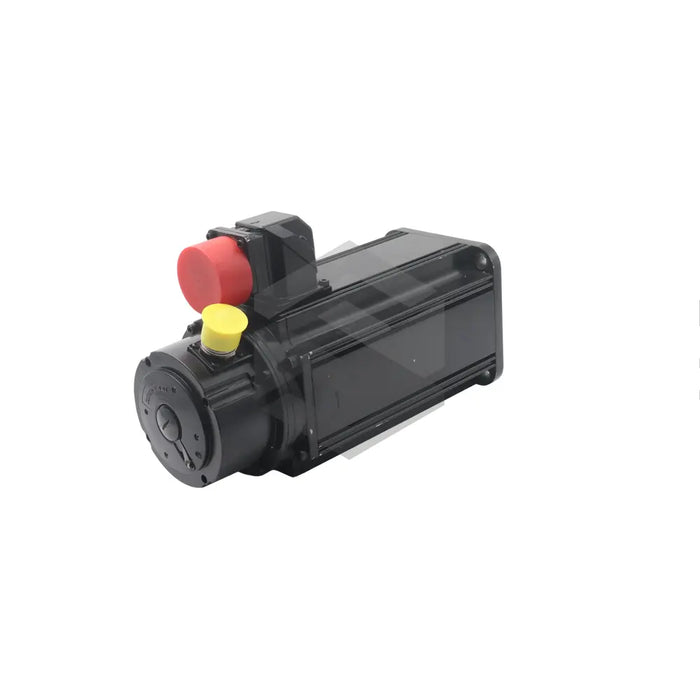

The MDD071B-N-060-N2T-095PB0 is a synchronous servo motor manufactured by Bosch Rexroth Indramat as part of the MDD Synchronous Motors series. Designed for operation with digital drive controllers, this motor converts regulated electrical power into precise rotary motion for pick-and-place modules, small gantries, and other position-controlled axes in automated equipment. It is intended for compact automation cells where accurate speed control, repeatable positioning, and reliable response are needed through frequent start-stop cycles.
Its nominal speed of 6000 rpm allows rapid indexing where cycle time is critical, while a continuous standstill torque of 4.4 Nm supports load holding without overheating. Mechanical alignment is aided by a centering diameter of 95 mm, and the rotor uses a standard balancing grade to help reduce vibration at high speed. All power and feedback leads exit on side B of the housing through a sealed connector, which helps keep cable routing organized on multi-axis machines. A shaft seal protects the bearings from coolant or oil, and the keyway shaft provides positive mechanical coupling to gears or pulleys. The housing and motor size 071 keep the overall footprint compact for tight mounting pockets.
Position data from an integrated multi-turn absolute encoder is transmitted as digital servo feedback (DSF), giving the controller immediate knowledge of rotor angle over multiple revolutions. Because the motor is supplied without a blocking brake, applications that require static holding must rely on drive-controlled torque or external clamps. The keyway shaft profile supports straightforward coupling alignment, and the standard design without a side B shaft end leaves the rear face free for cable routing. The overall axial dimension uses motor length code B, balancing thermal mass with available machine space. A standard housing finish supports use in typical industrial machine layouts.
