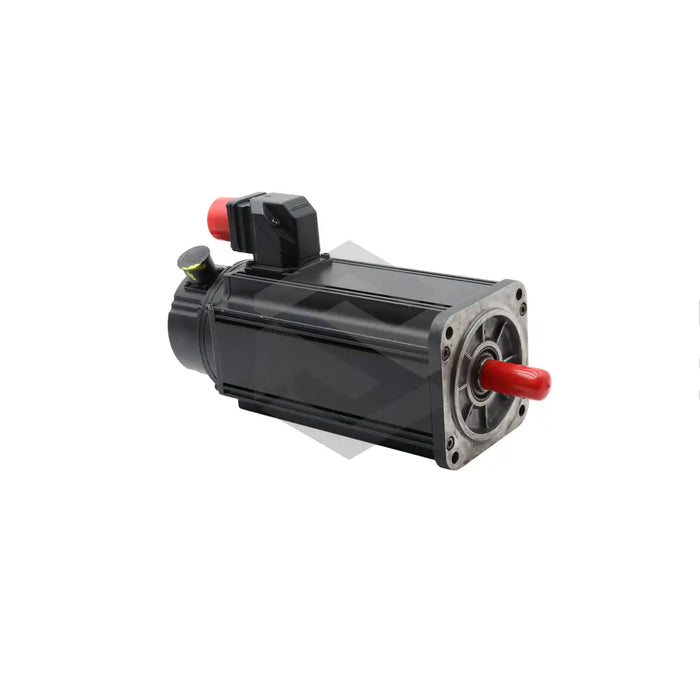

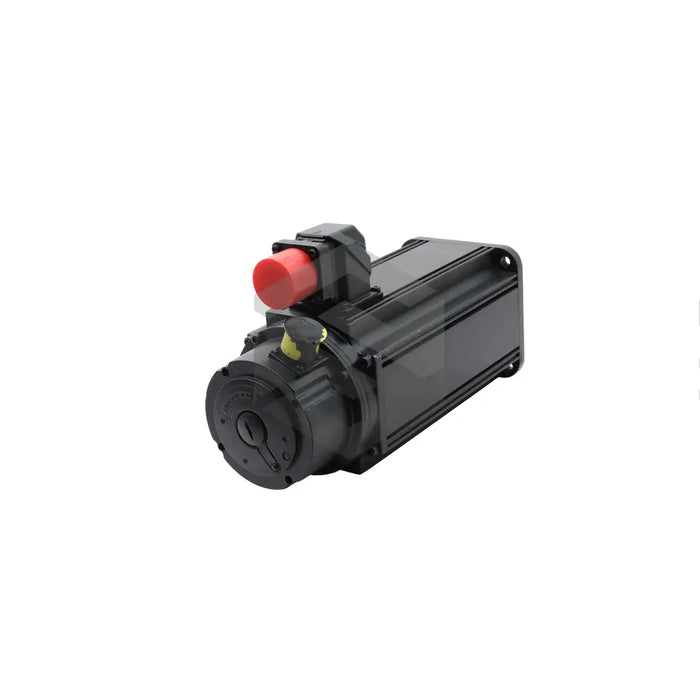

MDD071C-N-030-N2L-095GA0
The MDD071C-N-030-N2L-095GA0 is a motor for digital drive controllers manufactured by Bosch Rexroth Indramat within the MDD Synchronous Motors series. It is a three-phase, permanently excited servo unit intended to translate modulated drive output into repeatable rotary motion in pick-and-place axes, packaging equipment, and general automation cells. When paired with a compatible drive, the motor supports closed-loop torque and speed control for accurate axis movement. Its design suits applications that need stable response during frequent starts, stops, and speed changes across repetitive duty cycles.
The motor provides a continuous standstill torque of 6.6 Nm, which supports the load during static positioning tasks without excessive heating. Its rated speed reaches 3000 rpm, allowing fast indexing cycles in automated machinery. A centering shoulder measuring 95 mm helps align the motor with gearboxes or machine plates, and all power and feedback conductors exit on side A for straightforward cable routing in compact enclosures. Motion feedback is supplied through Digital servo feedback (DSF), which gives the drive position information for precise speed and position control. The shaft passage is guarded with a shaft seal, which helps retain internal lubrication and reduce the entry of airborne particles.
A molded connector interface handles the electrical terminations and provides a direct connection point for the motor leads. The output end uses a plain shaft for couplings or pulleys, and the design omits a second shaft on side B to save space. The motor is supplied without a blocking brake, so holding torque must be provided by the drive or by an external mechanical device when power is removed. Rotor balance is set to the standard grade, and the housing finish suits common industrial mounting environments. This layout supports compact installation where rear clearance is limited.
