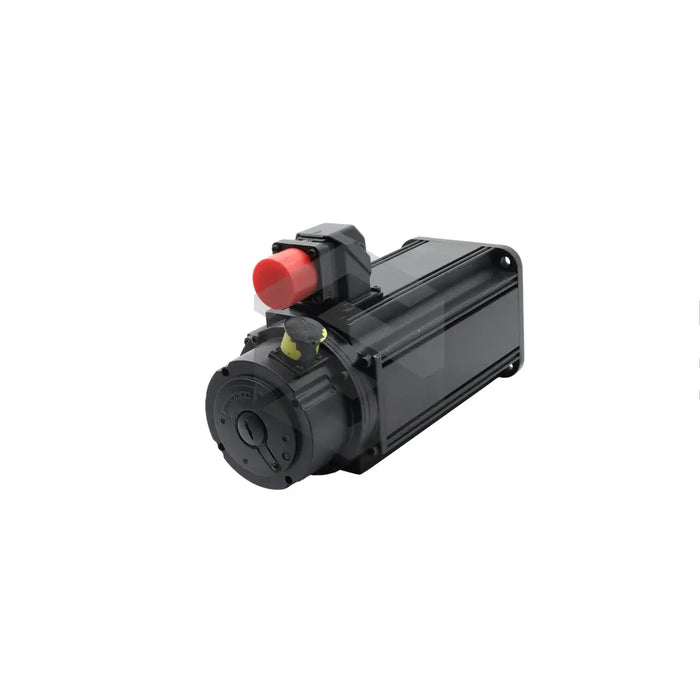

subseries image of MDD071C-N-030-N2L-095GA1

MDD071C-N-030-N2L-095GA1

by Bosch Rexroth Indramat
$9,800.00 - $9,800.00
$9,800.00
$9,800.00 - $9,800.00
$9,800.00
Available, Shipping Varies
The MDD071C-N-030-N2L-095GA1 is an AC digital servo motor from Bosch Rexroth Indramat, renowned for its innovative work in sustainable automated systems. The MDD071C model signifies precision through a digital servo feedback system and runs at a consistent speed of 3,000 rpm. Housed in a prime black coated shell, the motor withstands harsh conditions by preventing yellowing or chalky build-ups and resisting diluted acids. The robust housing supports natural convection and standard balancing, along with a centering diameter of 95mm, allows the motor to retain balance during mounting. The plain output shaft facilitates direct connection with the driven pulley or pinion. On the A side, you can find power connectors and a blocking brake generating 3 Nm when released. The motor operates reliably up to 1000 meters above sea level, produces a maximum torque of 20.5 Nm consuming 48.6 A current, and weighs just 11 kg. This model also offers a winding inductance of 5.9 mH in a radiation-free space and can generate a continuous 6.6 Nm torque consuming 10.8 A at a standstill. It can be ordered with or without a blocking brake.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MDD Series Role: Developing sustainable and reliable automated systems
  • Model: MDD071C-N-030-N2L-095GA1
  • Housing: Perfectly sealed, optimized for natural convection
  • Housing Coating: Prime black coat
  • Motor Type: Digital AC servo motor
  • Servo Feedback System: Digital
  • Speed: 3,000 revolutions per minute
  • Centering Diameter: 95mm
  • Output Shaft: plain
  • Power Connectors: At the A side of motor
  • Blocking Brake: Produces 3 Nm of torque when released
  • Max Site Altitude: 1000 meters above sea level
  • Max Torque: 20.5 Nm
  • Current Consumption: 48.6 A
  • Mass: 11 kg
  • Winding Inductance: 5.9 mH
  • Continuous Torque at Standstill: 6.6 Nm
  • Standstill Current Consumption: 10.8 A
