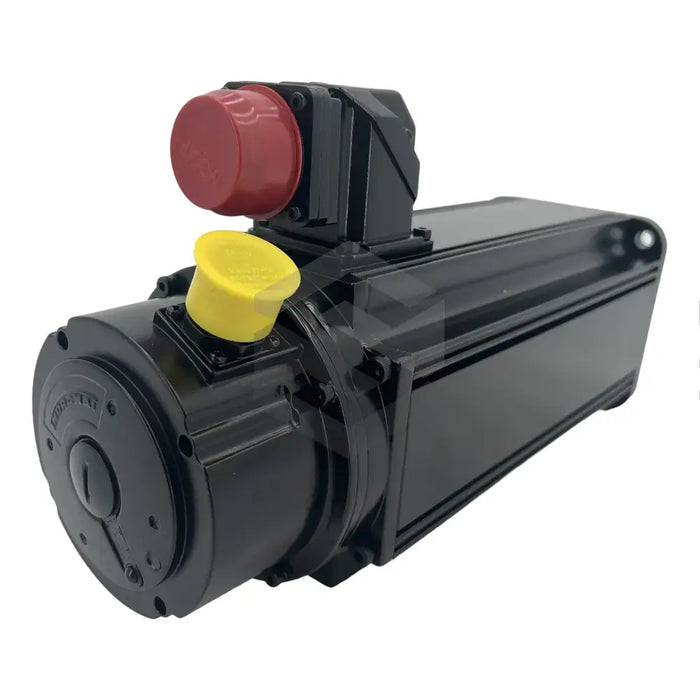

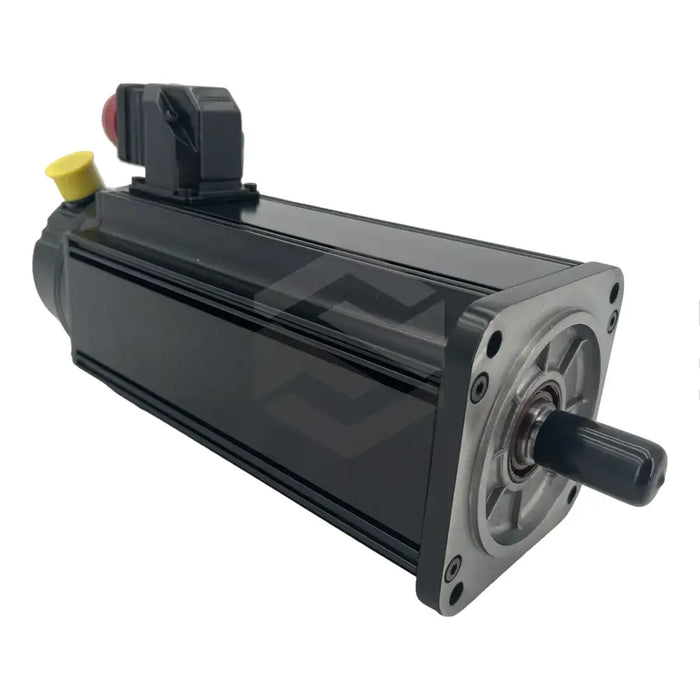

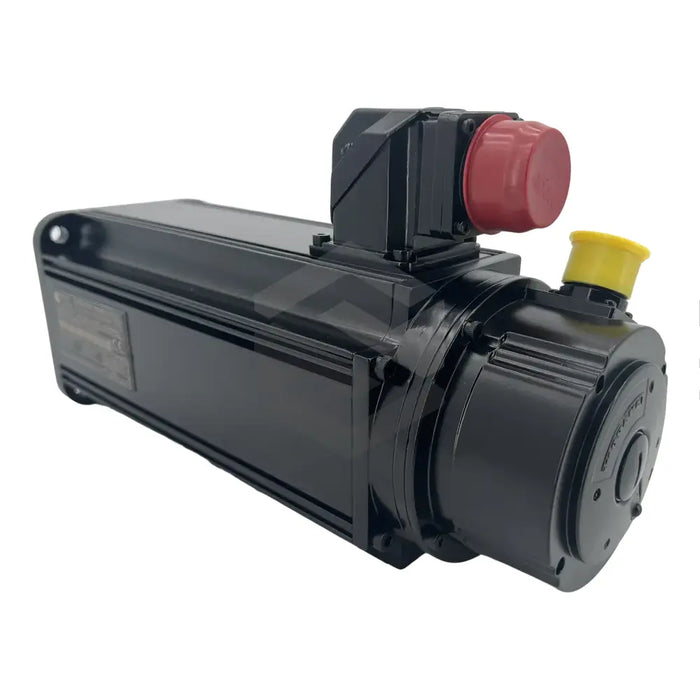

MDD071C-N-030-N2L-095GB1
The MDD071C-N-030-N2L-095GB1 is a synchronous servo motor manufactured by Bosch Rexroth Indramat within the MDD Synchronous Motors series. Intended for pairing with digital drive controllers, it converts controlled three-phase power into precise rotary motion for industrial automation cells, packaging equipment, and light material-handling stages. With motor size 071 and length code C, the assembly fits compact machine envelopes while the standard housing transfers heat through its flange to the mounting structure.
At a continuous standstill torque of 6.6 Nm, the rotor can support loads without displacement while the drive maintains rated current. Under command, the unit accelerates to a nominal speed of 3000 rpm, matching applications that require repeatable cycle times and steady motion control. When power is removed, a blocking brake applies 3.0 Nm of static torque to help secure vertical or suspended mechanisms. The centering pilot measures 95 mm in diameter and keeps the motor aligned concentrically with adjoining mechanics to reduce runout at the coupling. Position and velocity are reported through Digital servo feedback, allowing the controller to regulate speed and position during frequent starts, stops, and interpolated moves.
The mechanical interface uses a plain shaft, which omits a secondary output on side B and helps keep the overall length compact. A fitted shaft seal helps prevent lubricant migration and particulate ingress at the output journal during normal operation. Rotor mass is trimmed using standard balancing, which helps limit residual vibration across the speed range. Electrical hookup is completed with a keyed connector that combines power and signal pins in one connection point. Cabling exits on side B through a molded connection, and the single-ended shaft layout leaves more room around the coupling area in compact machine assemblies.
