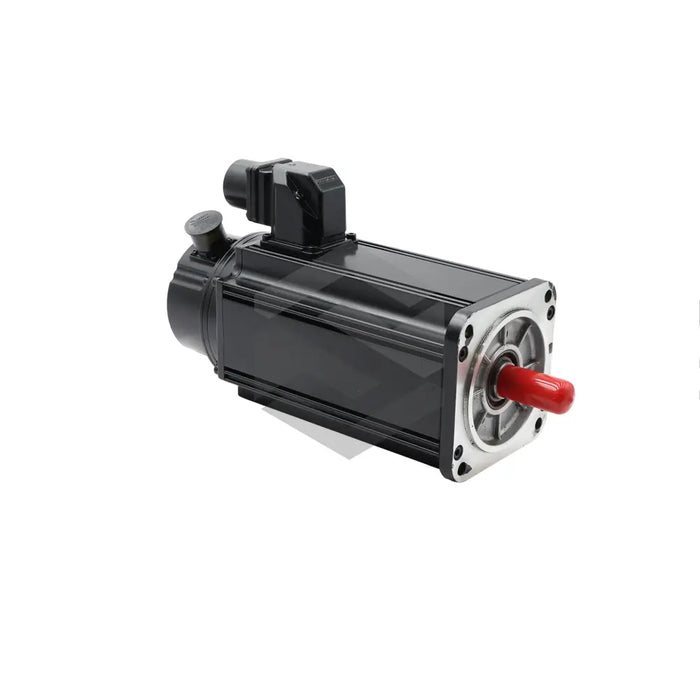

MDD071C-N-030-N2S-095GL0

Request a quote
Produced by Bosch Rexroth Indramat, the MDD071C-N-030-N2S-095GL0 is a servo motor that operates at a nominal speed of 3000 RPM. It comes without a blocking brake, though the company offers braking options with holding torques of 3.0 Nm and 6.5 Nm. Buyers can select the motor power connection direction when ordering. This specific model has a power connection located on the left. Its frame size is 071 and it features a standard C length frame. The main shaft is unadorned, and the rotor's moment of inertia is calculated at 0.00119 kg m2. The motor provides standing continuous torques of 6.6 Nm (naturally cooled) and 9.9 Nm (surface cooled) with respective currents of 10.8 Amps and 16.2 Amps. Capable of producing a theoretical peak torque of 20.5 Nm and peak current of 48.6 Amps, its winding resistance and torque constant are recorded at 20 degrees Celsius. It's built with a digital servo feedback and a centering diameter of 95mm. Approved Bosch applications and accessories are recommended for use with this motor.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Model: MDD071C-N-030-N2S-095GL0
  • Nominal Speed: 3000 RPM
  • Blocking Brake: Not included
  • Motor Power Connection Direction: Left
  • Frame Size: 071
  • Frame Length Code: C
  • Main Shaft Type: Plain
  • Motor Rotor Moment of Inertia: 0.00119 kg m2
  • Natural Convection Cooling - Continuous Torque at Standstill: 6.6 Nm
  • Natural Convection Cooling - Continuous Current at Standstill: 10.8 Amps
  • Surface Cooling - Continuous Torque at Standstill: 9.9 Nm
  • Surface Cooling - Continuous Current at Standstill: 16.2 Amps
  • Peak Torque: 20.5 Nm
  • Peak Current: 48.6 Amps
  • Resistance of Motor Windings at 20 degrees Celsius: 0.85 Ohms
  • Torque Constant at 20 degrees Celsius: 0.61 Nm/A
  • Feedback Type: Digital Servo
  • Centering Diameter: 95 millimeters.
