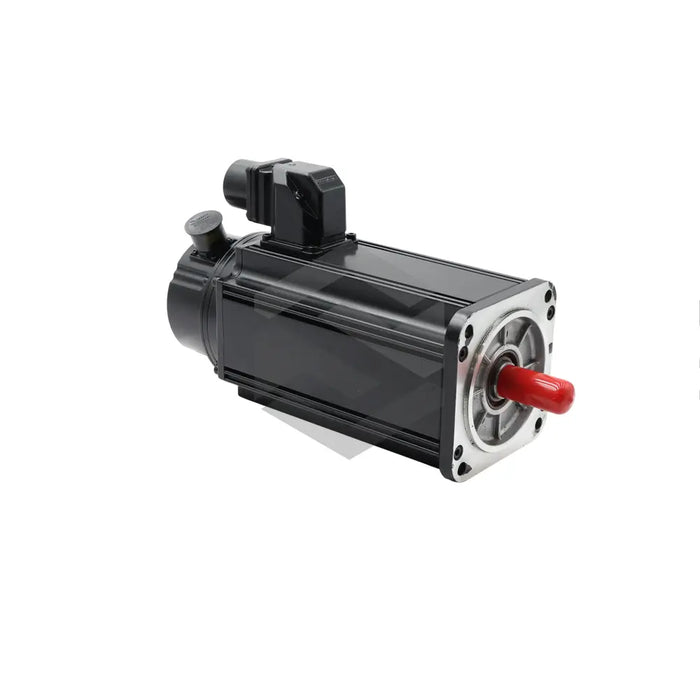

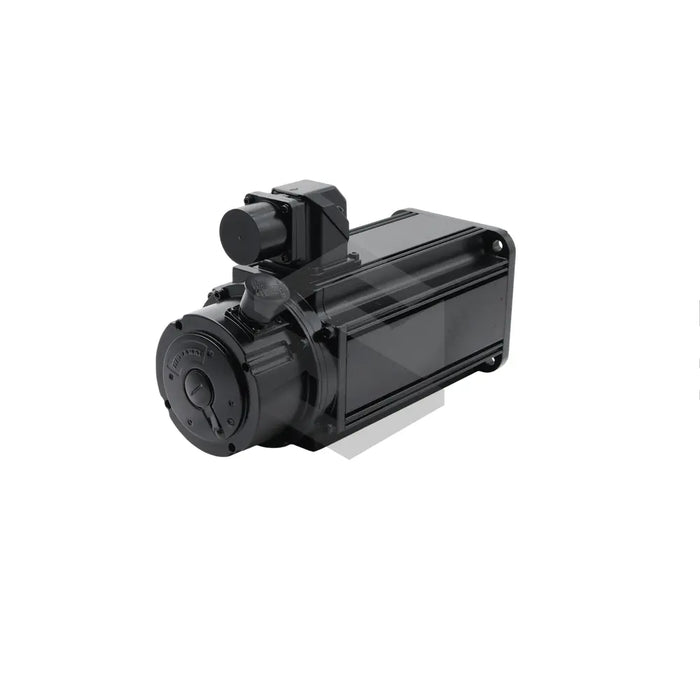

MDD071C-N-030-N2S-095GL1
The MDD071C-N-030-N2S-095GL1, created by Bosch Rexroth Indramat, is an 11-kg synchronous motor belonging to the MDD series. Equipped with an electrically-released holding brake and outstanding data performance, this motor is ideal for high-density power operations. It guarantees efficient contouring accuracies at high feed rates thanks to its permanent-magnet excitement mechanism using iron oxide or rare-earth magnetic materials. The motor has a centering diameter of 95 mm, a standard housing design, a plain output shaft, and runs at a nominal speed of 3000 RPM. With a sealed IP65 protection class housing, it requires no maintenance and has a brushless design. It has a 3 Nm torque holding brake with a 0.6 Amps current and DC 24 Volts voltage. The MDD071C-N-030-N2S-095GL1 works best in -20 to 80 degrees C, can operate up to 1000 meters elevation, and is part of the insulation class F, allowing a temperature rise of 105 oC and windings temperature of 155 oC.
