series image of MDD071C-N-030-N2S-095PA0

MDD071C-N-030-N2S-095PA0

by Bosch Rexroth Indramat
$3,043.02 - $3,043.02
$3,043.02
$3,043.02 - $3,043.02
$3,043.02
In Stock, Ships Today

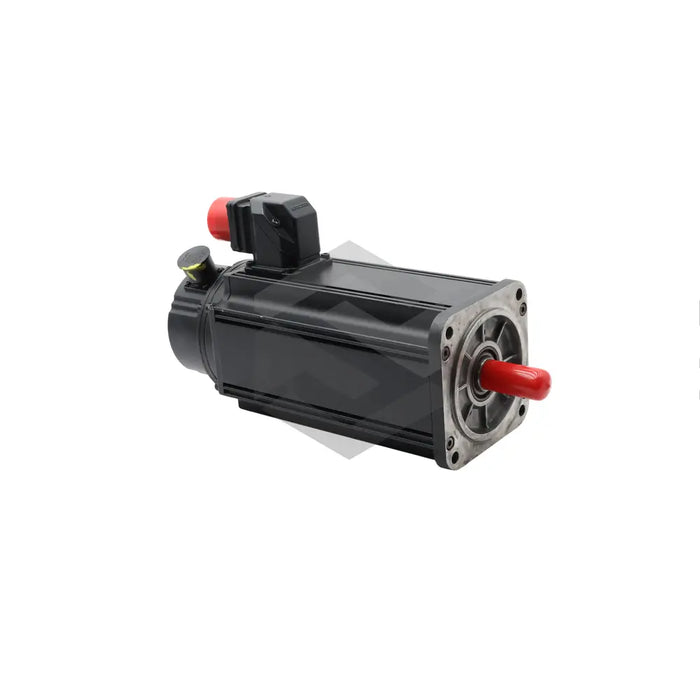

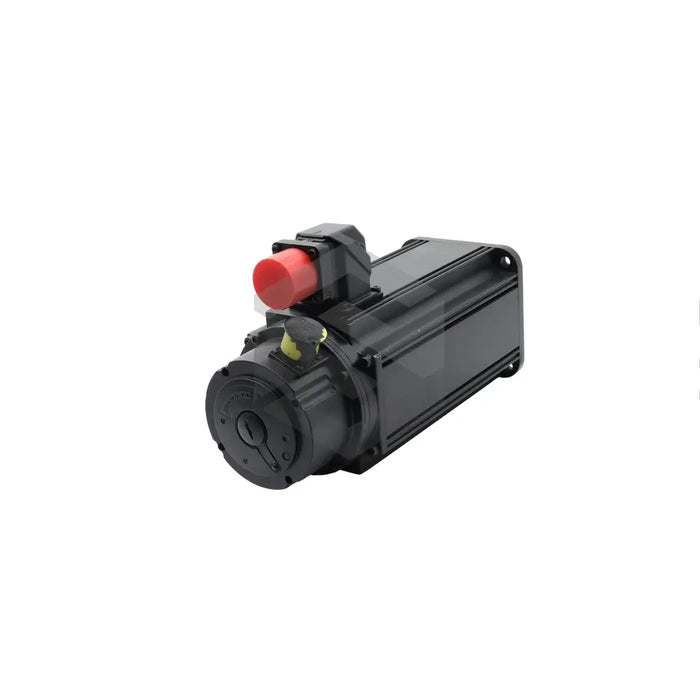

The MDD071C-N-030-N2S-095PA0 is a compact AC servo motor from the MDD series by Bosch Rexroth Indramat, designed for automated systems. Capable of reaching a nominal speed of 3,000 RPM and a maximum theoretical torque of 20.5Nm, it is highly efficient and dependable. Its brushless design and lifelong lubricated bearings result in reduced wear and tear, promoting maintenance-free operation. The motor's unique bearing assembly allows high radial loads, and its shaft features a keyway per DIN 6885-1 for solid torque transmission, as well as a sealing ring protecting against liquid intrusion. It offers high cyclic load capacity due to its electronic commutation, ensuring durability in start-stop operations. The motor’s digital servo feedback encoder supports system accuracy of ±0.5 angular minutes and faster startup times thanks to onboard data storage. With an IP 65-rated housing, it excels in adverse environmental conditions.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MDD Synchronous Servo Motors
  • Product Model: MDD071C-N-030-N2S-095PA0
  • Nominal Speed: 3000 revolutions per minute
  • Theoretical Maximum Torque: 20.5 Nm
  • Design: Brushless
  • Bearing Lubrication: Lifetime
  • Shaft Type: With keyway per DIN 6885-1
  • Sealing Ring: Present
  • Electronic Commutation: High cyclic load capacity
  • Encoder Type: Digital servo feedback
  • Encoder System Accuracy: ±0.5 angular minutes
  • Data Storage: Present
  • Housing: IP 65-rated sealed housing.
