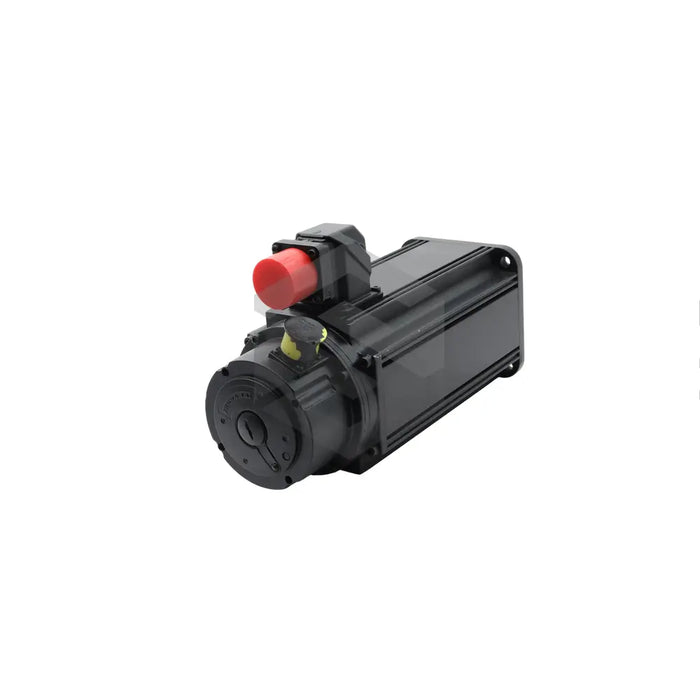

S image of MDD071C-N-030-N2S-095PA2

MDD071C-N-030-N2S-095PA2

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MDD071C-N-030-N2S-095PA2 is a high-performance AC servo motor developed by Bosch Rexroth Indramat. Recognized as a brushless synchronous motor, it adopts digital commutation to switch between electric phases, eliminating the need for brushes. The armature excitement is maintained by permanent magnets. This motor has a nominal speed of 3000 rpm and a maximum current capacity of 48.6 amperes. Under ideal conditions, it can generate a torque of up to 20.5 Nm. The motor boasts low-resistance and low-inductance windings, suitable for optimal performance at 20 degrees Celsius. Physical dimensions include a length of 316 mm, a centering diameter of 95 mm, and a weight of 11 kg. This motor offers a blocking brake capacity of 6.5 Nm, a digital servo feedback system without integrated encoder, and keyway-designed output shaft per DIN 6885 standards. Best suited for industrial automation applications, it's notably used in printing, tooling, and packaging processes.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Electric AC servo motor

Feedback Type

Indramat digital feedback and controller

Commutation Type

Digital

Motor Type

Brushless synchronous motor

Components

Stator windings, Rotor metallic plates, Permanent magnets

Nominal Speed

3000 rpm

Maximum Current

48.6 amperes

Torque Output

20.5 Nm

Winding Characteristics

Low inductance and resistance at 20 degree Celsius

Motor Length

316 mm

Motor Dimensions

95 mm centering diameter

Motor Mass

11 kg

Blocking Brake Capability

6.5 Nm

Motor Housing Design

Standards suitable for natural convection and surface cooling

Motor Feedback Type

Digital servo feedback without integrated encoder

Output Shaft Design

Keyways compliant with standard DIN 6885

Connection Type

Power and feedback connection on A side

Primary Usage

Industrial automation processes

Suitable Industrial Processes

Printing processes, Tooling processes, Packaging industrial processes
