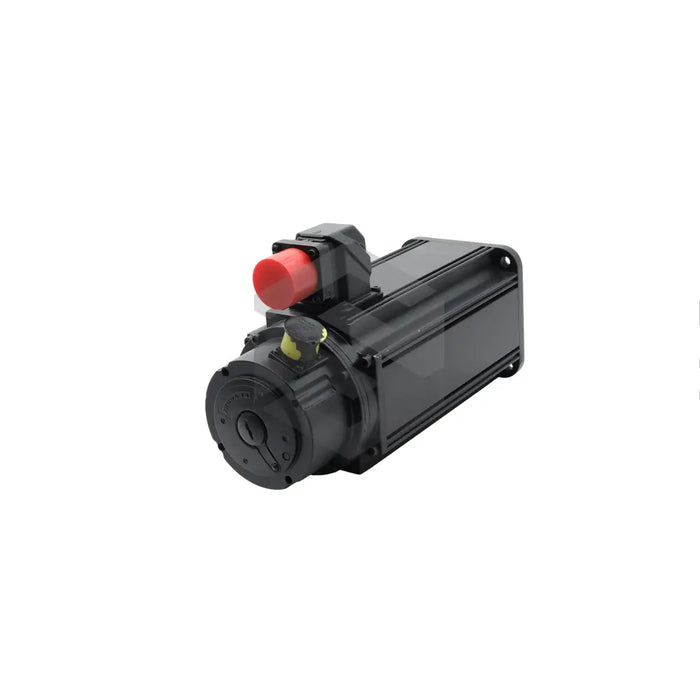

MDD071C-N-030-N2T-095GA1

Request a quote
The MDD071C-N-030-N2T-095GA1 AC servo motor is a top-grade product from the reputable multinational brand, Bosch Rexroth Indramat, known for its innovation in cost-effective, space-efficient, advanced drive systems. This motor features an electrically-released holding brake that generates 3 Nm of torque, operating at DC 24V, with a nominal current consumption of 0.6 A. The servo motor, characterized by its 11kg mass and the capability to deliver 6.6 Nm of continuous torque at standstill, while consuming 10.8 A, can peak up to 20.5 Nm of torque with 48.6 A during heavy loads. The motor is equipped with a digital servo feedback system, ensuring precise and accurate motion. The brushless design, accompanied by lifetime-lubricated bearings contributes to smooth and silent operation sans frequent maintenance. Connectors are conveniently located on the A-side, and the model has a centering diameter of 95mm for straightforward assembly. For easy identification, the type code (MDD071C-N-030-N2T-095GA1) is prominently displayed on the motor.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: AC Servo Motor
  • Model: MDD071C-N-030-N2T-095GA1
  • Family: MDD
  • Installation Altitude: 1000 meters above sea level
  • Holding Brake Torque: 3 Nm
  • Holding Brake Voltage: DC 24V
  • Holding Brake Current: 0.6 A
  • Mass: 11 kg
  • Operation Speed: 3000 revolutions per minute
  • Continuous Torque: 6.6 Nm
  • Continuous Current: 10.8 A
  • Peak Torque: 20.5 Nm
  • Peak Current: 48.6 A
  • Electrical Connectors Position: A-side
  • Centering Diameter: 95mm
  • Output Shaft: Plain
  • Feedback System: Digital Servo
  • Bearings: Lifetime-lubricated
  • Design: Brushless
  • Maintenance: Maintenance-free
