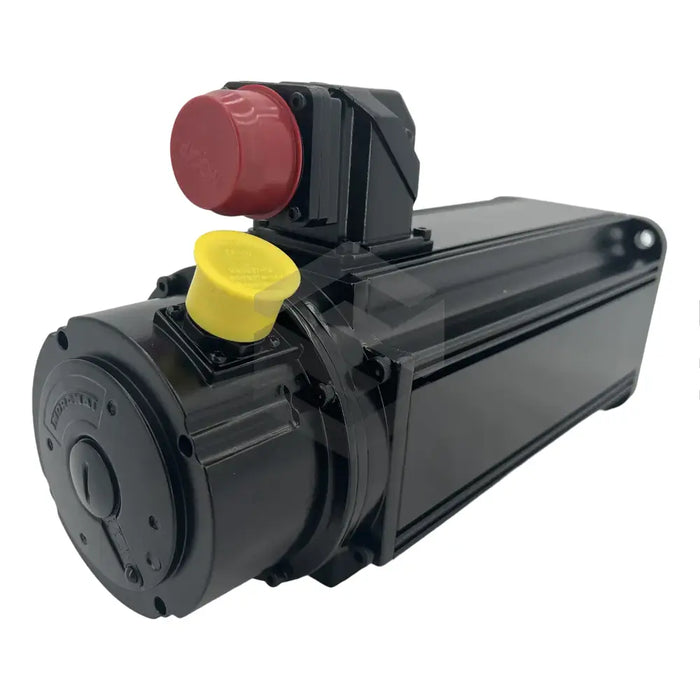

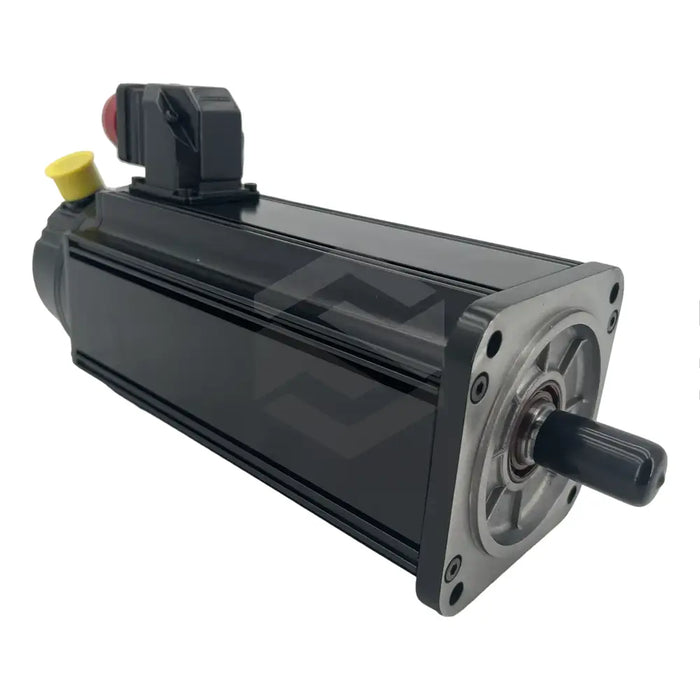

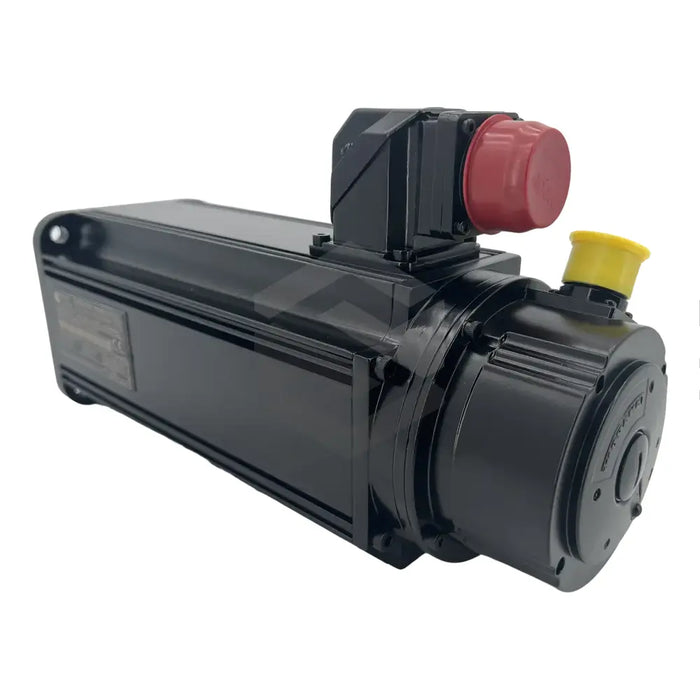

C image of MDD071C-N-030-N2T-095PB2 | Front Right

MDD071C-N-030-N2T-095PB2

by Bosch Rexroth Indramat
$4,800.45 - $4,800.45
$4,800.45
$4,800.45 - $4,800.45
$4,800.45

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MDD071C-N-030-N2T-095PB2 is a digital AC servomotor with a 6.5Nm blocking brake and a weight of 11kg, excluding the brake and blower. The device boasts lifetime-lubricated bearings and high overload capacity due to effective heat conduction from stator windings to the housing exterior. Mounting options include IM B5, IM V1, and IM V3 orientations. With digital servo feedback, it is protected from dangerous contact with high-voltage parts and has an IP 24 protection class blower. The motor features a 0.61Nm/A torque constant at 20°C and can withstand up to 1m/s2 sine-wave acceleration on its longitudinal axis. It requires shock-damped mounting for certain applications and includes a sealing ring around the output shaft. A support period of one year comes as standard. The motor blower, connectors, and angle feedback connector are separate purchases, and the motor allows for the reorientation of the angle feedback connector through the loosening of four screws. An integrated multiturn absolute encoder assists in digital servo feedback.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MDD071C-N-030-N2T-095PB2 Features

Digital AC servomotor

Blocking Brake

6.5Nm

Weight

11kg (without blocking brake and blower)

Lubrication

Lifetime Lubricated Bearings

Overload Capabilities

High due to efficient heat conduction

Mounting Orientation

IM B5, IM V1, IM V3 allowed

Motor Feedback

Digital Servo

Protection

High voltage contact

Protection Class

IP 24 for blower

Torque Constant

0.61Nm/A at 20°C

Acceleration Amplitude

Up to 1m/s2 on longitudinal axis

Shaft Sealing

Ring around the output shaft

Shaft

Position shift with mounted drive pinions

Magnetic Force

Encountered on brake armature disc

Angle Feedback Connector

Orientation changeable via four fixing screws

Angle Connector

Houses screwed cap

Encoder

Integrated multiturn absolute encoder for digital servo feedback

Position Storage

Stored in associated drive controller

Operating Curves

Depict intermittent duty and permissible continuous torques

Delivery

Can be sent to preferred address.
