S image of MDD071C-N-030-N5M-095PA0

MDD071C-N-030-N5M-095PA0

by Bosch Rexroth Indramat
$2,920.88 - $2,920.88
$2,920.88
$2,920.88 - $2,920.88
$2,920.88

In Stock, Ships 1 - 3 Days

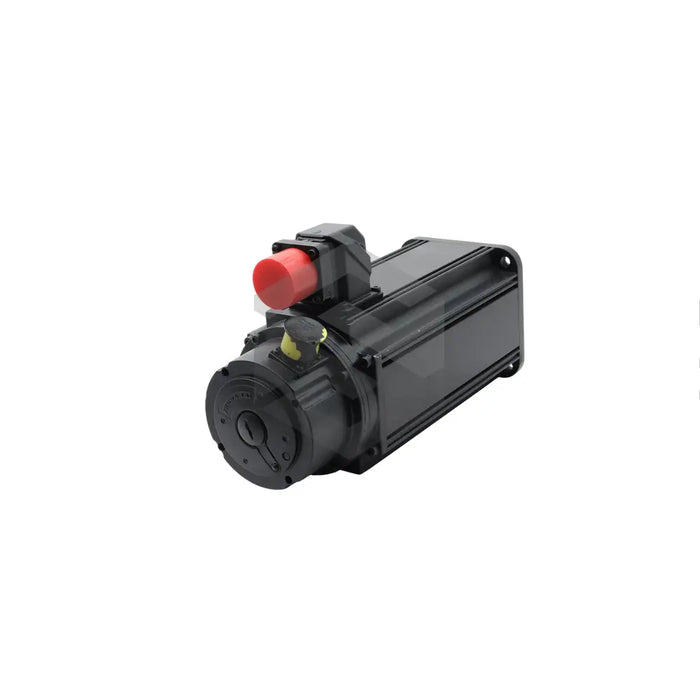

The MDD071C-N-030-N5M-095PA0 is an AC servo motor produced by Bosch Rexroth Indramat, known for its reputable automation products worldwide. This motor, boasting a black prime-coated housing perfect for surface cooling and natural convection, operates at a maximum current of 48.6 amperes, delivering a peak torque of 20.5 Nm at a nominal speed of 3000 min-1. It features a standard shaft and is favored in power-dense applications such as tool-changing devices and roller feeds for nibbling machines. The motor, weighing 11kg, has a winding inductance of 5.9mH, winding resistance of 0.85 Ohm at 20 ?C, and a constant torque of 0.61 Nm/A. Its output shaft possesses keyways for form-fitting shaft-hub connections. Thanks to its compact brushless design and heavy-duty, permanently lubricated bearing, the unit ensures high operational reliability. Classified as insulation F and rated IP 65, the motor operates in ambient temperatures from 0 to +45 °C and at altitudes up to 1000 MSL. Its rotor position, speed, and position are evaluated through digital servo feedback. This model however, does not possess a blocking brake.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MDD071C-N-030-N5M-095PA0

AC Servo Motor Type

Digital

Housing Design

Black Prime-Coated (RAL 9005)

Cooling Type

Surface Cooling and Natural Convection

Maximum Current Consumption

48.6 Amps

Maximum Torque

20.5 Nm

Nominal Speed

3000 min-1

Shaft Type

Standard

Use Cases

Tool-changing Devices, Roller Feeds for Nibbling Machines

Weight

11 Kilograms

Winding Inductance

5.9mH

Constant Torque

0.61 Nm/A

Rotor Moment of Inertia

11.9 x 10-4 kgm2

Shaft Hub Connection

Keyways

Motor Design

Brushless

Bearing Type

Permanently Lubricated

Load Bearing Capacity

High

Insulation Classification

F

Protection Rating

IP 65

Maximum Installation Altitude

1000 MSL

Ambient Temperature Range

0 to +45°C

Blocking Brake

Not Included

Feedback Mechanism

Digital Servo Feedback
