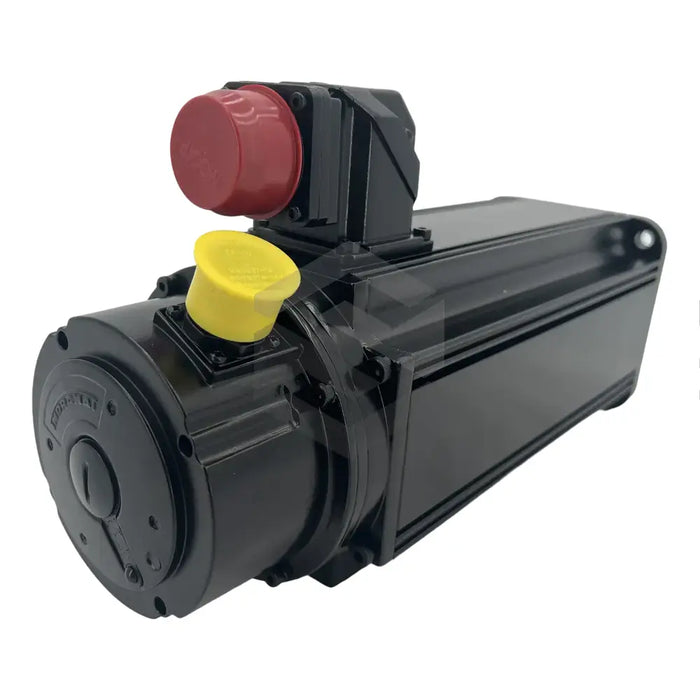

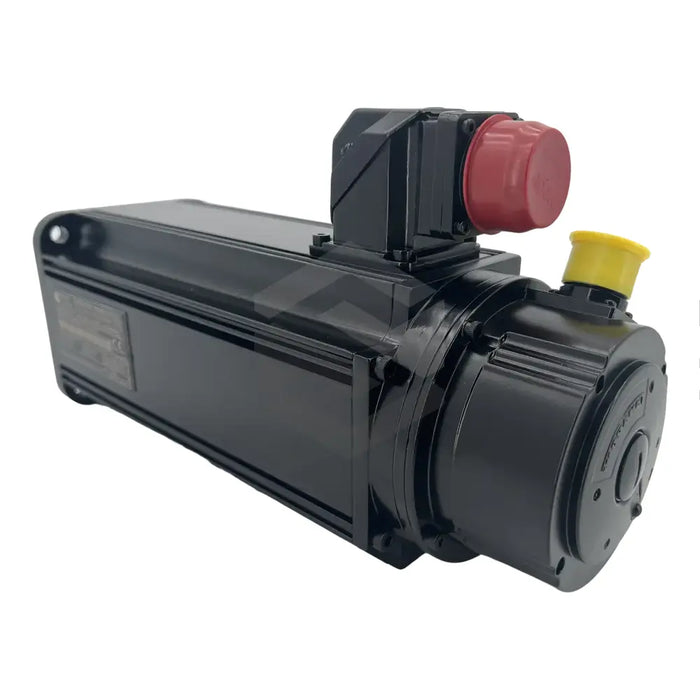

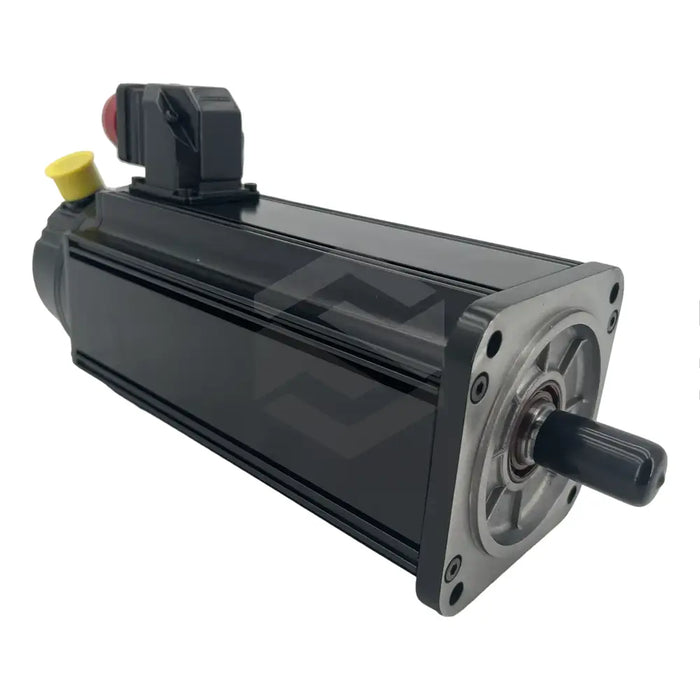

subseries image of MDD071C-N-040-N21-095PB1

MDD071C-N-040-N21-095PB1

by Bosch Rexroth Indramat
$1,320.46 - $1,320.46
$1,320.46
$1,320.46 - $1,320.46
$1,320.46
Available, Shipping Varies
The MDD071C-N-040-N21-095PB1 is a digital AC servo motor designed and manufactured by industry frontrunner, Bosch Rexroth Indramat. Distinguished by its high power density, this motor finds wide utility in diverse industries, extending from robotics to packaging. It is equipped with a keyway-loaded output shaft and a lifetime-lubricated bearing for seamless, maintenance-free operation. It features a holding torque of 3.0 Nm with a blocking brake powered by a 24 VDC source. The rotor position, velocity, and position can be evaluated via digital servo feedback. Notably, the motor possesses a nominal speed of 4000 min-1, producing a maximum torque of 20.5Nm and peak current of 65.9 amperes. The thermal time constant of the 11-kg motor is forty-five minutes, and it maintains an inductance and rotor moment of inertia of 3.4mH and 11.9 x 10-4 kgm2 correspondingly. Suitable for altitudes up to 1000 meters, this motor operates within a temperature range of 0 to 45°C. It is housed in a standard black prime-coated (RAL 9005) design adhering to natural convection and surface-cooling standards. With an IP 65 protection rating, it efficiently resists water and dust ingress.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MDD Model: MDD071C-N-040-N21-095PB1
  • System Components: Drive controller, Servo motors, Frequency converters
  • Output Shaft: Equipped with keyways, Life-time lubricated bearing
  • Blocking Brake: Delivers holding torque of 3.0 Nm, Operates on 24 VDC power source
  • Motor Type: Digital AC Servo Motor
  • Industrial Applications: Robotics, Packaging industry
  • MDD User Manual: Included
  • Flange Mounting Design: B04 and B14
  • Servo Feedback: Detects rotor position, allow evaluation of velocity and position
  • Nominal Motor Speed: 4000 min-1
  • Theoretical Maximum Torque: 20.5Nm
  • Peak Loading Maximum Current: 65.9 amperes
  • Motor Weight: 11 kg
  • Thermal Time Constant: 45 minutes
  • Torque Constant at 20 ?C: 0.45Nm/A
  • Inductance & Moment of Inertia of Rotor: 3.4mH, 11.9 x 10-4 kgm2
  • Ambient Temperature Range: 0? to +45 ?C
  • Altitude: Appropriate for 1000 meters above sea level
  • Housing Design: Standard black prime-coated (RAL 9005)
  • Cooling Standards: Surface-cooling, natural convection
  • MDD071C-N-040-N21-095PB1 Protection Rating: IP 65, resistant against water and dust ingress.
