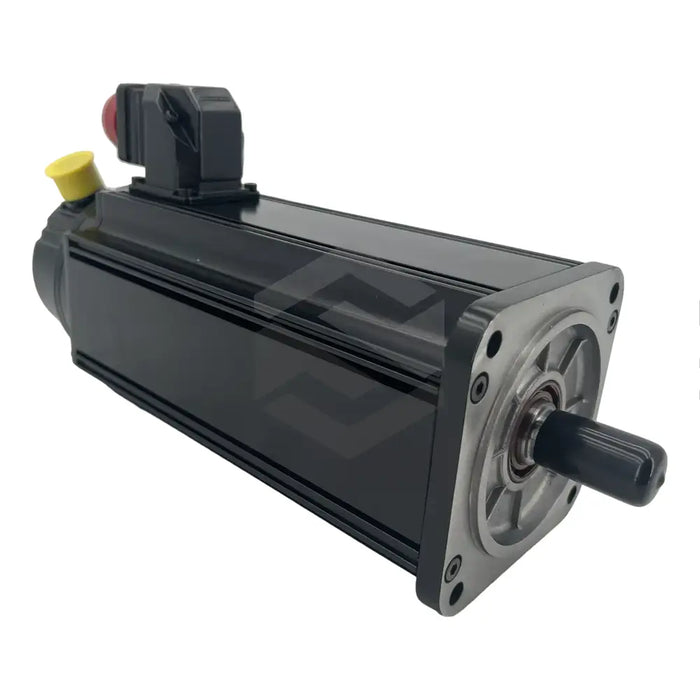

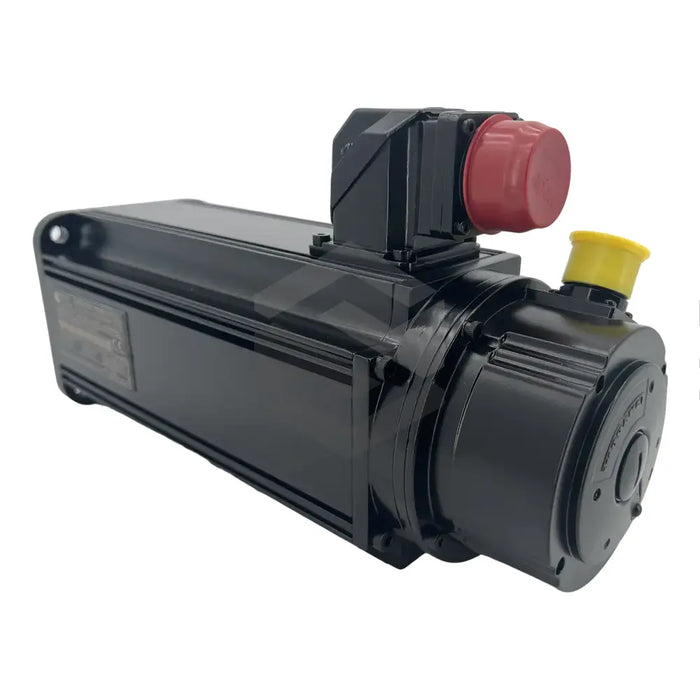

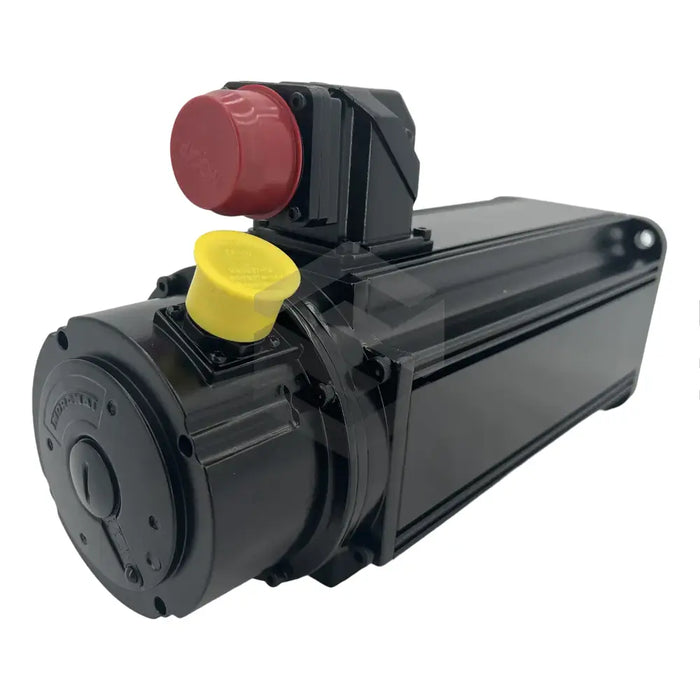

subseries image of MDD071C-N-040-N2M-095GB1

MDD071C-N-040-N2M-095GB1

by Bosch Rexroth Indramat
$2,658.00 - $2,658.00
$2,658.00
$2,658.00 - $2,658.00
$2,658.00
Available, Shipping Varies
The MDD071C-N-040-N2M-095GB1 is a high torque digital AC servo motor by Bosch Rexroth, a premier manufacturer of automation equipment. Uniquely designed for hub and shaft connections that are non-positive, this motor has a peak current requirement of 65.9A. At a weight of 11 kilograms, it supports both natural and forced cooling having a thermal time constant of 45 minutes. It has a blocking brake with a 3.0 Nm rating that functions by electrically-actuated principle. The unit also has built-in digital servo feedback for the detection and evaluation of rotor position, speed and position. With a recommended speed of 4000 min-1, it operates optimally between 0° to +45°C under elevations below 1000 meters. It possesses a flange design for easy installation, a side-B power connector and a centering diameter of 095mm. The model can produce up to 20.5 Nm of torque and requires periodic maintenance for optimal functionality. The motor housing is black prime-coated, promoting surface cooling and natural convection.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital AC Servo Motor
  • Model: MDD071C-N-040-N2M-095GB1
  • Peak Current Requirement: 65.9 amperes
  • Weight: 11 kilograms
  • Cooling Method: Natural and Forced
  • Thermal Time Constant: 45 minutes
  • Blocking Brake Rating: 3.0 Nm
  • Output Shaft: Plain
  • Motor Speed: 4000 min-1
  • Protection Category: IP 65
  • Winding Resistance at 20°C: 0.50 Ohm
  • Winding Inductance: 3.4mH
  • Torque Constant: 0.45Nm/A
  • Rotor Moment of Inertia: 11.9 x 10-4 kgm2
  • Ambient Temperature Range: 0? to +45?C
  • Operation Altitude: Under 1000 meters
  • Housing Design: Black prime-coated (RAL 9005)
  • Connection Type: Flange
  • Power Connectors: Side-B
  • Centering Diameter: 095 mm
  • Maximum Torque: 20.5 Nm
  • Brushless Design: Yes
  • Housing Insulation: Class-F insulation category
