series image of MDD071C-N-040-N2S-095GB0

MDD071C-N-040-N2S-095GB0

by Bosch Rexroth Indramat
$5,100.00 - $5,100.00
$5,100.00
$5,100.00 - $5,100.00
$5,100.00
In Stock, Ships 3 - 5 Days

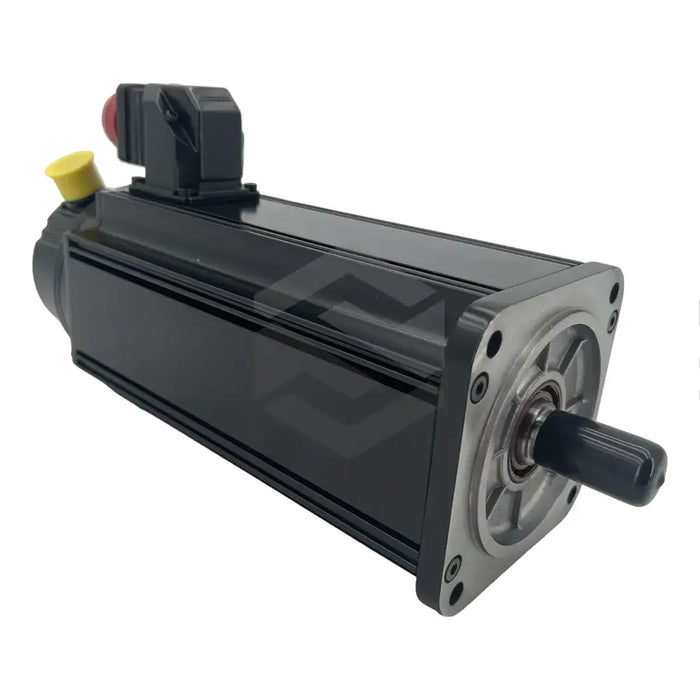

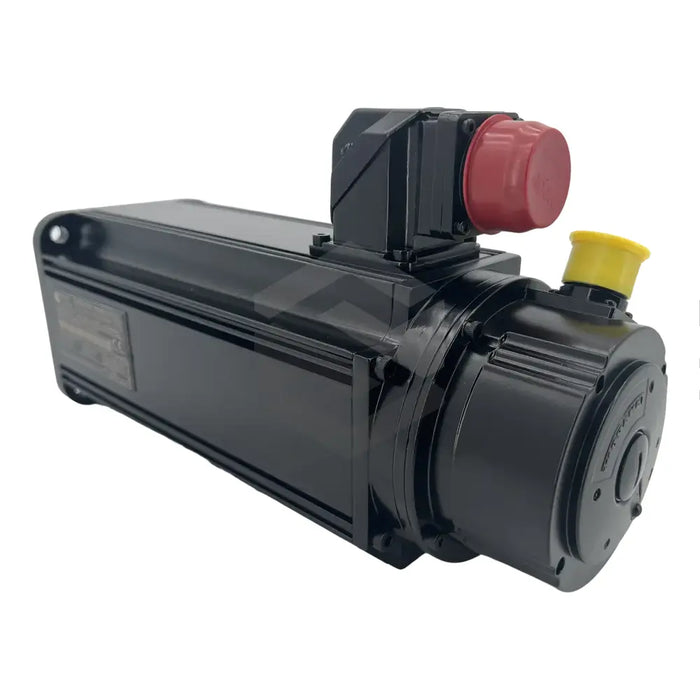

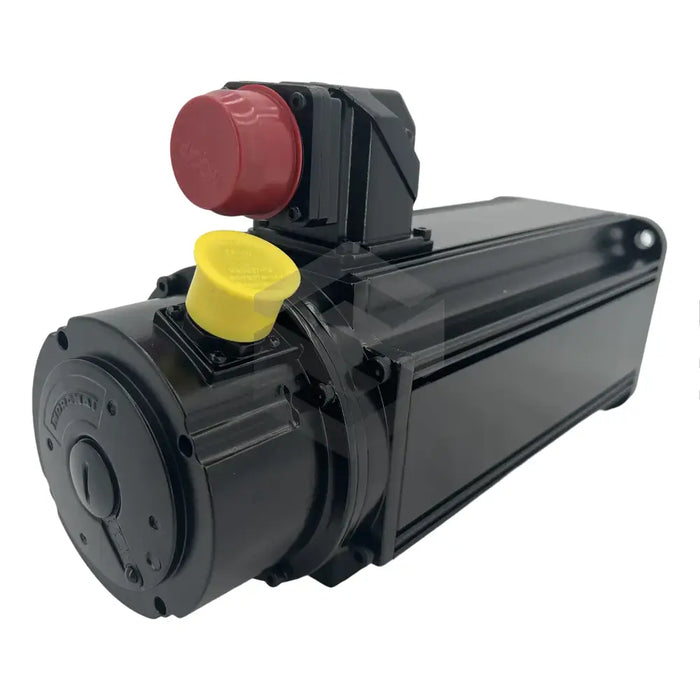

The MDD071C-N-040-N2S-095GB0 is a robust digital AC servomotor manufactured by Bosch Rexroth Indramat. This high-performance component can withstand harsh environments and is designed for shock-damped mounting. The device is finished with a durable, acid and lye resistant black housing coat with an additional 40µm layer of paint permitted. The servomotor accommodates attachments such as belt pulleys and pinions onto the shaft with the help of clamping sets or pressure sleeves. It operates at a nominal speed of 4000min-1 without a blocking brake and is ideal for dynamic applications like nibbling machines and roller feeds. While the motor showcases efficient heat conduction, it also withstands thermal deformation with up to a 0.6mm shift. The motor facilitates continuous start-stop operation with a high repetition rate and is electronically commutated. It outputs a theoretical maximum torque of 20.5Nm with a maximum current rating of 22.6A. A one-year support program is also provided.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MDD071C-N-040-N2S-095GB0: Digital AC Servomotor
  • Mounting: Shock-Damped or Shock-Decoupled
  • Housing-Paint: Additional Layer Not More Than 40µm Thickness
  • Pilot Diameter: 95mm
  • Shaft Coupling: Belt Pulleys, Pinions, Other Similar Elements
  • Shaft Shift: Up to 0.6mm on A Side of Shaft
  • Radial Force: Dependent on Point of Application and Average Speed
  • Nominal Speed: 4000min-1
  • Brake: None
  • Applications: Nibbling Machines and Roller Feeds
  • Heat Conduction: From Stator Windings to Exterior Wall of Motor Housing
  • Bearings: Floating and Fixed Absorb Radial and Axial Forces
  • Shock Response Spectrum: Type L and Type II per IEC 721 Standards
  • Torque: Peak Over Wide Speed Range
  • Shaft-Hub Connections: Non-Positive Style
  • Support: One Year Backup
  • Operation: Continuous Start-Stop with High Rate of Repetition
  • Housing Coat: Black, Resistant to Diluted Acids and Lyes
  • Load Factors: Must be Multiplied Under Exceeded Operating Conditions and Installation Elevations
  • Commutation: Electronic Supported
  • Maximum Torque: 20.5Nm
  • Maximum Current Rating: 22.6A
  • Windings Inductance: 3.4mH
  • Coat Resistance: Yellowing, Chalky Buildups, Weathering
  • Delivery: With Assistance of Reliable Freight Carriers
