series image of MDD071C-N-040-N2T-095GB1

MDD071C-N-040-N2T-095GB1

by Bosch Rexroth Indramat
$1,761.06 - $1,761.06
$1,761.06
$1,761.06 - $1,761.06
$1,761.06
Available, Shipping Varies

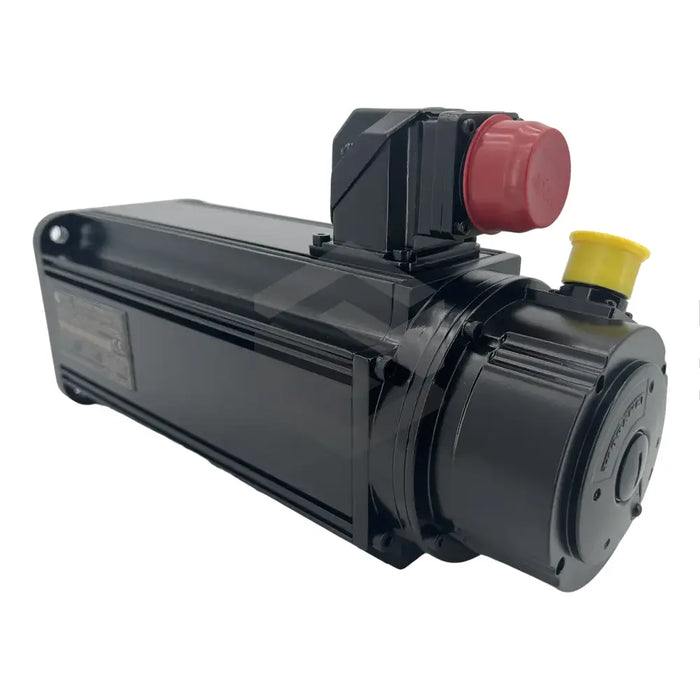

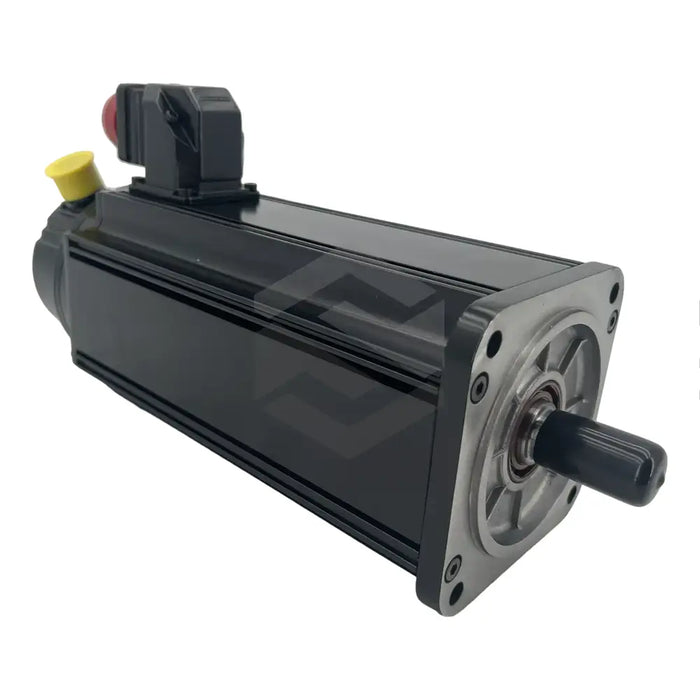

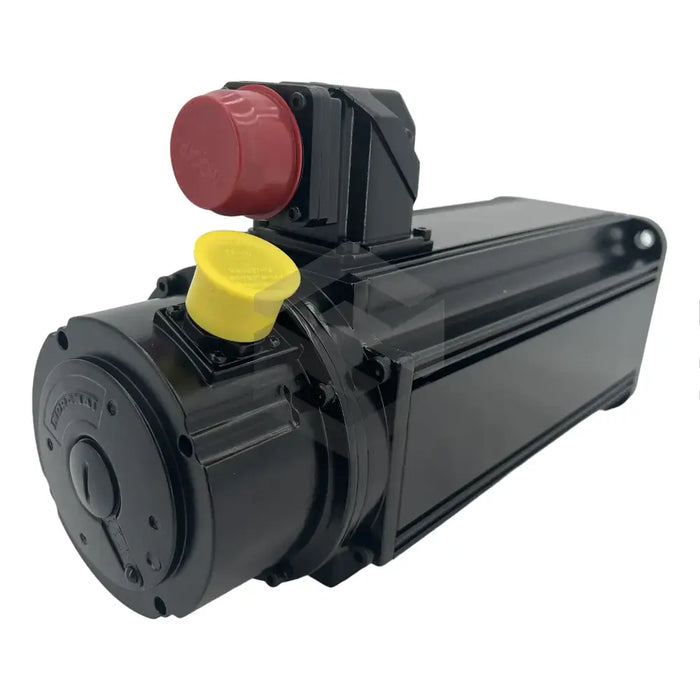

The MDD071C-N-040-N2T-095GB1 is a Bosch Rexroth Indramat digital AC servomotor that features housing impervious to weather, chalky deposits, and discoloration. This model is categorized under the MDD series, and it's only compatible with Design B5 mounting. It incorporates a 3Nm blocking brake and doesn't support flange mounting with a tailored pilot diameter. Axial and radial forces are absorbed by its fixed and floating bearings, respectively. Weighing 11 kg without its blower and braking system, this device excels in continuous start-stop operation. It comes with a one-year backup support, an IP 44 degree of protection with a blower attachment, and a standard 95mm pilot diameter for the mounting flange. Accommodating radial surface cooling coupled with natural convection, the servomotor requires a qualified personnel for mounting, operating, transportations, and storage. A service life of approximately 20,000 revolutions for the blocking brake is expected, and it's packaged in military-grade materials for secure transportation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MDD Series: MDD071C-N-040-N2T-095GB1
  • Housing Coat: Resistance to weathering, chalky buildups and yellowing
  • Mounting Design: B5
  • Blocking Brake Attachment: 3Nm
  • Axial Forces Absorption: Fixed bearing
  • Radial Forces Absorption: Floating bearing
  • Mass: 11kg (without blower and blocking brake)
  • Cyclic Load Capability: High
  • Operation Mode: Continuous start-stop operation with high repetition
  • Housing and Covers Standard: DIN 40 050 specifications
  • Degree of Protection: IP 44 (with blower attachment)
  • Pilot Diameter: 95mm standard
  • Cooling Method: Radial surface cooling along with natural convection
  • Brake Operation: Magnetic force at zero current
  • Maximum Installation Altitude: 5000m above sea level
  • Service Life: 20,000 revolutions for blocking brake in closed state
  • Packaging: Custom military-grade packaging.
