MDD071C-N-060-N2S-095GA1

Request a quote

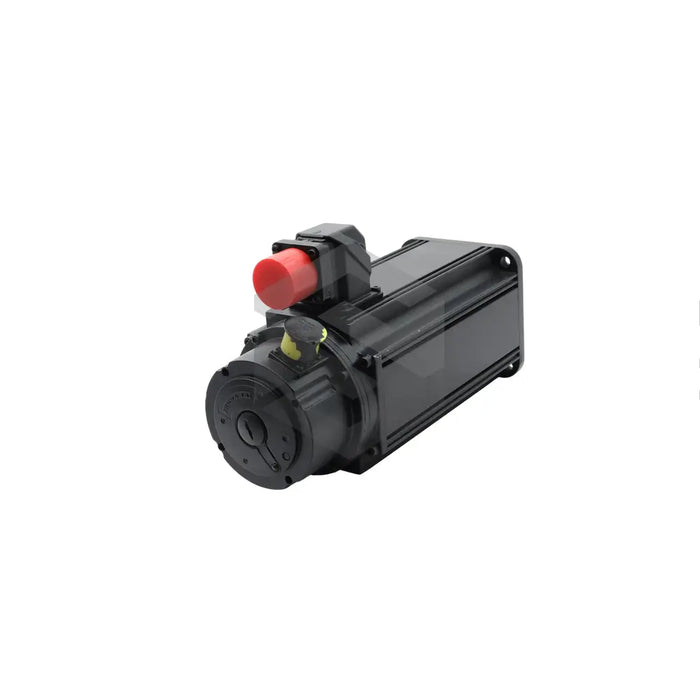

The MDD071C-N-060-N2S-095GA1, a product of Bosch Rexroth Indramat, is a high-performing AC servo motor. With a dependable construction, this synchronous motor features a black coating with a thickness of up to 40 micrometers. It uses peak power of 99.3 A to produce a theoretical torque of 20.6 Nm. Despite its compact size, weighing only 11 kg, it provides a continuous torque output of 6.6 Nm. The motor has an impressive 6000 RPM speed and an integrated holding brake, designed for enhanced control. Additionally, it uses permanent magnets for operation, with a torque constant of 0.53 Nm/A. To increase its reliability, the motor features a digital servo feedback encoder, and is safeguarded with IP 65 protection level and F insulation class. Other useful features include a temperature-controlled housing for heat dissipation, an rf noise reduction system, and an output shaft with an extra sealing ring for added safety.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MDD071C-N-060-N2S-095GA1
  • Coating Color: Black
  • Maximum Coating Thickness: 40 micrometers
  • Theoretical Torque: 20.6 Nm
  • Peak Current: 99.3 A
  • Protection Rating: IP 65
  • Insulation Class: F
  • Weight: 11 kilograms
  • Continuous Torque Output: 6.6 Nm
  • Rotating Speed: 6000 RPM
  • Output Shaft: Plain with sealing ring
  • Holding Brake: 0.3-kilogram with a holding torque of 3 Nm and a nominal current of 0.6 A
  • Balancing Class: N
  • Motor Drive: Permanent magnets made of rare-earth or iron oxide magnetic materials
  • Torque Constant: 0.53 Nm/A
  • Encoder Type: Digital servo feedback
  • Centering Diameter: 95 mm
  • Thermal Time Constant: 45 minutes
  • Winding Inductance: 1.4 mH
  • Winding Resistance: 0.22 ohm
  • Moment of Inertia: 11.9 x 10-4 kgm2
