subseries image of MDD071C-N-060-N2S-095PL1

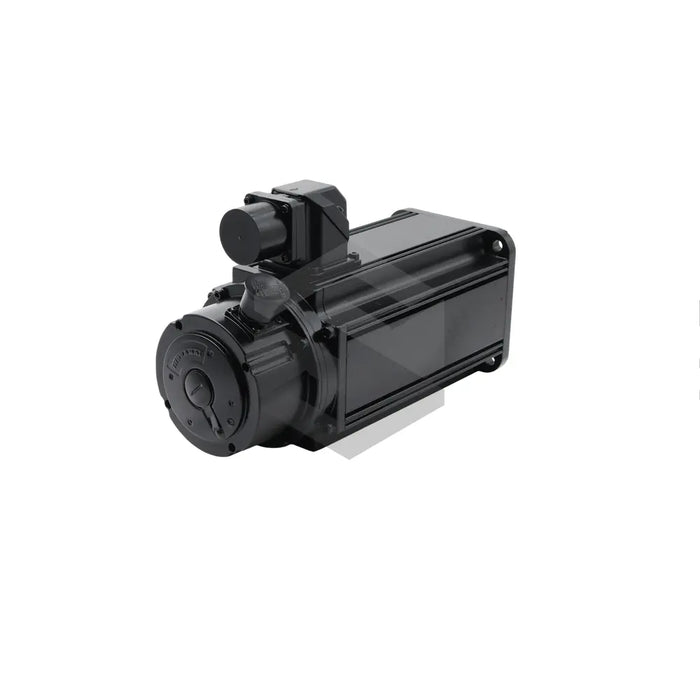

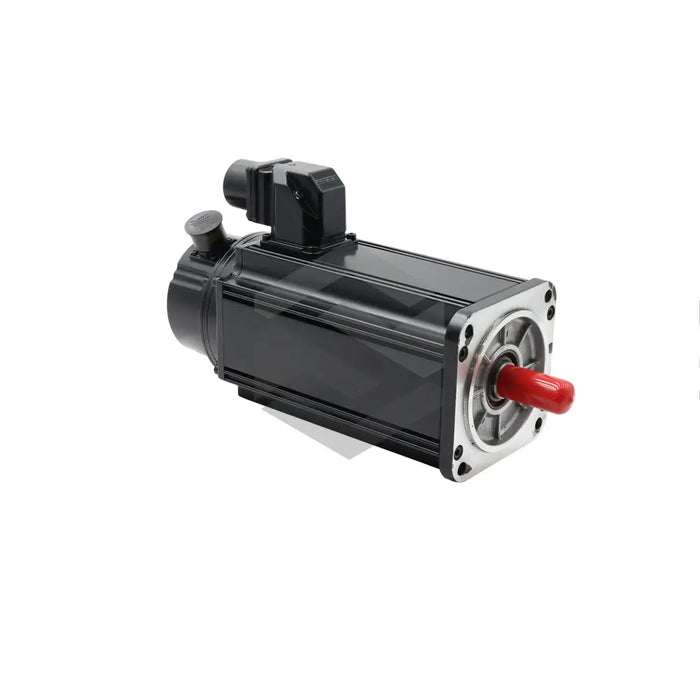

MDD071C-N-060-N2S-095PL1

by Bosch Rexroth Indramat
Request a quote
The MDD071C-N-060-N2S-095PL1 by Bosch Rexroth Indramat is a permanent magnet-excited AC servo motor designed for continuous start-stop operations with high repetition rates. Designed for high power density application, it excels in dynamic scenarios like roller feeds for pressing machines and tool-changing devices. Embedded with a 3.0Nm block brake, it ensures safe axis standstill when unpowered. The contained optical sensor enables relative indirect position evaluation, with a system accuracy of ±0.5 angular minutes. Conforming with DIN VDE 0530, its Balance Class R endorses its operational reliability, ideal for demanding functions like grinding machines and servo motors in spindle applications. Its output shaft, constructed according to DIN 6885-1, features a keyway for optimal shaft-hub-connections. The motor housing possesses a DIN 40 050 rated IP 65 protection, safeguarding against voltage contact, intrusion by extrinsic objects, and water jets, along with providing natural convection cooling.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: AC Servo Motors
  • Motor Type: Permanent magnet-excited synchronous motors
  • Electronic Commutation: Yes
  • Load Capacity: High cyclic load
  • Applications: Machine tools, textile machines, printing and packaging machines, robotics, handling equipment, transfer facilities
  • Operating Reliability: High
  • Power Density: High
  • Blocking Brake: 3.0Nm
  • Motor Feedback: Digital servo feedback for relative indirect position evaluation
  • Measuring Principle: Optical
  • System Accuracy: ±0.5 angular minutes
  • Balance Class: Balance Class R (DIN VDE 0530)
  • Output Shaft: Shaft with keyway (DIN 6885-1)
  • Housing Protection Rating: IP 65 (DIN 40 050)
  • Cooling Method: Natural convection.
