subseries image of MDD071C-N-060-N2T-095GB0

MDD071C-N-060-N2T-095GB0

by Bosch Rexroth Indramat
$2,992.50 - $2,992.50
$2,992.50
$2,992.50 - $2,992.50
$2,992.50
Available, Shipping Varies

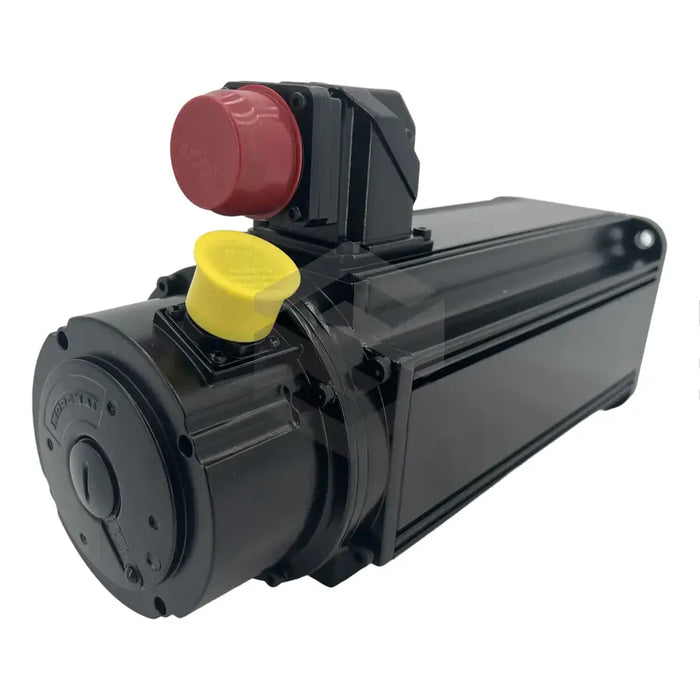

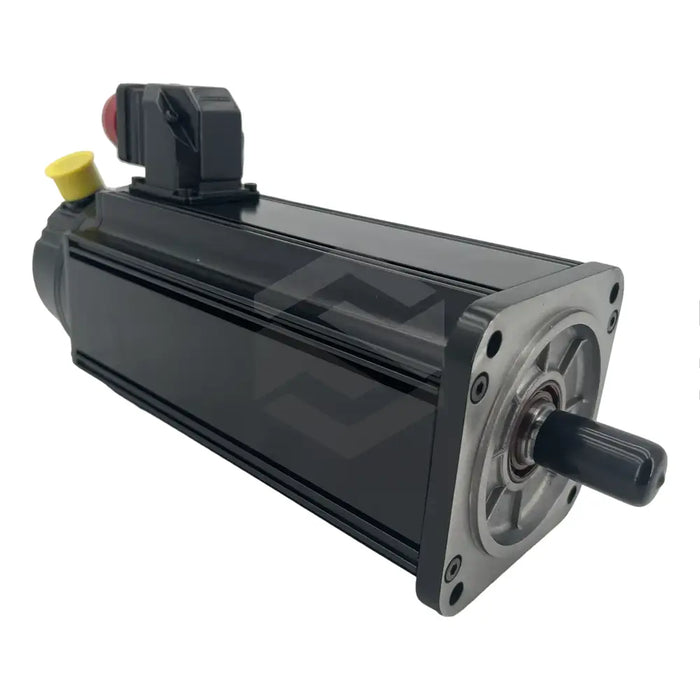

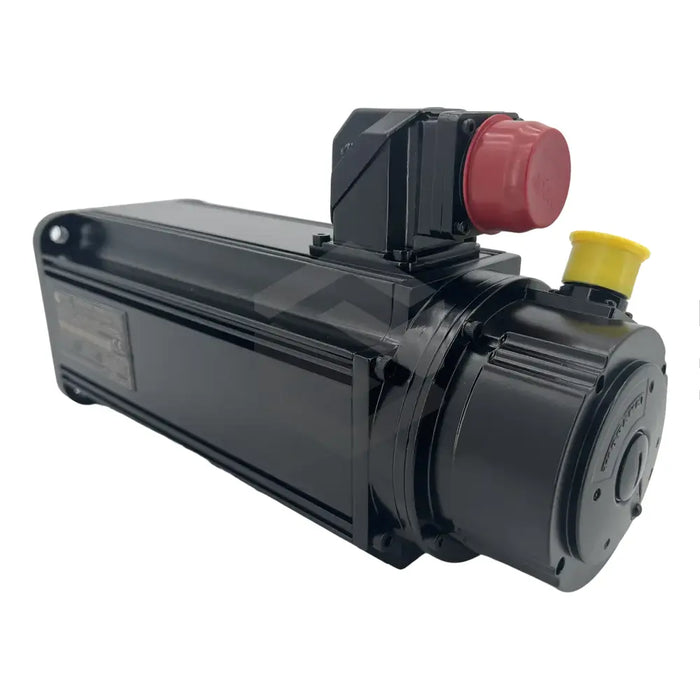

The MDD071C-N-060-N2T-095GB0, produced by industry leader Bosch Rexroth Indramat, is a tailored high-quality AC servo motor. Designed in accordance with UL standards, it forms part of an intelligent digital motion control system when used with Rexroth specified parts and modules. Featuring various mounting options, including B05 and B14 design flanges, it also has an integrated temperature monitoring sensor for over-temperature protection. The servo motor utilizes a digital service feedback system with a multiturn absolute optical encoder and provides connector options for feedback and power. The permissible temperature range is 0 to +45°C, tolerating a maximum of +55°C. With a continuous current intake of 22.1/33.2 A under natural/surface cooling, it delivers output of 22.1/33.2 Nm. The 11 kg unit offers IP65 protection, a plain output shaft for back lash-free transmission, and a 95 mm pilot diameter. Its maximum torque reaches 20.6 Nm with a maximum current of 99.3 A, and it features a winding inductance of 1.4 mH and winding resistance of 0.33 ohms.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MDD071C-N-060-N2T-095GB0
  • Design: B05 (mounting flange with through holes), B14 (mounting flange with threads)
  • Sensor: Temperature Monitoring Sensor
  • Feedback System: Digital Servo Feedback
  • Encoder: Multiturn Absolute Optical Encoder
  • Power Connector Position: B-side
  • Permissible Temperature Range: 0 to +45 degree Celsius
  • Maximum Temperature: +55 degree Celsius
  • Consumption of Continuous Current: 22.1/33.2 A
  • Delivered Continuous Current: 22.1/33.2 Nm
  • Cooling Mode: Natural/Surface
  • Weight: 11 kg
  • Protection Category: IP65
  • Transmission: Backlash-free and Non-positive
  • Output Shaft: Plain
  • Pilot Diameter: 95 mm
  • Maximum Torque: 20.6 Nm
  • Maximum Current: 99.3 A
  • Winding Inductance: 1.4 mH
  • Winding Resistance: 0.33 Ohms
