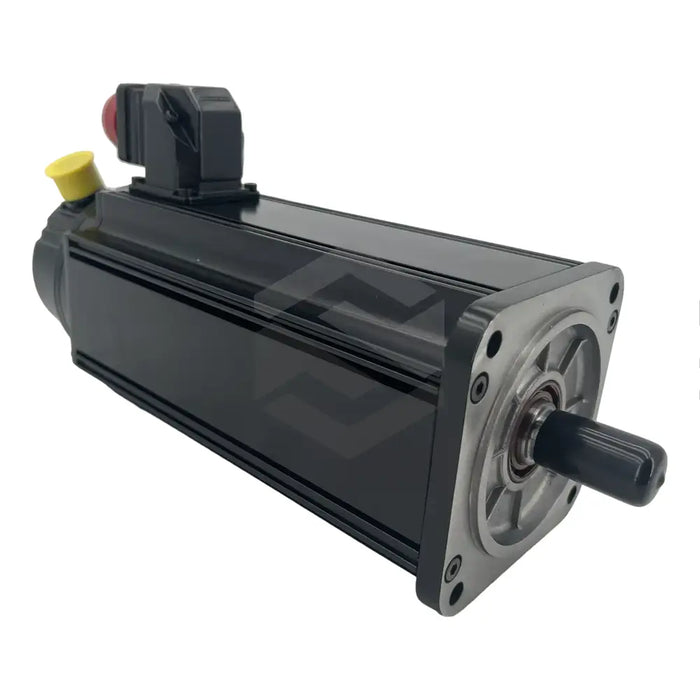

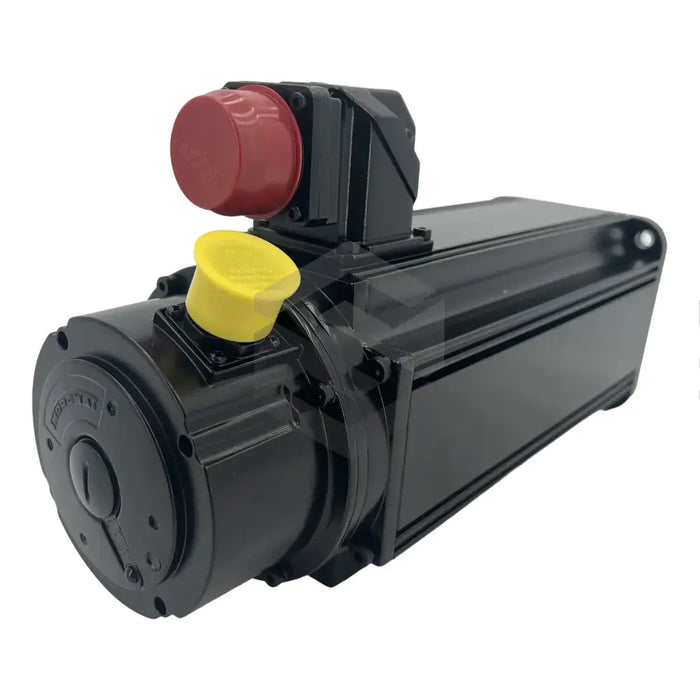

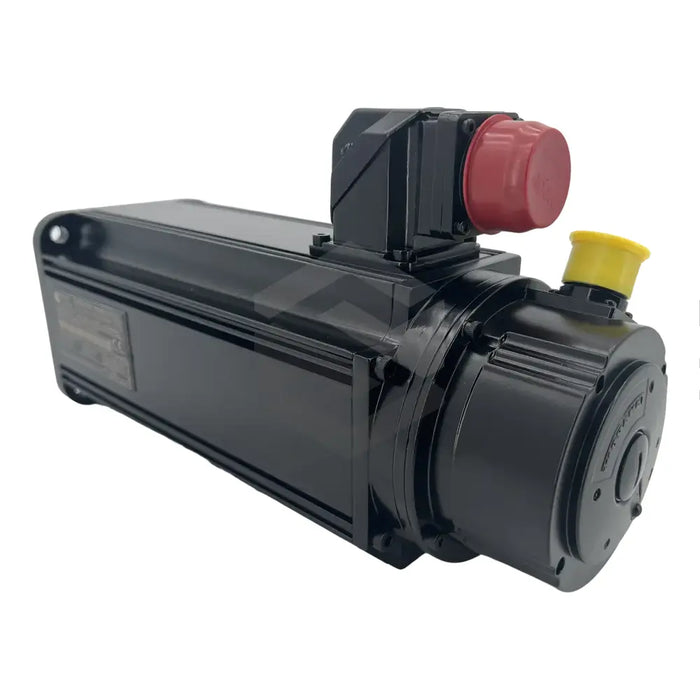

subseries image of MDD071C-N-060-N2T-095PB0

MDD071C-N-060-N2T-095PB0

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's digital servo motor, MDD071C-N-060-N2T-095PB0, offers user-friendly operability, facilitated by a digital servo feedback mechanism with an integrated multiturn absolute encoder. This feature makes tracking and fine-tuning motor aspects like speed and torque a breeze. With a frame size of 071 and length of C, it is designed to be cooled naturally or through surface cooling. It dons a 95mm centering diameter, and its motor housing stretches to 288mm with a 19mm shaft diameter, featuring a keyway as per DIN 6885-1 standards. The motor shaft protrudes about 40mm from the main body, and it comes with a 115mm flange that has four 9mm holes for deploying the motor. Though it does not include a braking system, Bosch offers add-on blocking brakes to meet user needs. The dust-proof IP65 rated housing enables worry-free usage and its nominal motor speed reaches up to 6000 RPM.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Servo Motor
  • MDD071C-N-060-N2T-095PB0 Features: Suports digital servo feedback with integrated multiturn absolute encoder, frame suited to natural convection or surface cooling
  • Motor type code: 071C
  • Motor centering diameter: 95 millimeters
  • Motor housing length: 288 millimeters
  • Shaft diameter: 19 millimeters
  • Shaft feature: Includes a keyway as per DIN 6885-1
  • Shaft length outside main housing: 40 millimeters
  • Flange size: 115 millimeters
  • Flange feature: Four holes with a diameter of 9 millimeters each for motor mounting
  • Power Connection Location: Side B
  • Motor Brake: Offered without a blocking brake
  • Nominal Motor Speed: 6000 RPM
  • Motor Weight: Approximately 11 kilograms
  • Continuous Torque at Standstill: 6.6 Nm with natural convection and 9.9 Nm with surface cooling
  • Motor Housing Rating: IP65, completely dust-proof
  • Operating Requirements: Should be operated by trained personnel.
