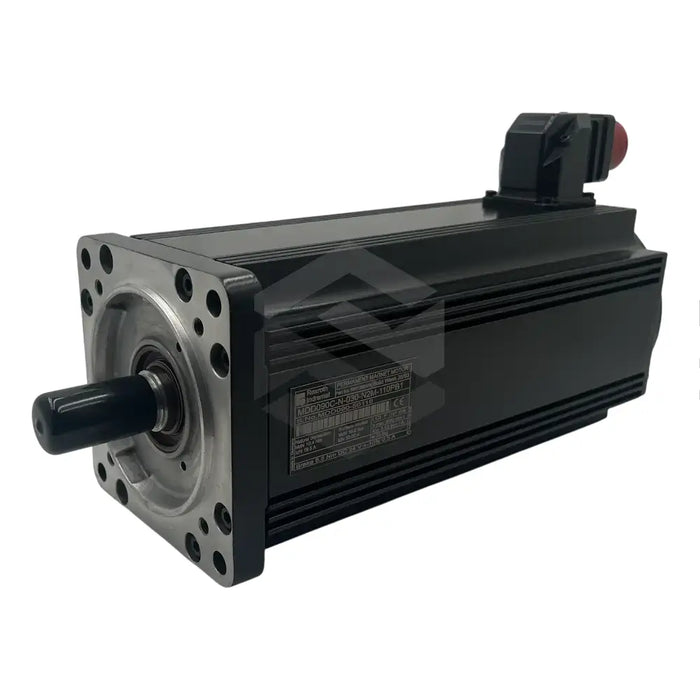

C image of MDD090C-N-030-N2M-110PB1 | Main (Front Left)

MDD090C-N-030-N2M-110PB1

by Bosch Rexroth Indramat
$2,216.73 - $6,000.00
$2,216.73
$2,216.73 - $6,000.00
$2,216.73

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MDD090C-N-030-N2M-110PB1 is a robust servo motor from the MDD series. This high-performing motor is designed for demanding industrial applications such as punching, pressing, and press feeds. The motor's casing is designed for natural convection and surface cooling, meeting the IP65 protection category. The motor can be used in harsh operating conditions, but shock-damping or shock decoupling mounts are needed. The motor is rated for operation in environments from 0 to 45 degrees Celsius and altitudes up to 1000 meters. It features a 3000 RPM speed rating, digital servo feedback through an integrated multiturn encoder, and a 6.5 Nm holding brake. The shaft includes a keyway to prevent relative rotation. The motor itself weighs 23 kilograms and has a black prime coating that is resistant to weathering, yellowing, and diluted acids and lyes. The motor's insulation classification is F and the main power socket is on side B.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

MDD Series

Product Type

Servo Motor

Housing Design

Suited for natural convection and surface cooling

Protection Category

IP65

Applicable Conditions

Shock-damped mounted, Mounted shock decoupled

Ambient Conditions (Operational)

0 to 45 degrees Celsius, Up to 1000 meters altitude

Ambient Conditions (With Derated Output)

Up to 55 degrees Celsius, Up to 5000 meters altitude

Speed Rating

3000 RPM

Servo Feedback

Integrated multiturn encoder

Output Shaft

Includes Keyway

Blocking Brake

6.5 Nm holding torque

Power Socket Position

Side B

Insulation Classification

F

Weight

23 kilograms

Primary Housing Coating

Black Prime (RAL 9005)

Secondary Paint Layer

Acceptable, must not exceed 40 millimeters in thickness

Housing Coat Resistance

Weathering, Yellowing, Chalky build-ups, Diluted acids and lyes

Recommendation

Avoid repeated cleaning with steam cleaner, may cause coat to peel
