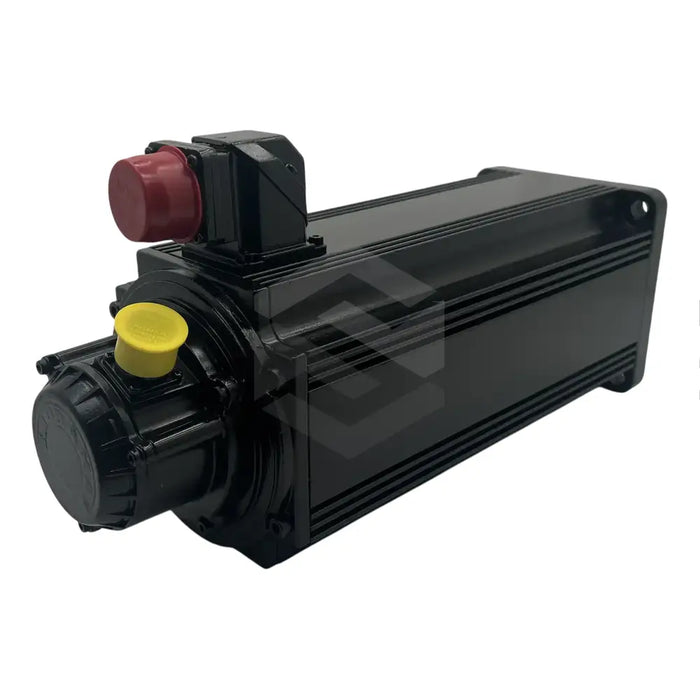

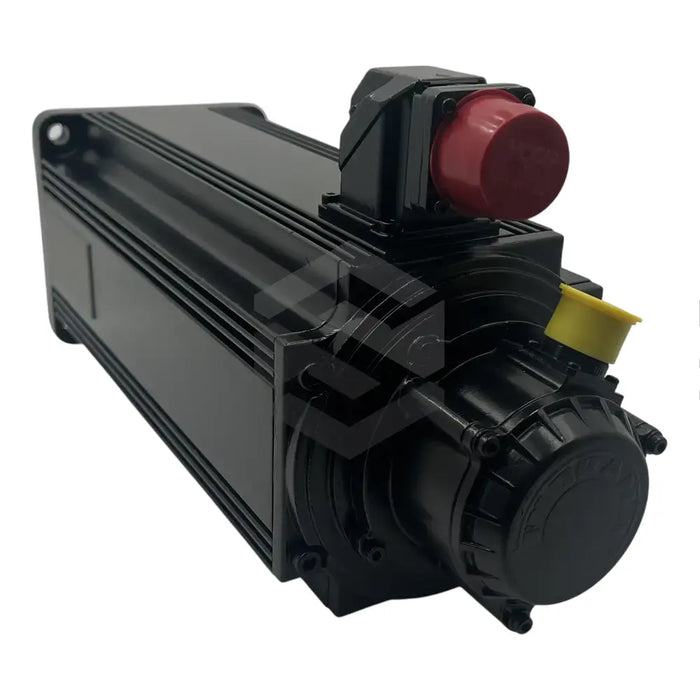

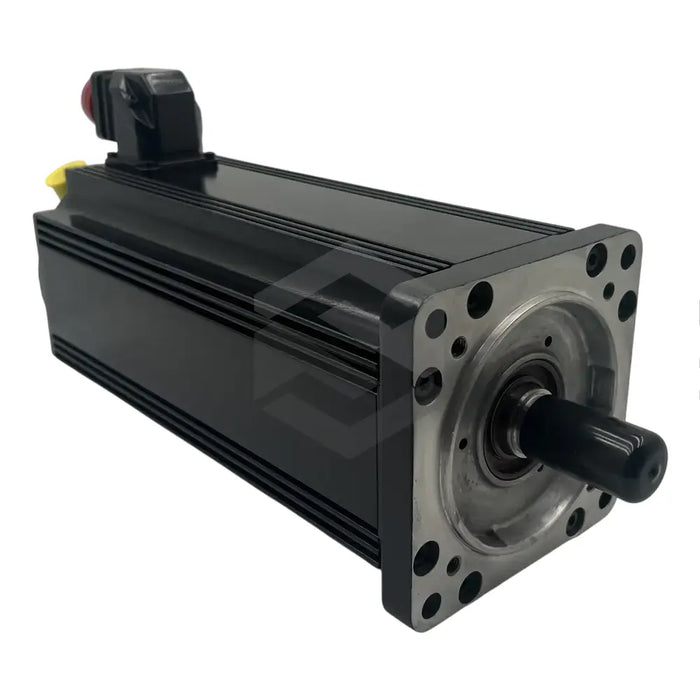

subseries image of MDD090C-N-030-N5L-110GB2

MDD090C-N-030-N5L-110GB2

by Bosch Rexroth Indramat
$3,240.00 - $3,240.00
$3,240.00
$3,240.00 - $3,240.00
$3,240.00
Available, Shipping Varies
The Bosch Rexroth Indramat MDD090C-N-030-N5L-110GB2 is a high-specification digital AC servo motor. The motor offers a continuous torque of 10.4 Nm while idle, a maximum braking force of 11.0 Nm, and an impressive nominal speed of 3000 min^-1. The dynamic performance is characterized by a remarkable maximum torque of 56.3 Nm, supported by a maximum current of 117.8 A. Other technical details include a torque constant of 0.53 Nm/A, windings resistance of 0.46 Ohm at 20 degrees Celsius, rotor's Moment of inertia at 53 x 10-4 kgm2 and an inductance of 2.6 mH, which collectively facilitate effective power conversion. This servo motor is engineered for installation up to 1000 meters above sea level and designed with a DC 24 V nominal voltage, blocking brakes for enhanced accuracy, a digital servo feedback system, and a plain output shaft with a B-side power coupling. With a balance class, a focusing diameter of 110 mm, a thermal time constant of 60 mins, and a mass of 23 kg, it is ideal for an array of industrial applications requiring stability, precision, and responsiveness.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MDD Model: MDD090C-N-030-N5L-110GB2
  • Motor Type: Digital AC Servo
  • Continuous Torque: 10.4 Nm
  • Maximum Braking Force: 11.0 Nm
  • Nominal Motor Speed: 3000 min^-1
  • Standing Torque: 10.4 Nm
  • Continuous Current: 19.5 A
  • Theoretical Maximum Torque: 56.3 Nm
  • Maximum Current: 117.8 A
  • Moment of Inertia: 53 x 10-4 kgm2
  • Torque Constant: 0.53 Nm/A
  • Windings Resistance: 0.46 Ohm at 20 degree Celsius
  • Inductance: 2.6 mH
  • Thermal Time Constant: 60 mins
  • Unit Mass: 23 kg
  • Housing Color: Black
  • Insulation Classification: F
  • Nominal Voltage: DC 24 V
  • Brake Stop Force: 11.0 Nm
  • Servo Feedback: Digital
  • Output Shaft Type: Plain
  • Power Coupling Side: B
  • Balance Class and Focusing Diameter: 110 mm
  • Installation Elevation: Up to 1000 meters above sea level.
