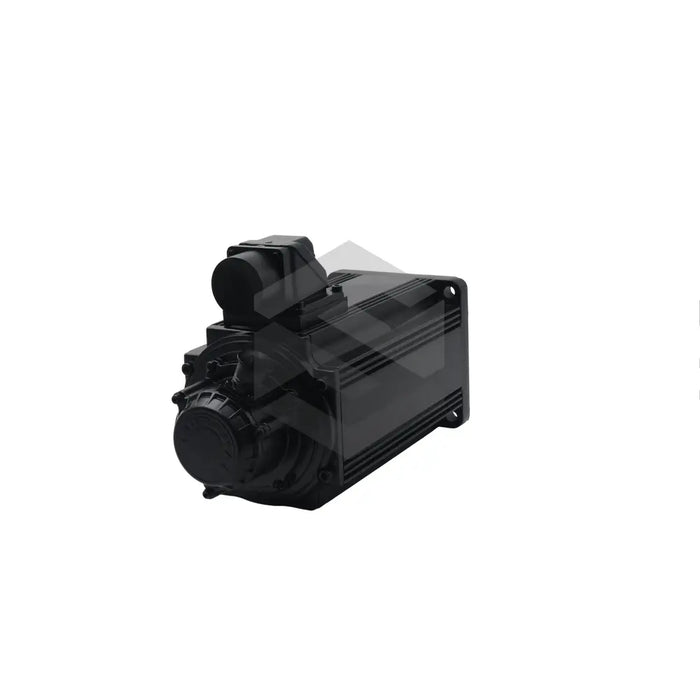

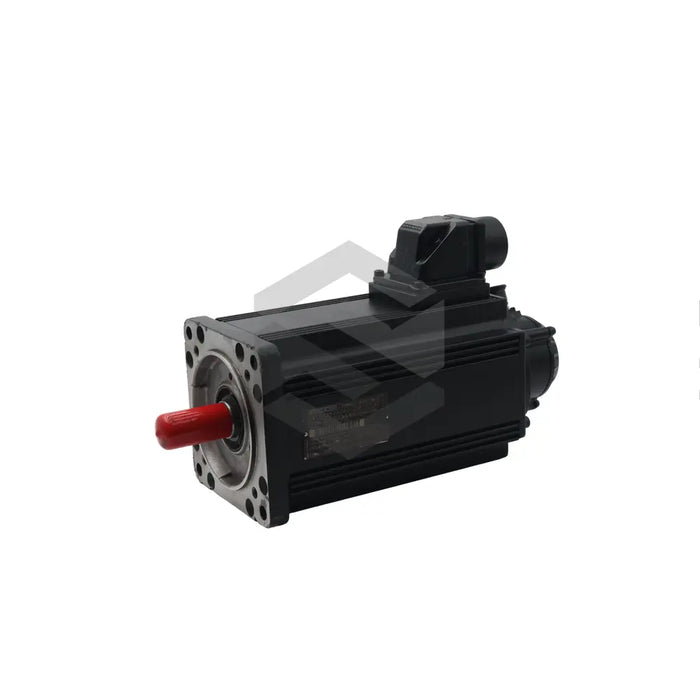

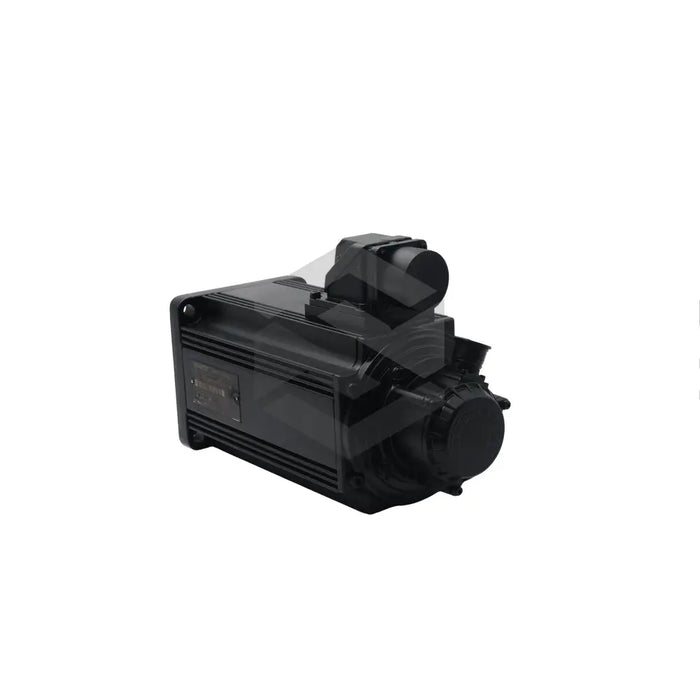

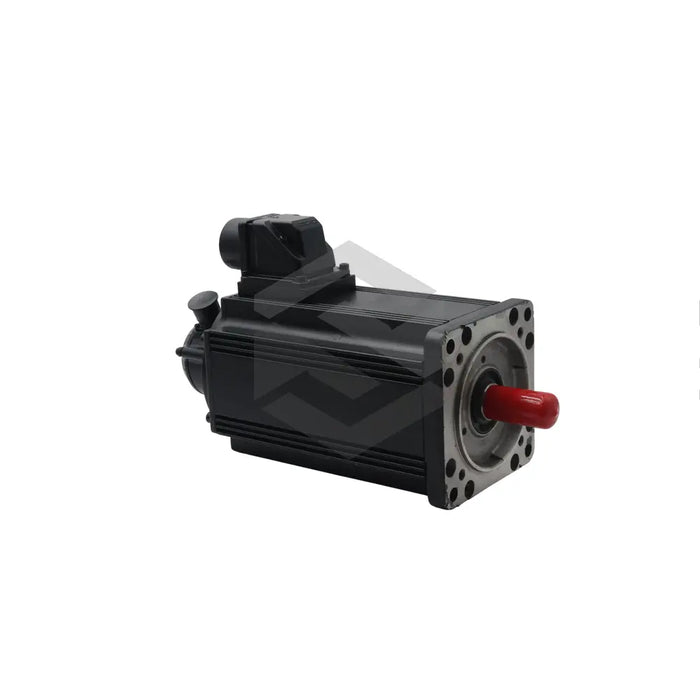

series image of MDD093B-N-040-N2L-110PA1

MDD093B-N-040-N2L-110PA1

by Bosch Rexroth Indramat
$3,857.18 - $3,857.18
$3,857.18
$3,857.18 - $3,857.18
$3,857.18
In Stock, Ships 3 - 5 Days
The MDD093B-N-040-N2L-110PA1 is an advanced digital AC servo motor by Bosch Rexroth Indramat, well-suited to tool changing, nibbling, and punching machine applications due to its high power density. Part of the MDD product family, this motor features a 110mm centering diameter, a 24mm diameter shaft, and a 140mm flange for mounting. It comes with an integrated blocking brake and digital servo feedback for optimised performance. The motor connector facilitates power cable connection at side A of the 327mm-long, 16.5kg weighted housing designed for natural convection or surface cooling. With a nominal speed of 4000 RPM, the motor provides a continuous torque at standstill of 14.5 Nm and 20 Nm for convection and surface cooling, respectively. Its 24V DC brake offers an 11 Nm holding torque. Rated IP65, the motor operates effectively from 0 to 45°C and up to 1000 meters altitude.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital AC Servo Motor
  • Motor Series: MDD093
  • Integrated Features: Blocking brake, Output shaft with keyway, Housing suited to natural convection or surface cooling, Digital servo feedback
  • Motor Connector Location: Side A of the motor housing
  • Centering Diameter: 110 millimeters
  • Flange Mounting Holes: Four
  • Flange Size: 140 millimeters
  • Motor Shaft Diameter: 24 millimeters
  • Motor Housing Length: 327 millimeters
  • Motor Weight: 16.5 kilograms
  • Nominal Motor Speed: 4000 RPM
  • Continuous Torque at Standstill with Convection Cooling: 14.5 Nm
  • Continuous Current at Standstill with Convection Cooling: 36.6 Nm
  • Continuous Torque at Standstill with Surface Cooling: 20 Nm
  • Continuous Current at Standstill with Surface Cooling: 50.5 Nm
  • Brake Operation Principle: Electrically-actuated release
  • Brake Operating Voltage: 24 Volts DC
  • Brake Holding Torque: 11 Nm
  • Brake Weight: 0.5 kilograms
  • Housing Rating: IP65 rated
  • Operating Temperature: 0 to 45 degrees Celsius
  • Operating Altitude: 0 to 1000 meters.
