MDD093B-N-040-N2L-110PR0

Original price $4,617.81 - Original price $4,617.81
Original price
$4,617.81
$4,617.81 - $4,617.81
Current price $4,617.81
Available, Shipping Varies

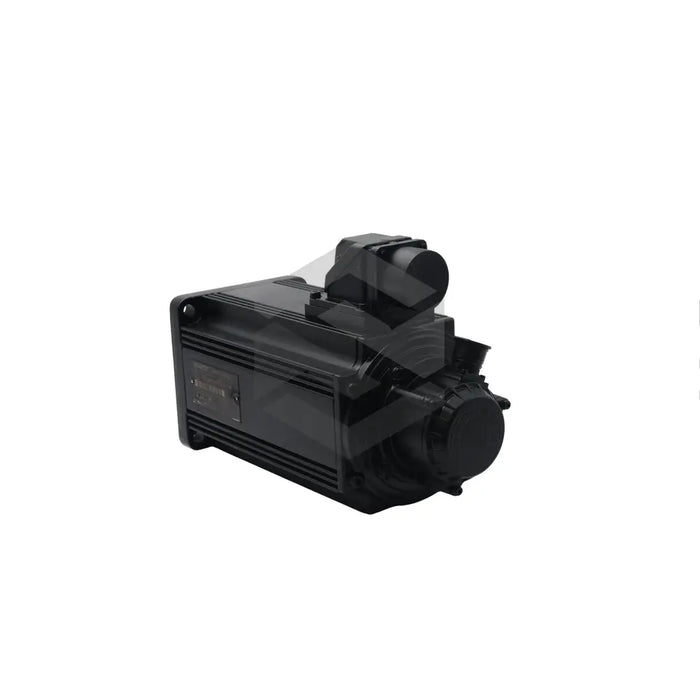

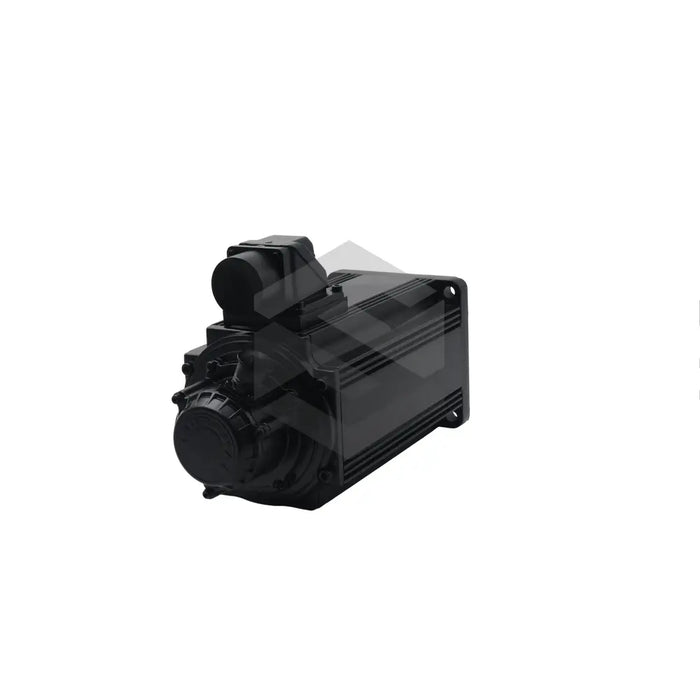

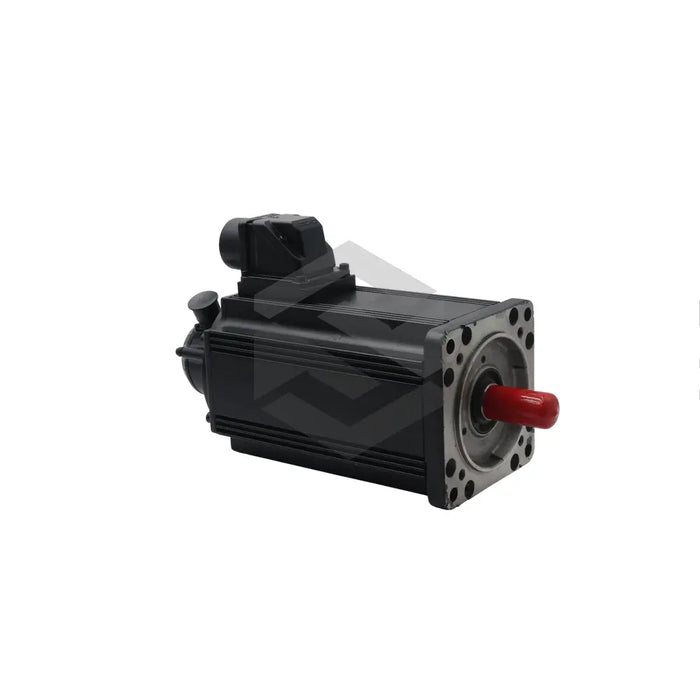

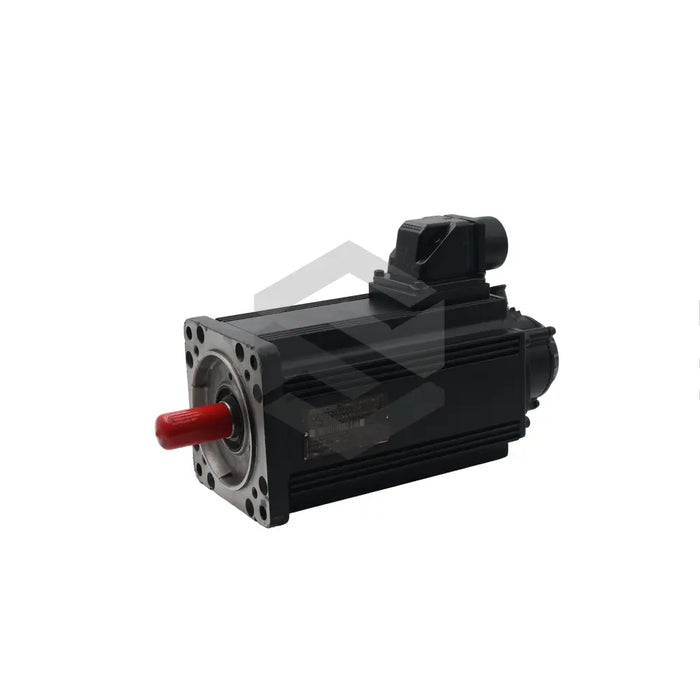

The MDD093B-N-040-N2L-110PR0, produced by Bosch Rexroth Indramat, is a digital AC motor with integrated digital servo feedback. This feature combines with a servo controller for a high-precision closed-loop control system. The servo controller also provides power, connecting via a cable to a sealed connector on the motor's right side. The motor's sealed connectors and housing grant the unit an IP65 protection rating, allowing for close installation to operational machinery and leading to easier maintenance and reduced cabling costs. The motor's surface cooling or natural convection housing design retains ambient operating temperatures between 0-45 degrees Celsius, with output rates dropping between 45-55 degrees Celsius. The MDD093B-N-040-N2L-110PR0 motor offers a standard balance class and shaft B end, a DIN 6885-1 compliant motor shaft keyway, and a 110mm centering diameter. It operates at a nominal speed of 4000 RPM and has a shipping weight of approximately 16.5 kilograms.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital AC motor
  • Servo Feedback: Integrated digital
  • Power Cable Location: right side of the housing
  • Cable Connectors: Sealed
  • Protection Rating: IP65
  • Installation Location: Close to operating machinery
  • Cooling Method: Surface or natural convection
  • Operating Temperature: 0 to 45 degrees Celsius
  • Balance Class: Standard
  • Shaft B End: Standard
  • Blocking Brake: Not available
  • Centering Diameter: 110 millimeters
  • Nominal Motor Speed: 4000 RPM
  • Shaft Keyway: DIN 6885-1
  • Shipping Weight: 16.5 kilograms
  • Continuous Torque at Standstill: 14.5 Nm
  • Continuous Current: 36.6 Amps
  • Maximum Torque: 45.1 Nm
  • Maximum Current: 164.8 Amps
  • Housing Color: Matte Black
