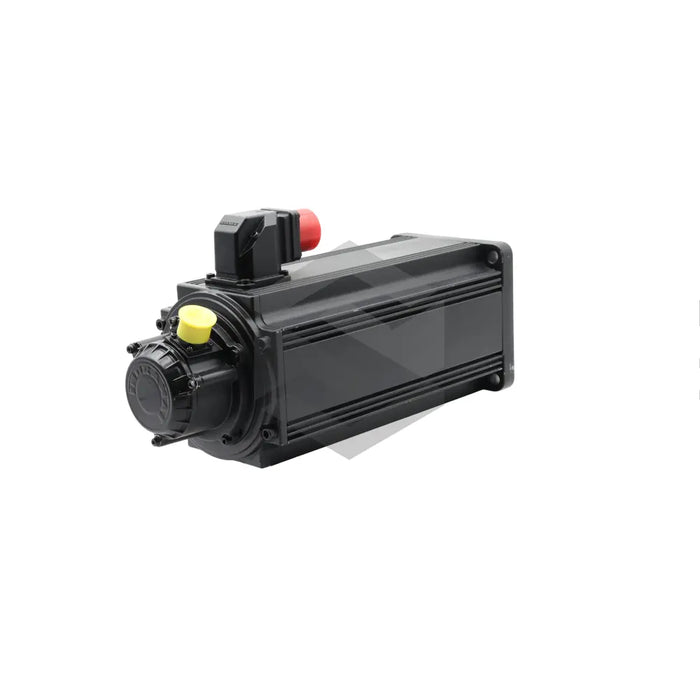

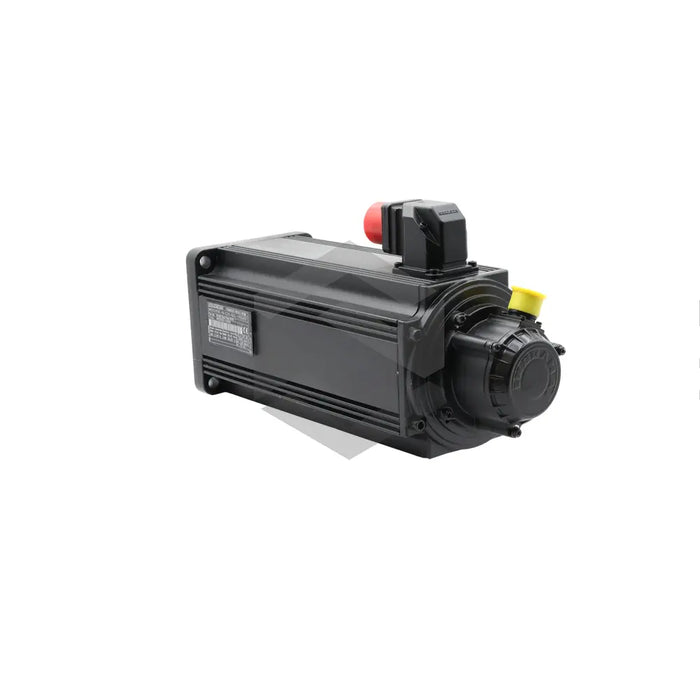

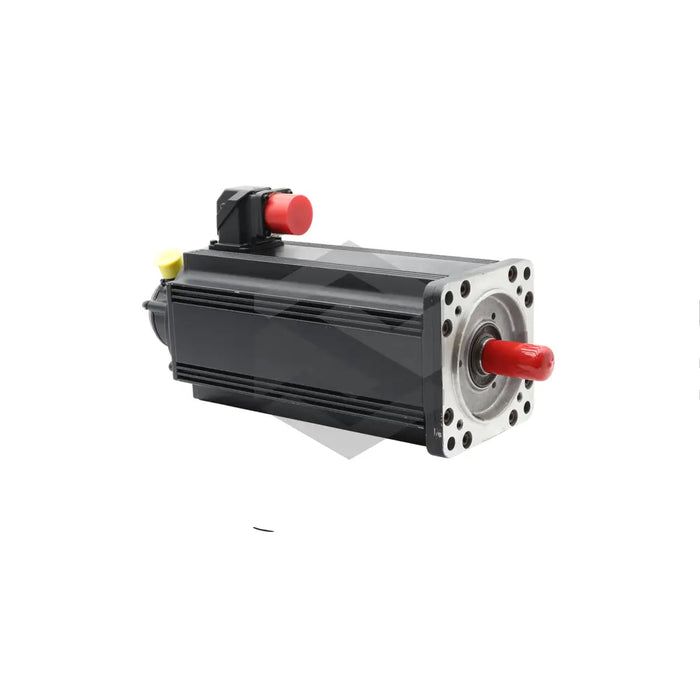

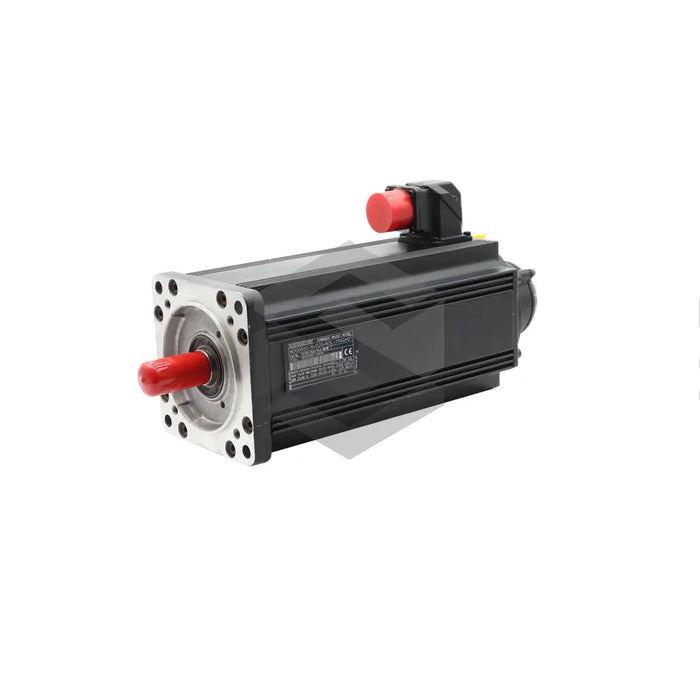

MDD093C-N-020-N2L-110GA1
The MDD093C-N-020-N2L-110GA1, produced by Bosch Rexroth Indramat, is an AC servo motor with a permanent magnet for excitation. Designed for wide usage including handling equipment and robotics, this powerful motor has a high-density design and standard housing for heat dispersion through convective heat transfer or surface cooling. Operational at a peak current of 96.5 Amps and a nominal speed of 2,000 RPM, this reliable and low-maintenance motor features a brushless design and sufficient temperature monitoring. It incorporates an 11 Nm blocking brake that halts the axis upon power removal. With a centering diameter of 130 mm and a 110 mm standard diameter, the adaptable mounting flange ensures compatibility with motors from other manufacturers. This motor, with a winding resistance of 0.56 Ohms and a torque constant of 0.91 Nm/A, operates optimally between 0-45°C, and can be installed at heights up to 1000 meters.
30 Day Warranty
Technical Specifications
