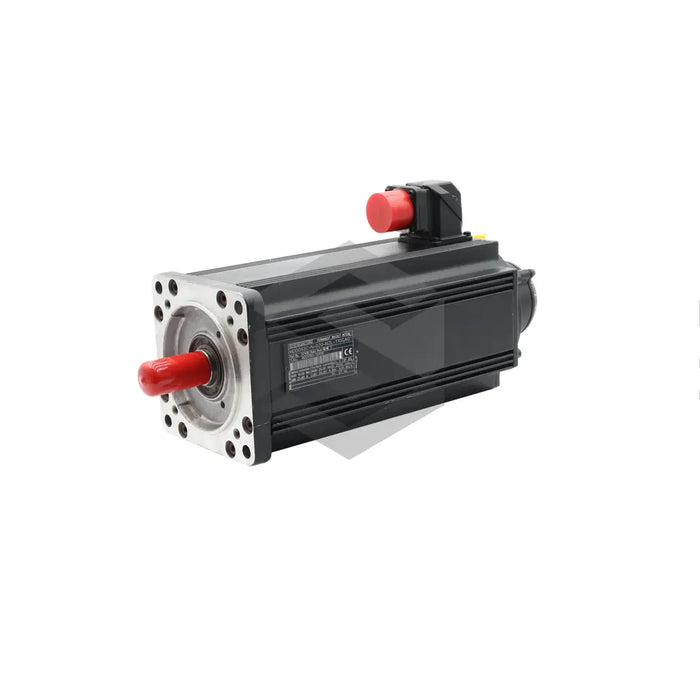

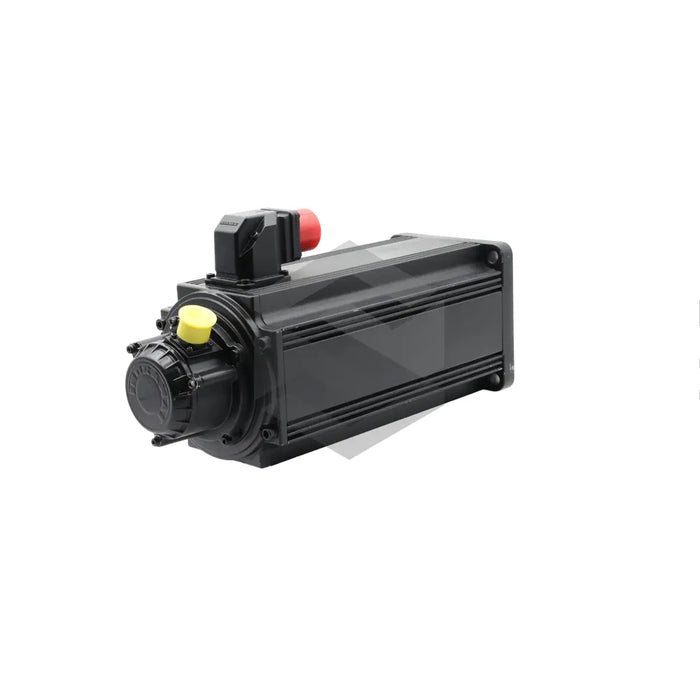

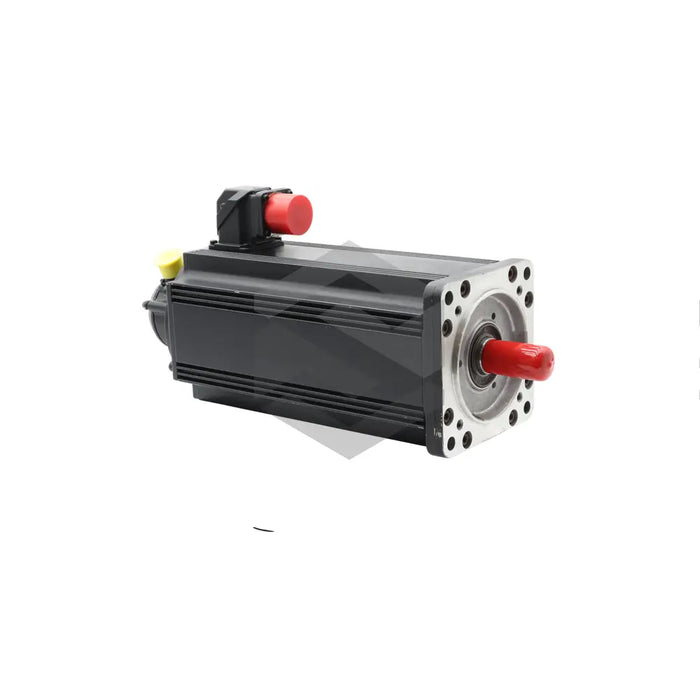

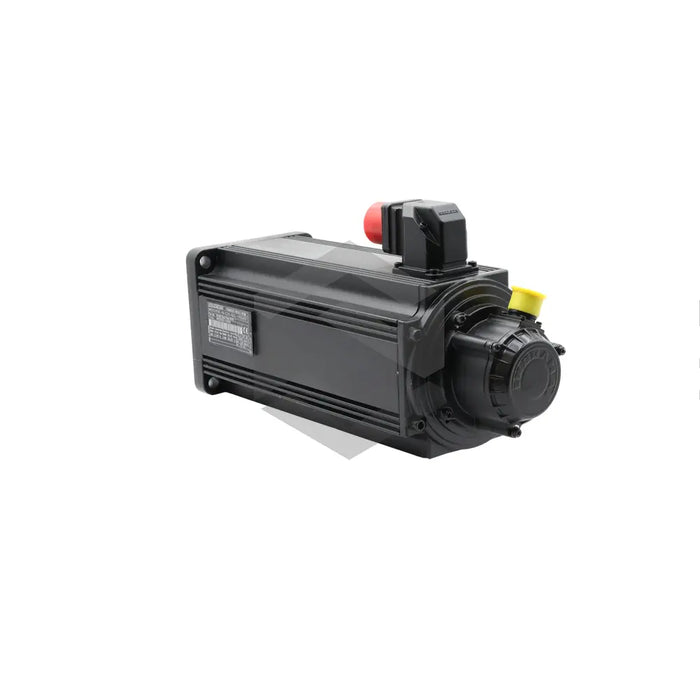

Bosch Rexroth's MDD093C-N-020-N2L-110GB1 AC servo motor is a high-quality component often employed in automation systems across various industries. This motor generates a notable 60.6 Nm of theoretical torque at a top speed of 2000 revolutions per minute, while drawing a maximum current of 96.5 A. The MDD093C model features a plain output shaft, a 40-micron black finish, and an insulation class of F. Its windings are equipped with a temperature sensor to prevent overheating and it's fitted with a 0.75 mm2 wire for power connection. At 22 kg, it provides constant torque of 19.5 Nm, consuming 21.4 A of constant current during standstill operation. This model includes a 0.5 kg holding brake and meets IP 65 standards for dust and water protection. The specialized design includes digital servo feedback, making it adaptable for diverse machine operations. It should be installed and managed by a skilled specialist for optimal performance.
30 Day Warranty
Technical Specifications
  • Product: Bosch Rexroth AC Servo Motor MDD093C-N-020-N2L-110GB1
  • Output Shaft: Plain
  • Sealing Ring: Included
  • Theoretical Torque: 60.6 Nm
  • Maximum Speed: 2000 RPM
  • Maximum Current: 96.5 A
  • Centered Diameter: 110mm
  • Finish: 40 micron thick black
  • Temperature Sensor: Included
  • Insulation Class: F
  • Torque Constant: 0.91 Nm/A
  • Power Connection Wiring: 0.75 mm2
  • Holding Brake Weight: 0.5 kg
  • IP Rating: IP 65
  • Constant Torque at Standstill: 19.5 Nm
  • Constant Current at Standstill: 21.4 A
  • Weight: 22 kg
  • Winding Inductance: 6.1 mH
  • Balancing: Class N
  • Cooling: Natural and surface
  • Feedback: Digital Servo Feedback
  • Thermal Time Constant: 50 minutes.
