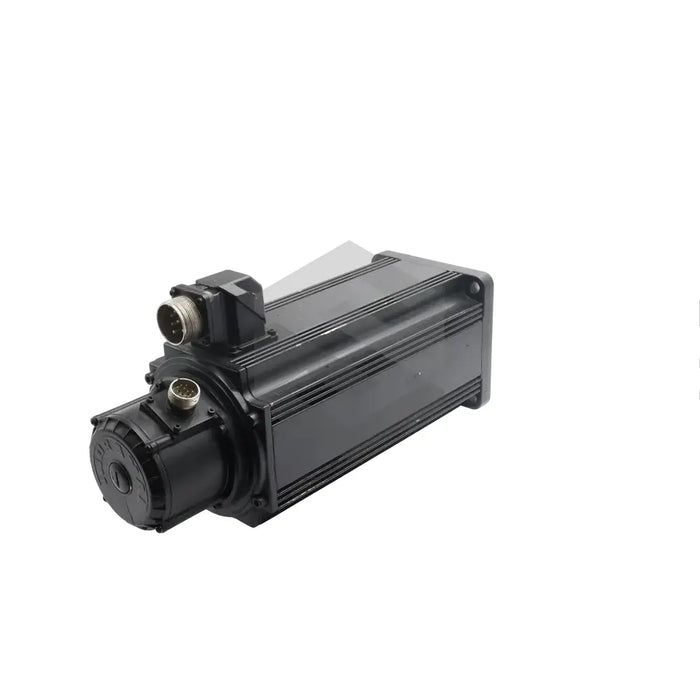

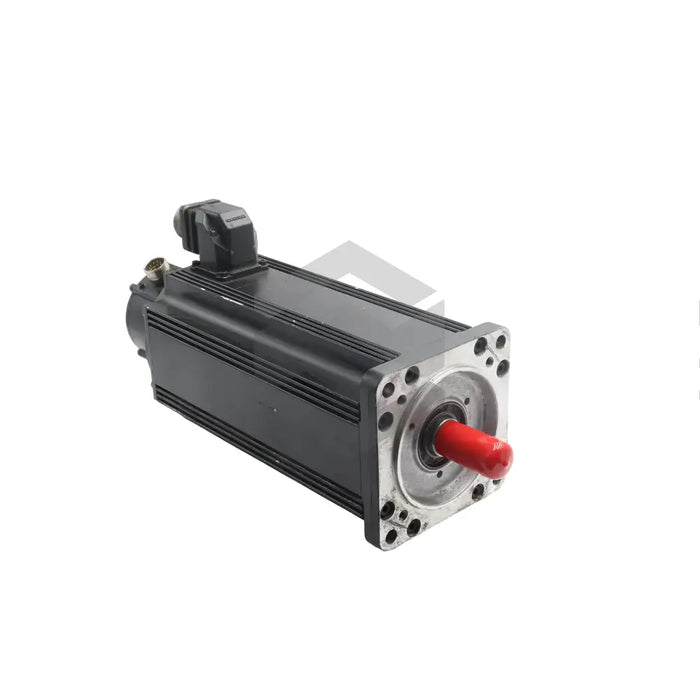

C image of MDD093C-N-020-N2L-130PB2 | Front Right

MDD093C-N-020-N2L-130PB2

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the MDD093C-N-020-N2L-130PB2 is a high-powered AC servo motor with a nominal speed of 2000 RPM. Superior cooling options include natural convection and surface cooling, enabling continuous torque at standstill of 19.5 Nm and 28 Nm respectively. Its performance also features a maximum torque delivery of 60.6 Nm and current of 96.5 Amps. The motor's torque constant sits at 0.91 Nm/A and its windings offer resistance of 0.56 Ohms. It also includes a digital servo feedback, a DIN 6885-1 standard keyway on the main shaft, and a 22Nm blocking brake for added safety. Weighing about 22 kilograms, this motor utilizes a highly efficient brushless design with grease-lubricated bearings, making it maintenance-free. It is ideal for high power density applications such as roller feeds for industrial machinery. Incorporating an integrated temperature sensor in the windings, it prevents overheating, making it a professional and dependable installation choice.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

AC Servo Motor

Model

MDD093C-N-020-N2L-130PB2

Nominal Motor Speed

2000 RPM

Cooling Methods

Natural Convection, Surface Cooling

Continous Torque at Standstill (Natural Convection)

19.5 Nm

Continous Current at Standstill (Natural Convection)

21.4 Amps

Continous Torque at Standstill (Surface Cooling)

28 Nm

Continous Current at Standstill (Surface Cooling)

30.8 Amps

Maximum Torque

60.6 Nm

Maximum Current

96.5 Amps

Torque Constant (20 degrees Celsius)

0.91 Nm/A

Motor Winding Resistance (20 degrees Celsius)

0.56 Ohms

Motor Winding Inductance

6.1 millihenry

Thermal Time Constant (Natural Convection)

50 minutes

Thermal Time Constant (Surface Cooling)

45 minutes

Motor Weight

22 kilograms

Feedback System

Digital Servo Feedback

Shaft Type

Main Shaft with Keyway (DIN 6885-1)

Power Connection

Side B

Blocking Brake Present

Yes

Blocking Brake Torque

22 Nm

Blocking Brake Nominal Current

0.7 Amps

Blocking Brake Nominal Voltage

24 Volts

Blocking Brake Release Delay

70 milliseconds

Blocking Brake Clamping Delay

30 milliseconds

Blocking Brake Weight

1.1 kilograms

Overheat Protection

Temperature Sensor Integrated in Motor Windings

Maintenance

Maintenance free due to brushless design and grease-lubricated bearings

Application

High Power Density Applications (roller feeds for pressing, punching, and nibbling machines)

Installation

Professional Installation Required, with Relevant Safety Instructions Implemented.
