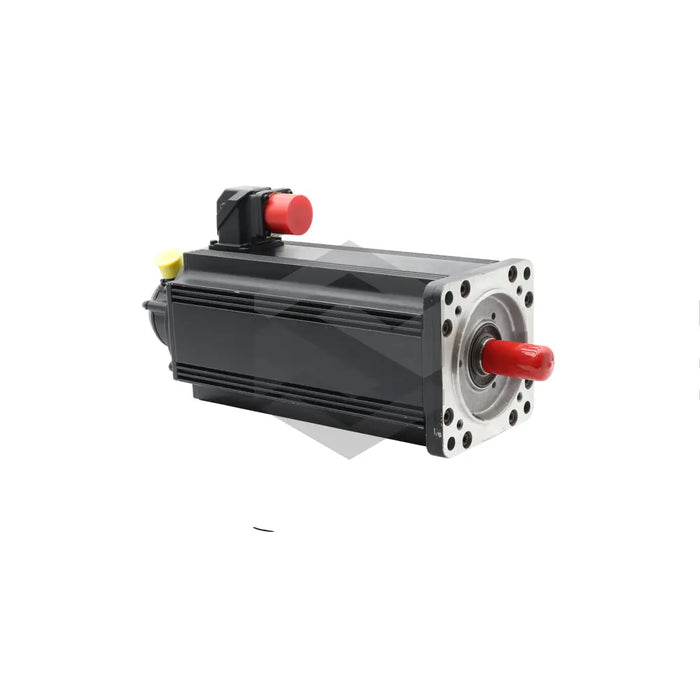

S image of MDD093C-N-030-N2L-110GR0

MDD093C-N-030-N2L-110GR0

by Bosch Rexroth Indramat
$2,807.38 - $13,083.03
$2,807.38
$2,807.38 - $13,083.03
$2,807.38

In Stock, Ships 1 - 3 Days

The MDD093C-N-030-N2L-110GR0 is a servo motor crafted by Bosch Rexroth Indramat. Constructed from low inertia materials, including rare-earth or iron oxide permanent magnets, this MDD motor upholds a standard design that maintains heat dissipation either through natural convection or surface cooling. Additional attributes include motor winding temperature supervision integrated with a temperature sensor, an IP65 protection rating due to its sealed housing and connectors, and a straightforward installation process. The flange design allows flexibility in mounting either as per design IM B5 or IM B14. It comes without a blocking brake, but this feature can be requested separately. The motor operates at a nominal speed of 3000 RPM and includes digital servo feedback. The power connection is located on the right side, and operates efficiently in the ambient temperature range of 0 to 45 degrees Celsius at an elevation between 0 and 1000 meters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Core Material

Laminated Core with Permanent Magnets

Optional Components

Blocking Brake, Rotor shaft, Encoder

Magnetic Materials

Rare-Earth or Iron Oxide

Protection Rating

IP65

Operating Mode

Maintenance-Free

Frame Size

093

Frame Length

C

Motor Winding Code

N

Design Type

Standard

Cooling Method

Natural Convection or Surface Cooling

Nominal Speed

3000 RPM

Output Shaft

Plain

Servo Feedback

Digital

Blocking Brake

Not Included

Power Connection

Right Side

Permissible Ambient Temperature

0 to 45 degrees Celsius

Permissible Site Elevation

0 to 1000 meters

Insulation Class

Class F
