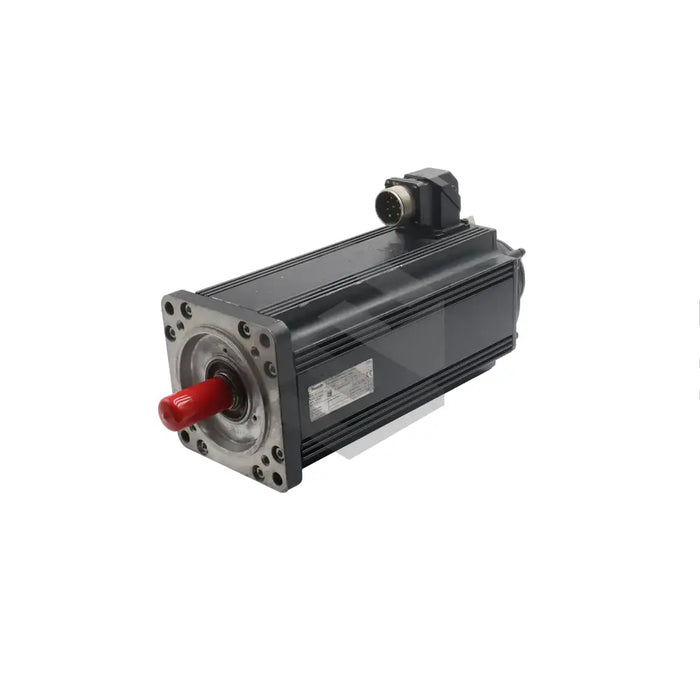

C image of MDD093C-N-030-N2L-110PA2 | Main (Front Left)

MDD093C-N-030-N2L-110PA2

by Bosch Rexroth Indramat
$2,394.81 - $13,083.03
$2,394.81
$2,394.81 - $13,083.03
$2,394.81

In Stock, Ships 1 - 3 Days

The MDD093C-N-030-N2L-110PA2 product, managed by Bosch Rexroth Indramat, is a synchronous servo motor. The speed of this industrial motor is in sync with the input current frequency. Its integrated Bosch controller regulates motor speed and position while receiving power through its own cord. The motor offers four locations for power connectivity, including on side A of the housing. It also features an encoder for evaluating speed, torque, and position, relaying real-time motor data to the controller. The MDD093C-N-030-N2L-110PA2 motor comes with a standard housing and convection cooling design, with an optional cooling fan for surface cooling. The shaft includes a keyway, aligned with DIN 6885-1, ensuring effective torque transfer. The servo motor operates at a speed of 3000 RPM, with a centering diameter of 110mm, a length of 386mm, a 24mm shaft diameter, and a flange size of 140mm with 11mm diameter mounting holes. It also provides a holding torque of 22Nm in the blocking brake.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous servo motor

Power Connection Location

Side A of the housing

Encoder Attached

Yes

Housing Type

Standard

Cooling Type

Convection, optional surface cooling with added fan

Shaft Type

Plain with keyway, complies with DIN 6885-1

Speed Rating

3000 RPM

Centering Diameter

110 millimeters

Motor Length

386 millimeters

Motor Shaft Diameter

24 millimeters

Motor Flange Size

140 millimeters

Motor Flange Mounting Hole Diameter

11 millimeters

Blocking Brake Holding Torque

22 Nm.
