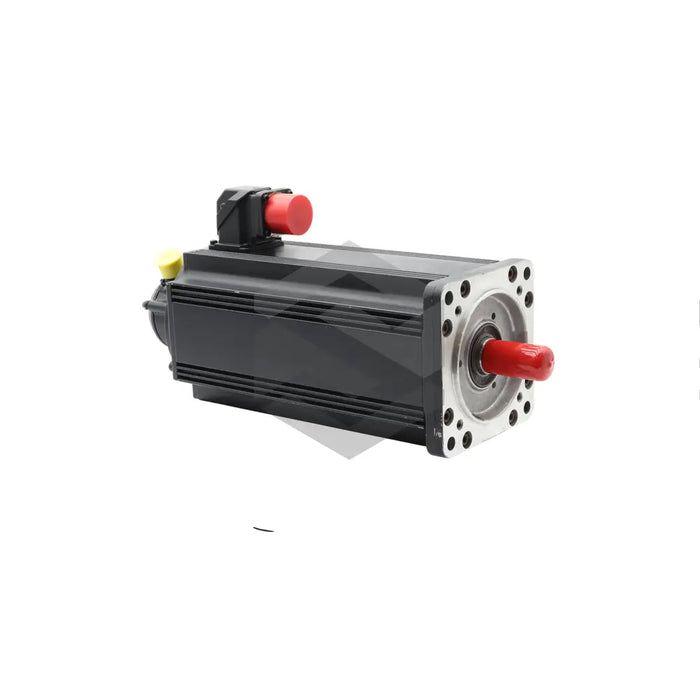

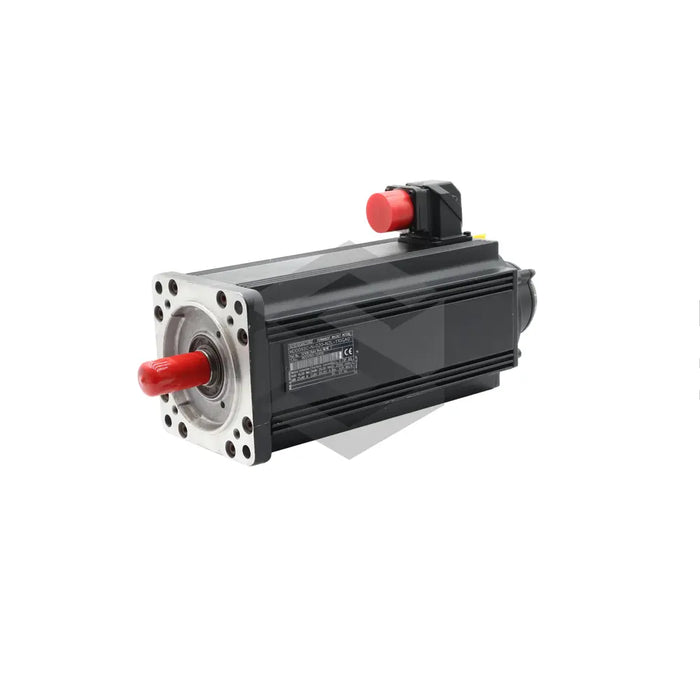

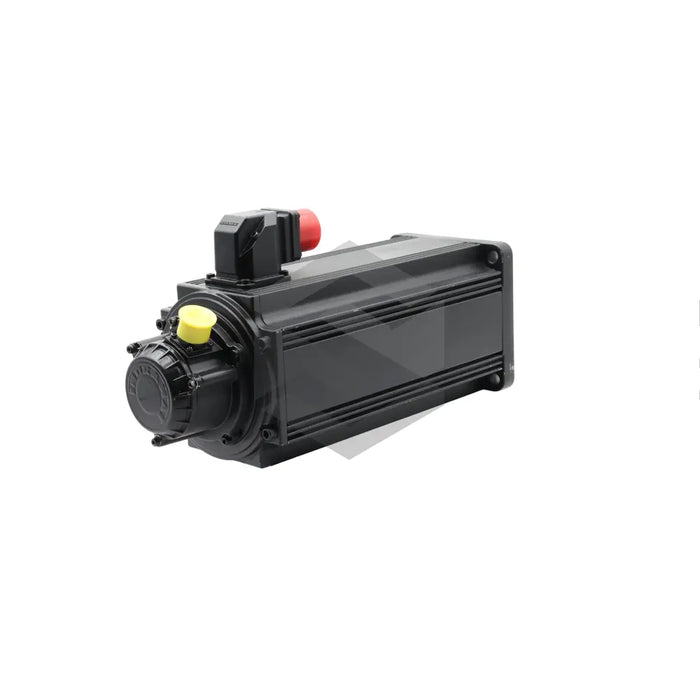

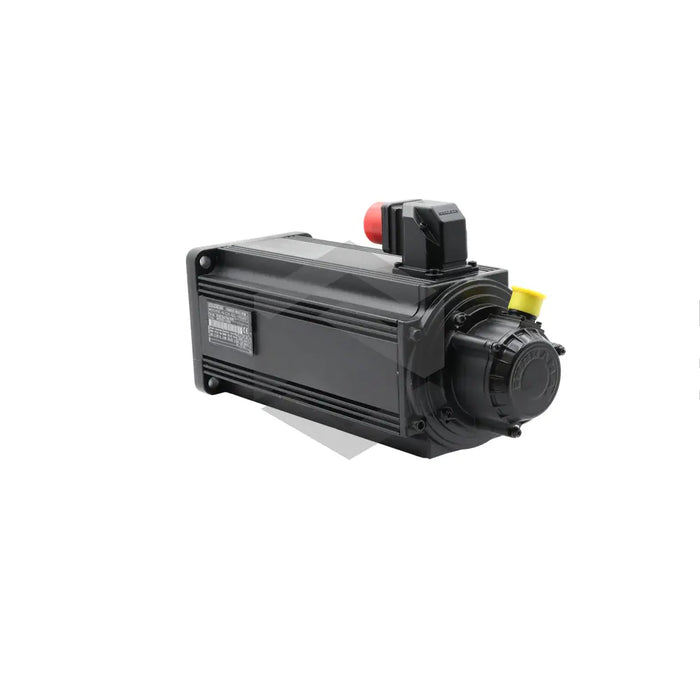

C image of MDD093C-N-030-N2L-110PB1 | Main (Front Left)

MDD093C-N-030-N2L-110PB1

by Bosch Rexroth Indramat
$2,395.37 - $13,083.03
$2,395.37
$2,395.37 - $13,083.03
$2,395.37

In Stock, Ships 1 - 3 Days

The MDD093C-N-030-N2L-110PB1, produced by Bosch Rexroth Indramat, is a high-performance servo motor, best utilized in industrial settings, particularly in the operation of robotics, handling equipment, and transfer facilities. Its brushless design and lifetime-lubricated bearings afford it maintenance-free functionality. Owing to their significant power density, these motors excel in highly dynamic applications, notably roller feeds for pressing, nibbling, and punching devices, and tool-changing mechanisms. This IP65-rated, dustproof motor provides continuous torque values of 19.5 Nm (natural convection) and 20.8 Nm (surface cooling). Its blocking brake, which electrically locks the output shaft at standstill, assures a safe halt when power is off and offers a holding torque of 11 Nm. The recommended operating ambient temperature spans from 0 to 45 degrees Celsius, and rated speed stands at 3000 RPM. The shaft is designed to comply with DIN 6885-1, offering compatibility with digital servo feedback-enabled controllers.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Model

MDD093C-N-030-N2L-110PB1

Applications

Robotics, handling equipment, transfer facilities

Design

Brushless, Bearings with life-time lubrication

IP rating

IP65 Dustproof

Continuous Torque (natural convection)

19.5Nm

Continuous Torque (surface cooling)

20.8Nm

Continuous Current at Standstill (natural convection)

32.2Amps

Continuous Current at Standstill (surface cooling)

34.3Amps

Theoretical Maximum Torque

60.6Nm

Peak Current

145Amps

Additional Feature

Electrically-actuated blocking brake

Blocking Brake Holding Torque

11Nm

Motor Housing Design

Standard

Cooling Options

Natural convection or surface cooling

Recommended Ambient Temperature

0 to 45 degrees Celsius

Rated Speed

3000 RPM

Balance Class

Standard

Shaft B End

Standard

Keyway Standard

Complies with DIN 6885-1

Feedback Type

Digital Servo Feedback
