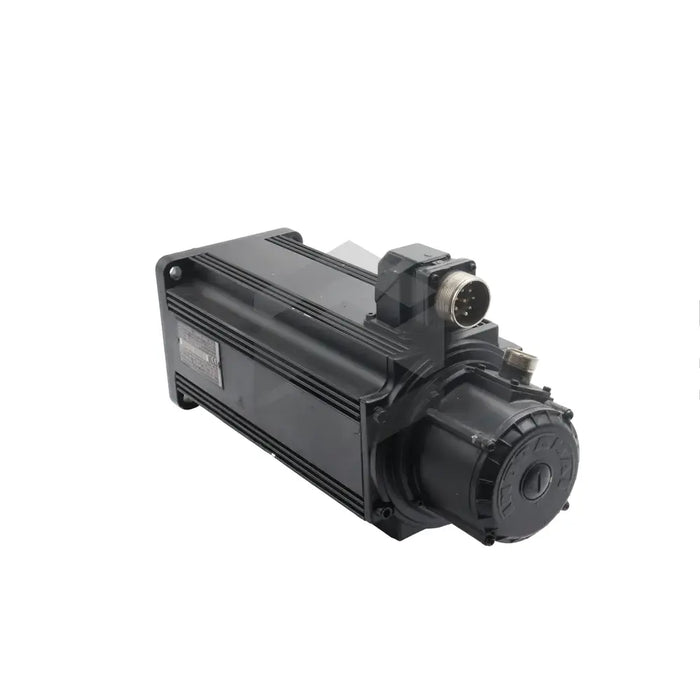

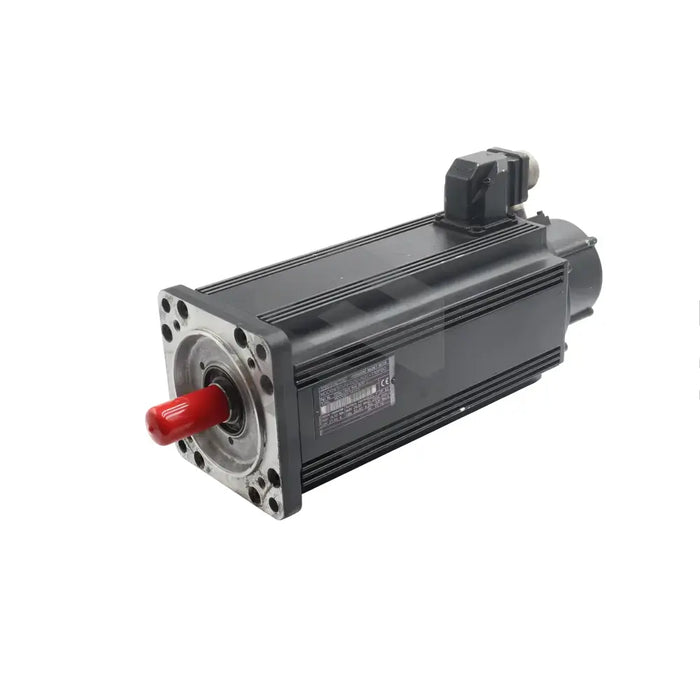

MDD093C-N-030-N2L-110PB2

Original price $5,927.78 - Original price $5,927.78
Original price
$5,927.78
$5,927.78 - $5,927.78
Current price $5,927.78
Available, Shipping Varies
Request a quote
The Bosch Rexroth Indramat MDD093C-N-030-N2L-110PB2 is a high-performing MDD synchronous servo motor, known for its electronic commutation and superior load capacity. It is often utilized in industrial applications such as robotics, textile machinery, and food processing equipment. The motor is equipped with digital servo feedback to measure its relative indirect position, with a system accuracy of ±0.5 angular minutes. The motor's core features include a maximum theoretical torque of 60.6Nm, a rotor inertia of 42 x 10-4 kgm2, and a nominal speed of 3000 RPM. Its robust black prime varnish encasing offers protection against weathering, acid damage, and yellowing. Thanks to its IP 65 rating, the motor excludes water and solid extraneous materials. The MDD093C-N-030-N2L-110PB2 uses natural convection and surface cooling for heat dissipation and holds a Balance Class R designation, which makes it suitable for challenging applications.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: MDD Synchronous Servo Motors
  • Model Number: MDD093C-N-030-N2L-110PB2
  • Key Feature: Electronic Commutation
  • Use Cases: Robotics, Machine Tools, Handling Equipment, Textile Machines, Food Processing and Packaging Machines
  • Commutation Features: Digital Servo Feedback, ±0.5 Angular Minutes Accuracy, Data Memory
  • Centering Diameter: 110mm
  • Nominal Speed: 3,000 revolutions per minute
  • Rotors Moment of Inertia: 42 x 10-4 kgm2
  • Theoretical Maximum Torque: 60.6Nm
  • Stator`s protection: Thermal Sensor
  • Housing: Covered with black prime varnish
  • Ingress Protection Rating: IP 65
  • Cooling Mechanisms: Natural Convection and Surface Cooling
  • Balance Class: R
  • Maximum Installation Altitude: 1,000m above mean sea level
