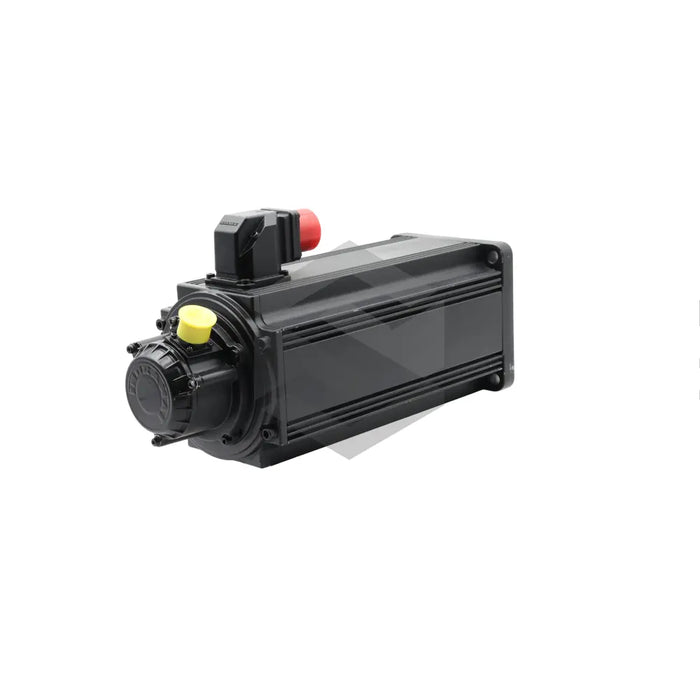

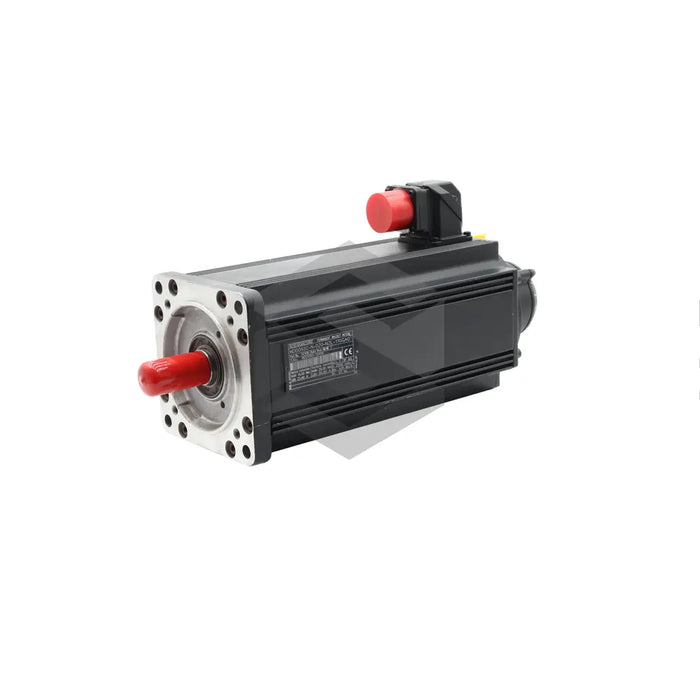

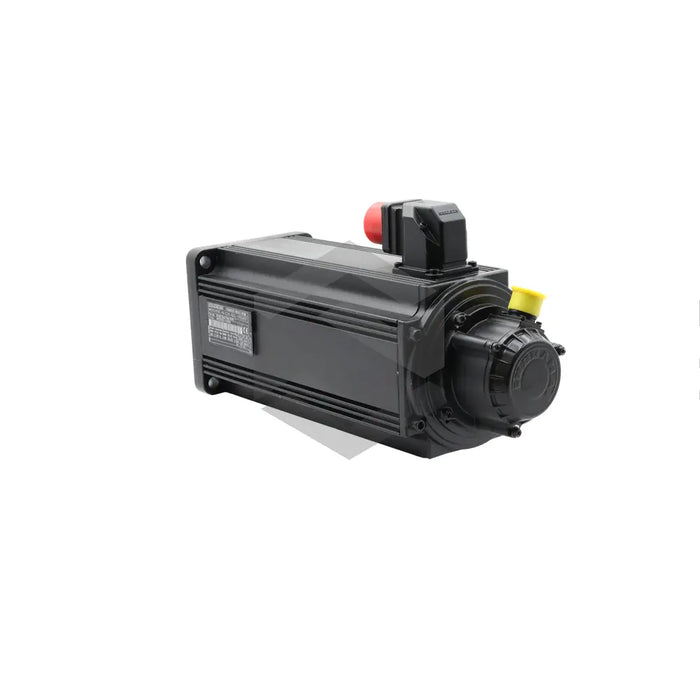

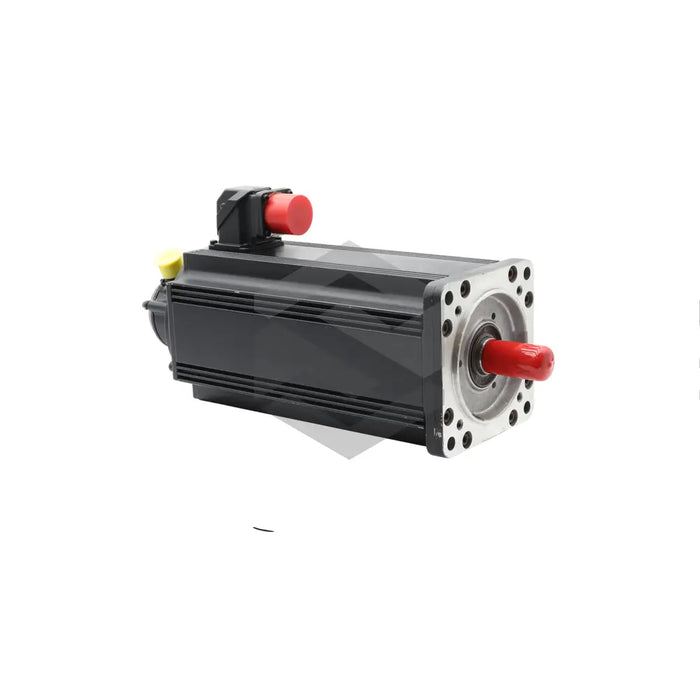

series image of MDD093C-N-030-N2L-130PA1

MDD093C-N-030-N2L-130PA1

by Bosch Rexroth Indramat
$4,843.01 - $4,843.01
$4,843.01
$4,843.01 - $4,843.01
$4,843.01
Available, Shipping Varies
The Bosch Rexroth Indramat MDD093C-N-030-N2L-130PA1 model is a representation of high-quality engineering in AC servo motors, synchronous motors, drive controllers, and electronic controllers. With a maximum theoretical torque of 60.6 Nm, it can operate in temperatures from 0 to 45 degrees centigrade. It allows a maximum elevation of 1000 meters and can withstand storage and transit temperatures between -20 to +80 degrees Celsius. The electrical power connection requires a minimum 0.75 mm2 diameter cable and is located on side A of the motor, with both power and feedback cables linked directly to the motor. This UL standard, IP65 rated model with F class insulation also features a durable black-coated housing. It includes a standard shaft and blocking brake, while its brushless, lubricated bearing construction ensures optimal functional stability.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: AC Servo Motor
  • Model: MDD093C-N-030-N2L-130PA1
  • Maximum Theoretical Torque: 60.6 Nm
  • Working Temperature Range: 0 to 45 degree centigrade
  • Maximum Deployment Elevation: 1000 meters above sea level
  • Storage and Transit Temperature Range: -20 to +80 degrees Celsius
  • Required Cable Diameter for Electrical Connection: 0.75 mm2
  • Location of Electrical Connection: Side A of the motor
  • Design Standards: UL standards
  • Protection Class: IP65
  • Insulation Classification: F Class
  • Housing Coating: Black, less than 40 µm thick, resistant to weathering, chalking, diluted acids
  • Shaft: Standard with Blocking Brake
  • Moment of Inertia: 0.000106 kgm2
  • Motor Build: Brushless with Lubricated Bearing
