subseries image of MDD093C-N-030-N2L-130PB0

MDD093C-N-030-N2L-130PB0

by Bosch Rexroth Indramat
Request a quote

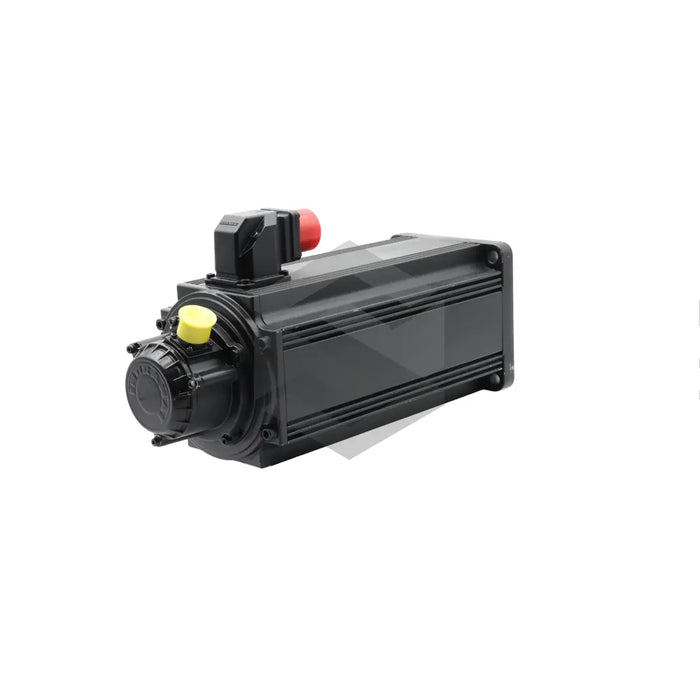

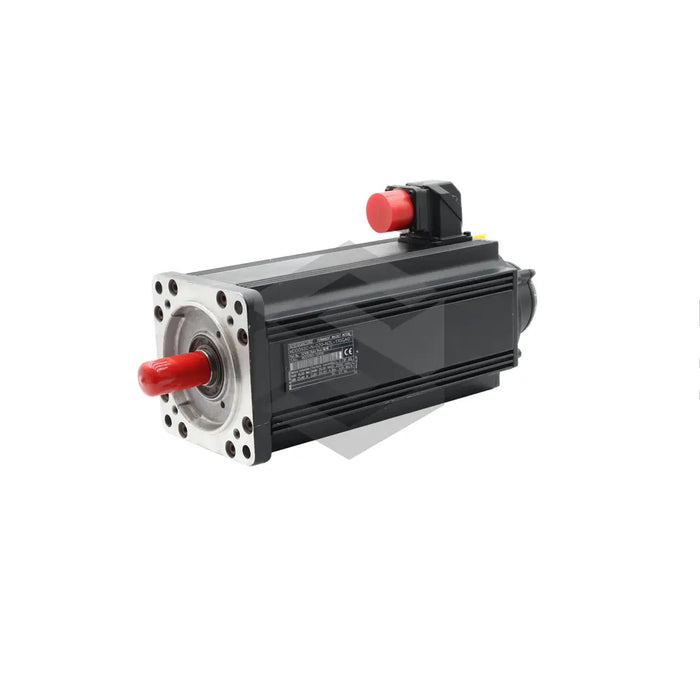

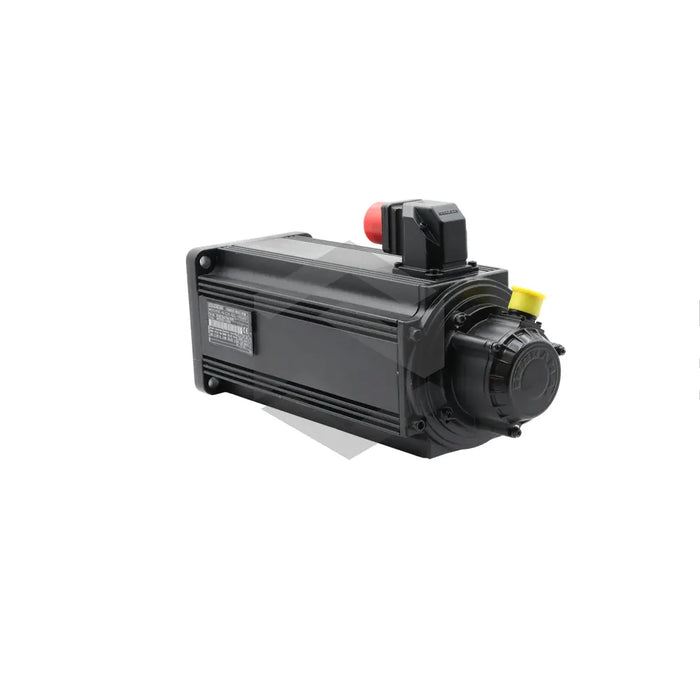

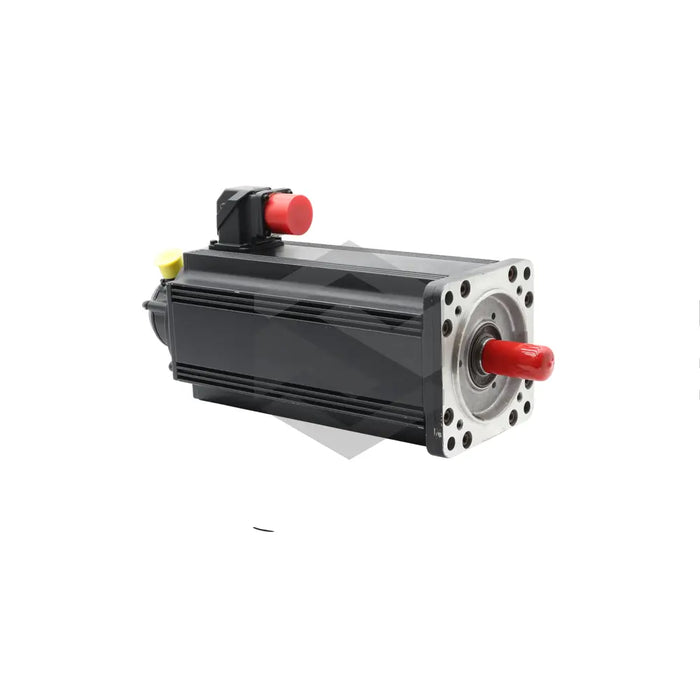

The MDD093C-N-030-N2L-130PB0 is a versatile servo motor produced by Bosch Rexroth Indramat. Designed for numerous applications including machine tools, food processing and textile machines, this compact and highly capable motor is marked by its low inertia and ability to withstand high overload. Its suitability to high-speed cutting and grinding applications is thanks to its high-contouring accuracy at elevated speed rates. The motor is maintenance-free due to its brushless design and lifetime-lubricated bearings, with an IP-65 rated, acid and weather resistant black prime varnished housing. Its high cyclic load capacity comes from electric commutation, and it also features a temperature monitoring built-in thermal sensor in its stator winding. Moreover, it employs both natural convection and surface cooling, suitable for handling extreme loads. Optimally, it operates within a 0oC to 45oC range.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MDD Servo Motors
  • Model: MDD093C-N-030-N2L-130PB0
  • Balance Class: R per DIN VDE 0530
  • Design: Brushless and maintenance-free
  • Housing: Black prime varnish-coated; IP 65 protection rating
  • Commutation: Electric
  • Output Shaft: Keyway with shaft sealing ring
  • Built-In Sensor: Thermal sensor in stator winding
  • Cooling Mechanism: Natural convection and surface cooling
  • Recommended Ambient Temperature Range for Operation: 0 to 45 degrees Celsius
  • Applications: Textile machines, food processing machines; machine tools; punching, pressing, nibbling machines; tool changing devices
  • Features: Compact build, high overload capability; low inertia; high contouring accuracy at high speed rates; high power density; high cyclic load capacity; resistance against dilute acids, lyes, chalky buildup, weathering, yellowing.
