Original price $6,551.57 - Original price $6,551.57
Original price
$6,551.57 - $6,551.57
Current price $6,551.57
In Stock, Ships 3 - 5 Days

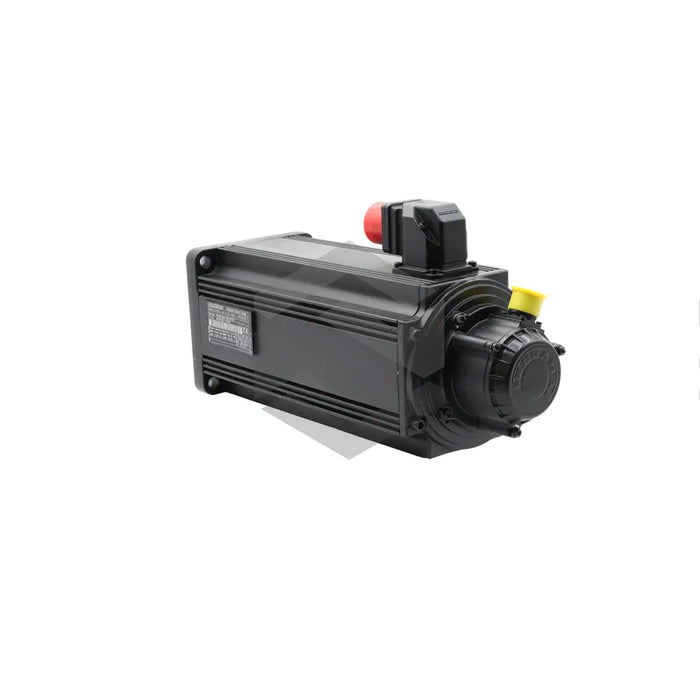

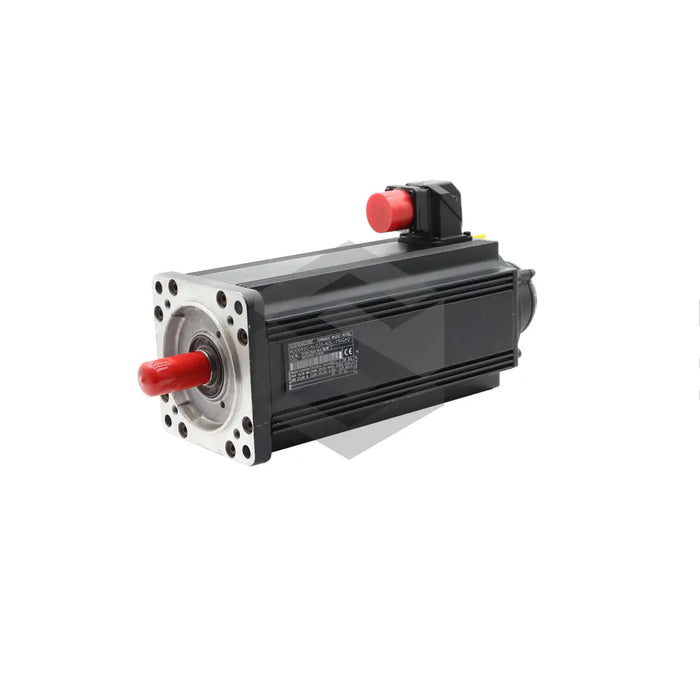

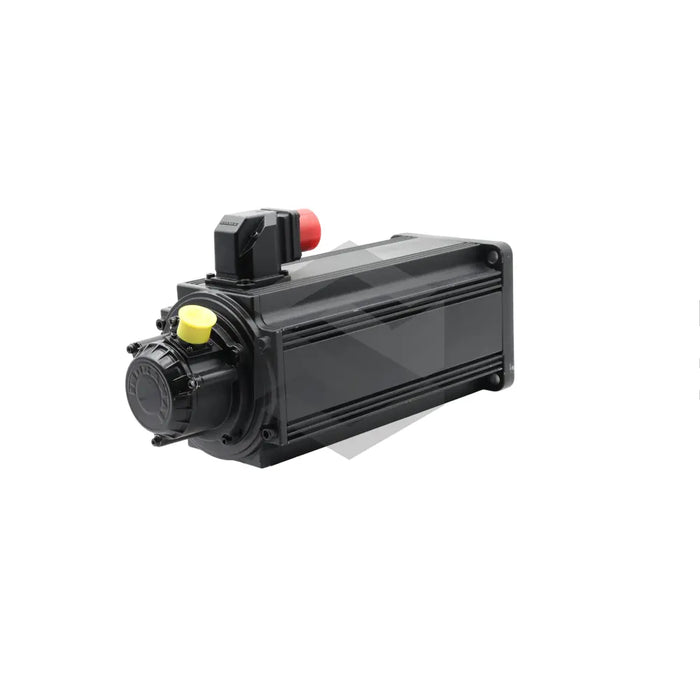

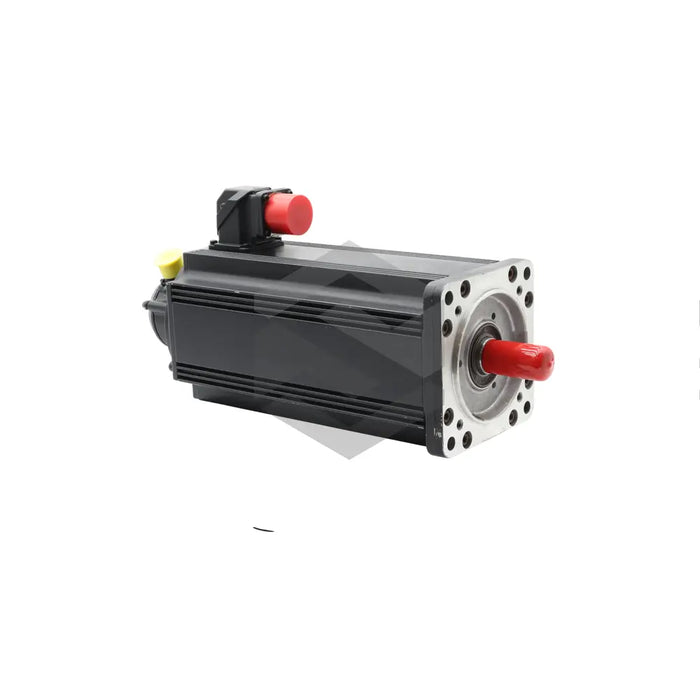

The MDD093C-N-030-N2L-130PB1 is a digital AC servo motor made by Bosch Rexroth Indramat, a leading global manufacturer of high-efficiency industrial components. The product features a shaft with keyways and sealing to safeguard the motor housing from liquid infiltration. Using digital servo feedback, the motor provides precise speed control and rotor positioning. The model includes a blocking brake with a holding torque of 11 Nm, harnessed through a closed-circuit principle, which is activated by a state-of-art digital drive controller. With a mass of 22 Kg, this motor can develop a maximum torque of 60.6 Nm while consuming up to 145 Amps. A built-in temperature sensor on the winding prevents overheating. Its maximum rotation is 3000 RPM, and it also features a power connector on side B. With advanced heat transfer from the stator windings to the outer wall of the motor housing, the servo motor balances torque and inertia efficiently, ensuring optimum response under varying load conditions.
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MDD093C-N-030-N2L-130PB1
  • Component Type: AC Servo Motor
  • Feedback: Digital Servo Feedback
  • Brake Type: Blocking Brake
  • Brake Torque: 11 Nm
  • Motor Weight: 22 kilograms
  • Maximum Torque: 60.6 Nm
  • Maximum Current: 145 amps
  • Temperature Control: Built-In Windings Sensor
  • Winding Inductance: 2.7 mH
  • Maximum Speed: 3000 RPM
  • Power Connector Location: Side B
