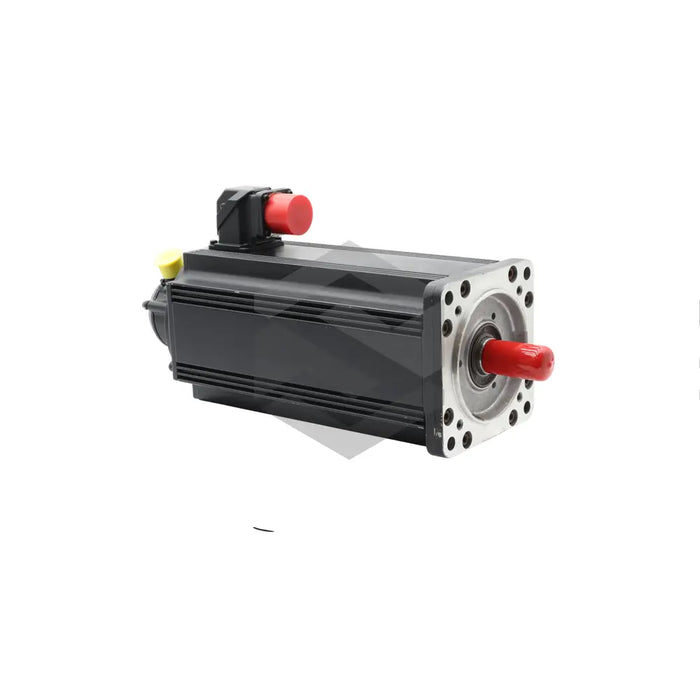

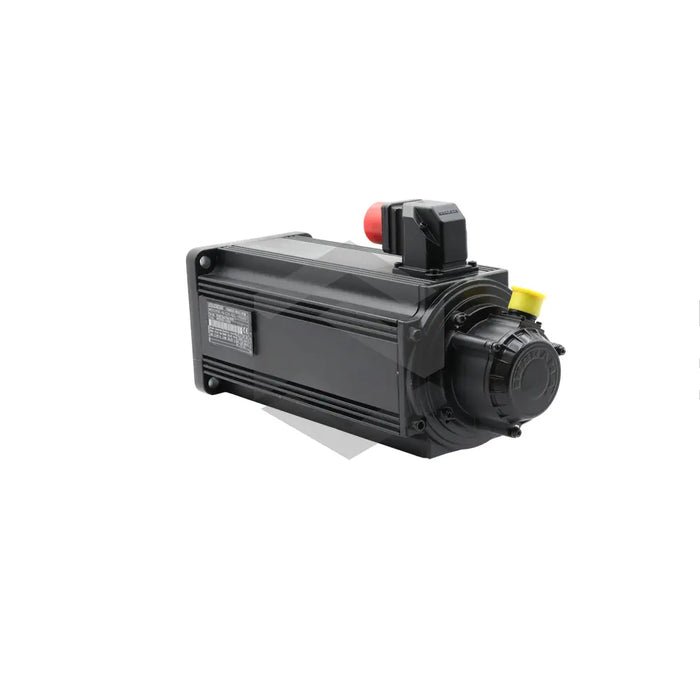

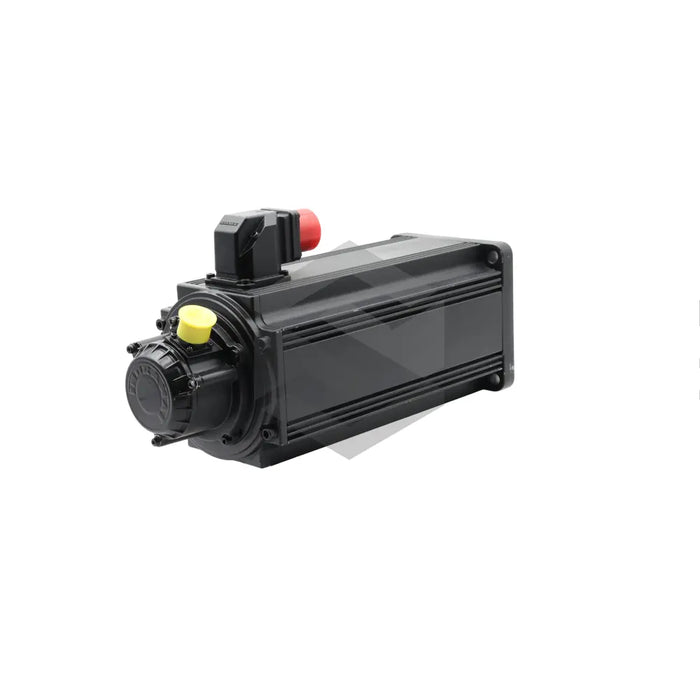

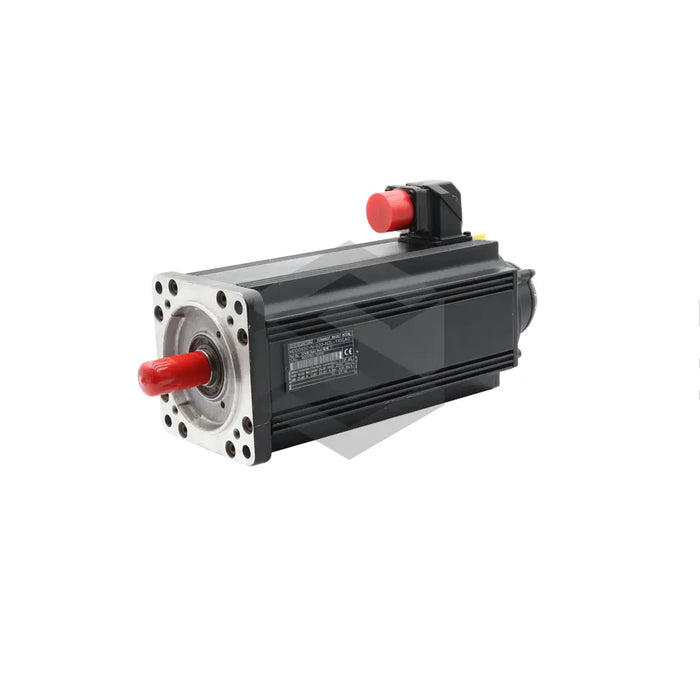

series image of MDD093C-N-030-N2M-110PA0

MDD093C-N-030-N2M-110PA0

by Bosch Rexroth Indramat
$12,693.92 - $12,693.92
$12,693.92
$12,693.92 - $12,693.92
$12,693.92
In Stock, Ships 1 - 2 Days
The MDD093C-N-030-N2M-110PA0, manufactured by Bosch Rexroth Indramat, is an AC servo motor from their MDD product range. This motor has a standard housing outfitted for natural convection and surface cooling, with its output varying according to the cooling method. With surface cooling, it offers higher heat dispersal, allowing the motor to provide increased output torque - up to a continuous 20.8 Nm at standstill. Conversely, under natural convection, it delivers 19.5 Nm. It produces continuous current outputs of 34.3 Amps and 32.2 Amps with surface cooling and natural convection respectively. The motor features a multiturn absolute encoder supporting digital servo feedback and has a DIN 6885-1 standard keyway equipped shaft. No blocking motor is installed in it. It is a flanged motor with a centering diameter of 110mm and a housing length of 386mm, weighing 22kg. For optimal performance, it should be operated at temperatures between 0 and 45 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Product Line: MDD
  • Manufacturer: Bosch Rexroth Indramat
  • Type: AC Servo Motor
  • Housing: Standard, Suited for natural convection and surface cooling
  • Continuous Torque Output at Standstill: 19.5 Nm (natural convection), 20.8 Nm (surface cooling)
  • Continuous Current Output at Standstill: 32.2 Amps (natural convection), 34.3 Amps (surface cooling)
  • Thermal Time Constant: 50 minutes (natural convection), 45 minutes (surface cooling)
  • Nominal Speed: 3000 RPM
  • Encoder Type: Multiturn Absolute Encoder
  • Feedback: Digital Servo Feedback
  • Shaft Type: With Keyway, According to DIN 6885-1
  • Power Connection Location: Side A
  • Blocking Brakes: Not included
  • Centering Diameter: 110 mm
  • Motor Housing Length: 386 mm
  • Weight: 22 kg
  • Mounting Style: Flange-mounted
  • Flange Size: 140 mm
  • Housing Protection Rating: IP65
  • Optimal Performance Temperature: 0 to 45 degrees Celsius.
