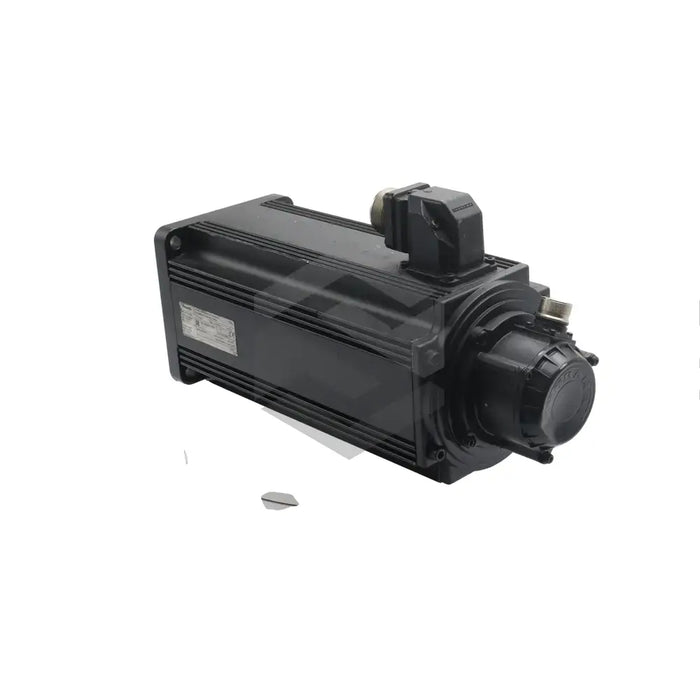

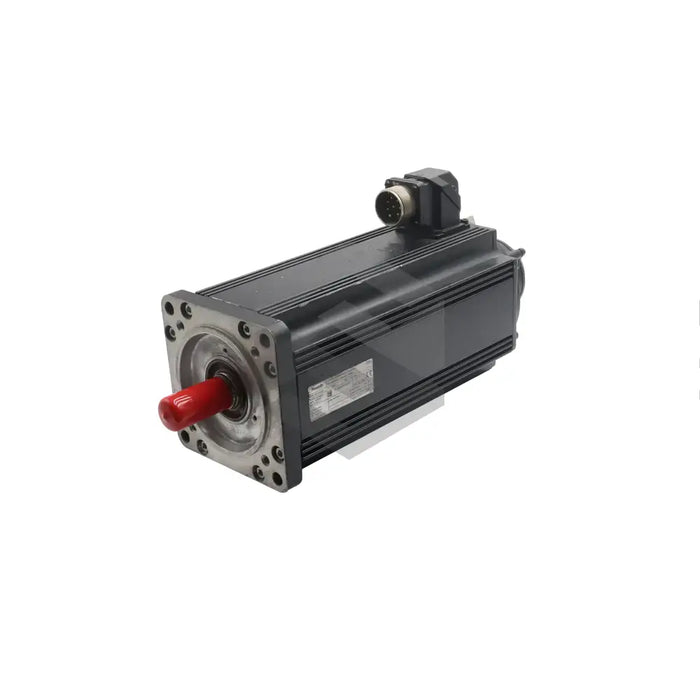

MDD093C-N-030-N2M-110PA2

by Bosch Rexroth Indramat
$2,405.68 - $7,540.00
$2,405.68
$2,405.68 - $7,540.00
$2,405.68

In Stock, Ships 1 - 3 Days

Produced by Bosch Rexroth Indramat, the MDD093C-N-030-N2M-110PA2 is a powerful permanent magnet-excited AC motor with electronic commutation, ideal for use with packaging machines, robotics, and handling equipment. This motor works synergistically with digital drive controllers to facilitate an efficient automation system. Standard housing allows heat to dissipate naturally, guaranteeing motor longevity. Operating at a nominal speed of 3000 rpm and a peak current of 145 Amperes, this 22 kg motor has a thermal time constant of 50 minutes. The brushless design and robust temperature monitoring promote operational reliability and minimal maintenance. The 22 Nm rated blocking brake ensures a safe standstill when power is cut. The motor is designed for maximum compatibility, featuring a customized mounting flange, a keyway output shaft, and digital servo feedback with a multiturn absolute encoder. It has an insulation class of F and a protection class of IP 65.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

AC Motor

Intended Use

Packaging machines, Robotics, Transfer facilities, Handling equipment

Housing Design

Standard

Nominal Speed

3000 per minute

Peak Current

145 Amperes

Weight

22 kg

Thermal Time Constant

50 minutes

Blocking Brake Rated

22 Nm

Blocking Brake Voltage

DC 24 Volts

Blocking Brake Current

0.7 Amperes

Blocking Brake Weight

1.1 kgs

Mounting Flange Diameter

130 mm (Customized), 110 mm (Standard)

Output Shaft

Keyway Design

Servo Feedback

Digital with Integrated Multiturn Absolute Encoder

Winding Resistance

0.25 Ohms

Torque Constant

0.61 Nm/A

Insulation Classification

F

Protection Class

IP 65

Ambient Temperature

0 – 45 degrees C

Installation Height

up to 1000 meters
