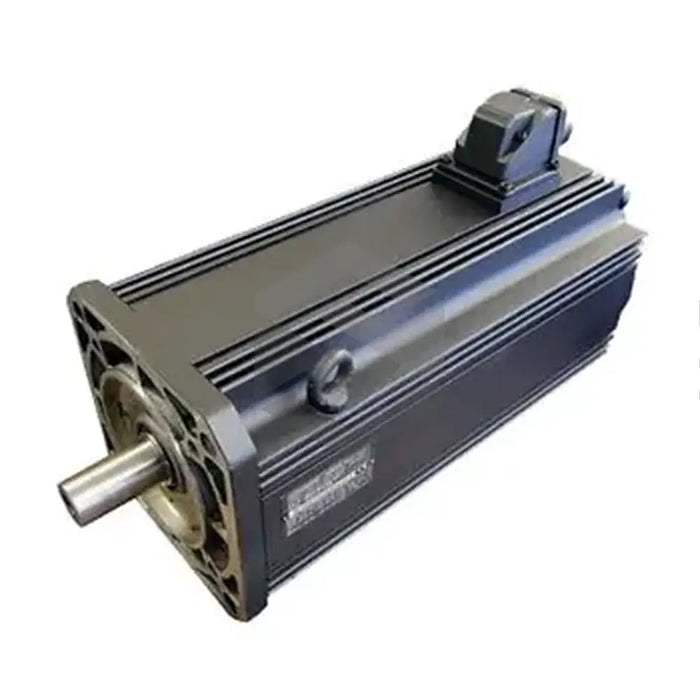

P image of MDD112A-N-030-N2M-130PA0

MDD112A-N-030-N2M-130PA0

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth is a reputable manufacturer of appliances like AC servo motors, spindle motors, synchronous motors, and various converters. The product in focus, MDD112A-N-030-N2M-130PA0, is an AC servo motor boasting a maximum speed of 3000 rpm and a torque of 31.3 Nm. The motor has a capacity for a maximum current draw of 55.3 amps and employs a signature simple shaft for torque transfer. Key features include a balancing class of N, a winding resistance of 0.06 ohms, and a thermal time constant of 100 minutes. Furthermore, the motor has no holding brakes, incorporates digital servo feedback, and comes with a centering diameter of 130 mm. Notably, it has a weight of 25 kg and showcases a black-coated housing suitable for both natural and surface cooling. The MDD112A-N-030-N2M-130PA0 is adaptable to tough conditions, courtesy of its F insulation class and IP65 protection category.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

Bosch Rexroth AC Servo Motor MDD112A-N-030-N2M-130PA0

Maximum speed

3000 revolutions per minute

Maximum current

55.3 amps

Maximum torque

31.3 Nm

Torque constant

0.61 Nm/A

Winding inductivity

6.8 mH

Balancing class

N

Winding resistance

0.06 ohms

Centering diameter

130 mm

Thermal time constant

100 minutes

Holding brake

No

Shaft type

Simple

Constant torque at standstill

10.5 Nm

Continuous current at standstill

17.3 A

Insulation class

F

Protection category

IP65

Feedback

Digital servo feedback with integrated multiturn encoder

Power connection location

A-side

Rotor type

Permanent magnet

Rotor components material

Iron oxide or rare-earth magnetic components

Weight

25 kg

Housing features

Suitable for natural and surface cooling

Moment of inertia

61 x 10-4 kgm2

Coating

Black, thickness < 40 µm
