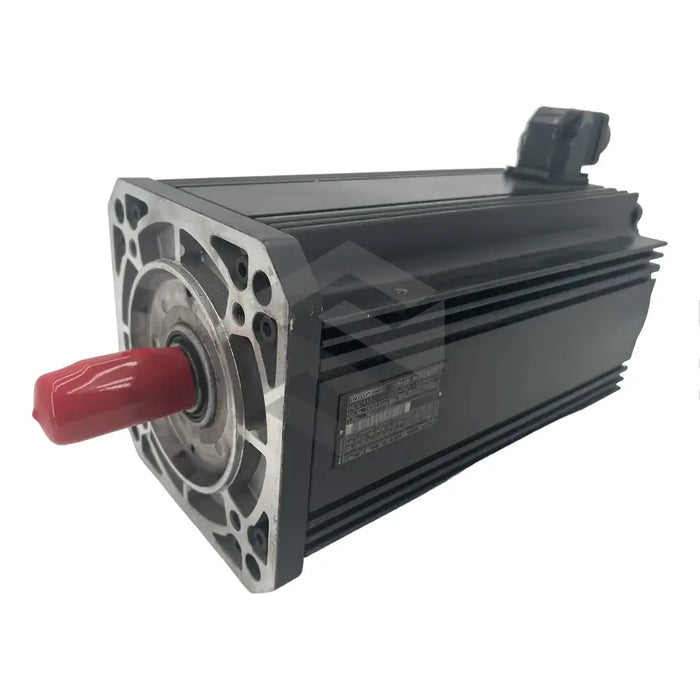

product Main (Front Left) image of MDD112C-N-020-N2L-130PB1

MDD112C-N-020-N2L-130PB1

by Bosch Rexroth Indramat
$1,260.00 - $1,260.00
$1,260.00
$1,260.00 - $1,260.00
$1,260.00
In Stock, Ships Today
The MDD112C-N-020-N2L-130PB1 is an AC servomotor produced by Bosch Rexroth Indramat. Known for its high dynamism due to a positive torque-to-inertia ratio, this motor showcases a standard centering diameter of 130mm and is operable between 0°C and 45°C temperatures. It’s ideal for usage in printing, packaging and textile machines, while its protection against water penetration and built-in temperature sensor guarantee longevity and safety by averting overload damage. The device demonstrates a blocking brake of 14Nm, has a theoretical maximum torque of 97.3Nm and operates at a maximum elevation of 1,000m above sea level. With its high cyclic load capacity, the MDD112C-N-020-N2L-130PB1 is designed for continuous stop-start operations. The motor also features lifelong-lubricated bearings and a moment of inertia of 170 x 10-4 kgm2. The servomotor's 462mm length, resistance to dilute acids and lyes, along with its IP 65 protective rating, make it a robust and reliable choice.
30 Day Warranty
Technical Specifications
  • Product Manufacturer: Bosch Rexroth Indramat
  • Product Model: MDD112C-N-020-N2L-130PB1
  • Usage: Printing, packaging and textile machines
  • Operating Temperature: 0°C to 45°C
  • Centering Diameter: 130mm
  • Protection: Water penetration resistant
  • Physical Properties: Housing coat may peel with frequent steam cleaning
  • Installation Orientation: Should not have fluid accumulation when installed upright
  • Maximum Torque: 97.3Nm
  • Bearing: Floating, absorbs radial forces during operation
  • Sealing: Shaft fitted with a sealing ring
  • Precision: High
  • Blocking Brake: 14Nm
  • Lubrication: Bearings are lubricated for a lifetime
  • Cyclic Load Capacity: High, supports continuous start-stop operations
  • Maximum Installation Elevation: 1,000m above sea level
  • Protection Level: IP 65
  • Coating: Resistant to dilute acids and lyes
  • Rotor: 170x10-4 kgm2 moment of inertia
  • Length: 462mm
  • Power Connector: Minimum 4mm2 cross-section, for natural convection cooling mode
  • Packaging: Transported in custom military-grade packaging
