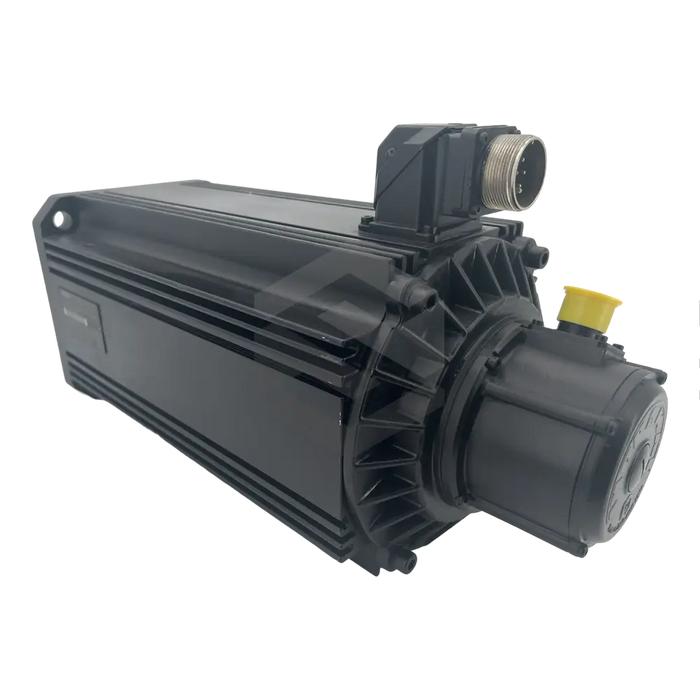

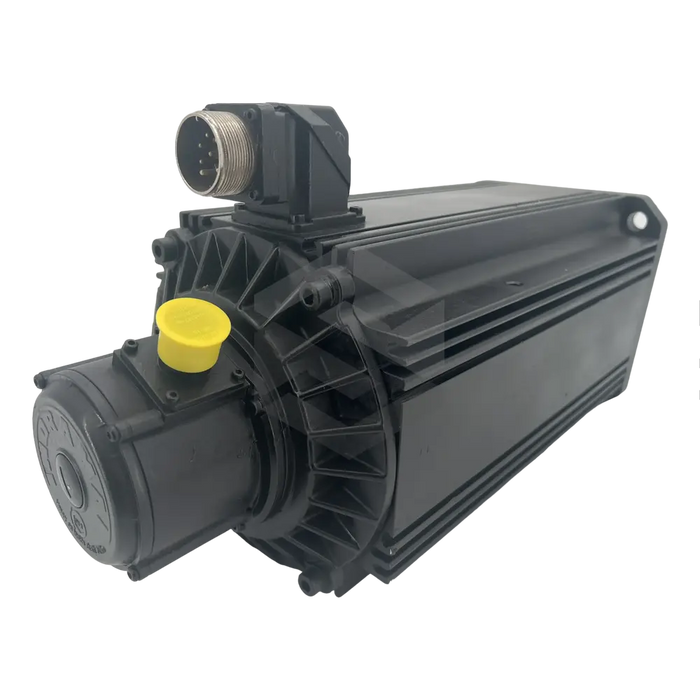

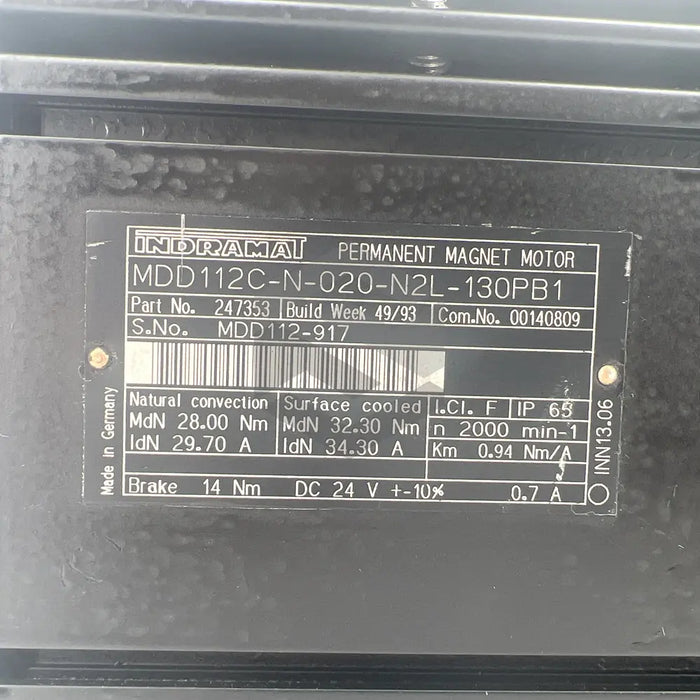

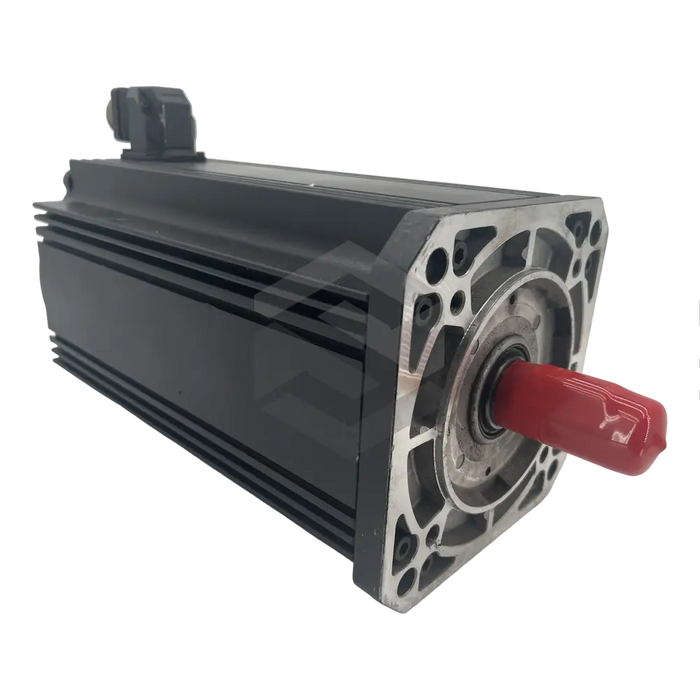

C image of MDD112C-N-020-N2L-130PB1 | Main (Front Left)

MDD112C-N-020-N2L-130PB1

by Bosch Rexroth Indramat
$2,851.00 - $22,722.63
$22,722.63
$2,851.00 - $22,722.63
$22,722.63

In Stock, Ships 1 - 3 Days

The MDD112C-N-020-N2L-130PB1 is an AC servomotor produced by Bosch Rexroth Indramat. Known for its high dynamism due to a positive torque-to-inertia ratio, this motor showcases a standard centering diameter of 130mm and is operable between 0°C and 45°C temperatures. It’s ideal for usage in printing, packaging and textile machines, while its protection against water penetration and built-in temperature sensor guarantee longevity and safety by averting overload damage. The device demonstrates a blocking brake of 14Nm, has a theoretical maximum torque of 97.3Nm and operates at a maximum elevation of 1,000m above sea level. With its high cyclic load capacity, the MDD112C-N-020-N2L-130PB1 is designed for continuous stop-start operations. The motor also features lifelong-lubricated bearings and a moment of inertia of 170 x 10-4 kgm2. The servomotor's 462mm length, resistance to dilute acids and lyes, along with its IP 65 protective rating, make it a robust and reliable choice.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Manufacturer

Bosch Rexroth Indramat

Product Model

MDD112C-N-020-N2L-130PB1

Usage

Printing, packaging and textile machines

Operating Temperature

0°C to 45°C

Centering Diameter

130mm

Protection

Water penetration resistant

Physical Properties

Housing coat may peel with frequent steam cleaning

Installation Orientation

Should not have fluid accumulation when installed upright

Maximum Torque

97.3Nm

Bearing

Floating, absorbs radial forces during operation

Sealing

Shaft fitted with a sealing ring

Precision

High

Blocking Brake

14Nm

Lubrication

Bearings are lubricated for a lifetime

Cyclic Load Capacity

High, supports continuous start-stop operations

Maximum Installation Elevation

1,000m above sea level

Protection Level

IP 65

Coating

Resistant to dilute acids and lyes

Rotor

170x10-4 kgm2 moment of inertia

Length

462mm

Power Connector

Minimum 4mm2 cross-section, for natural convection cooling mode

Packaging

Transported in custom military-grade packaging
