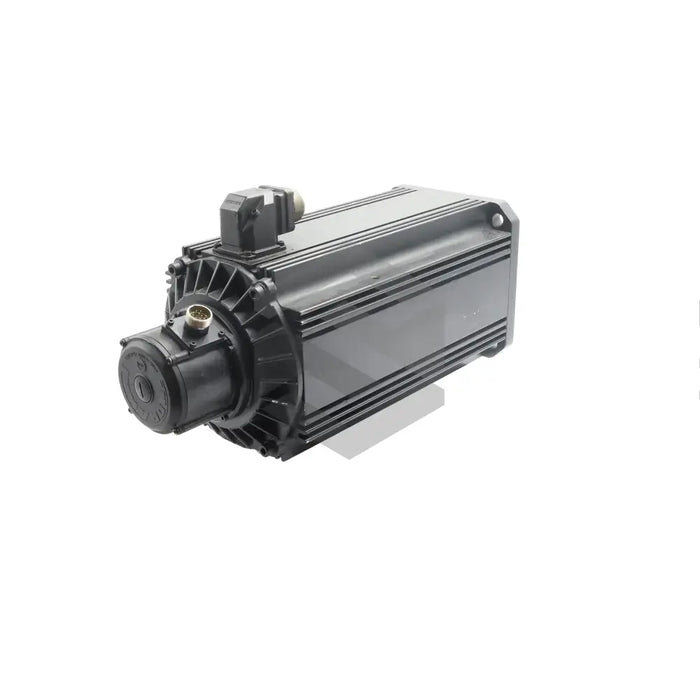

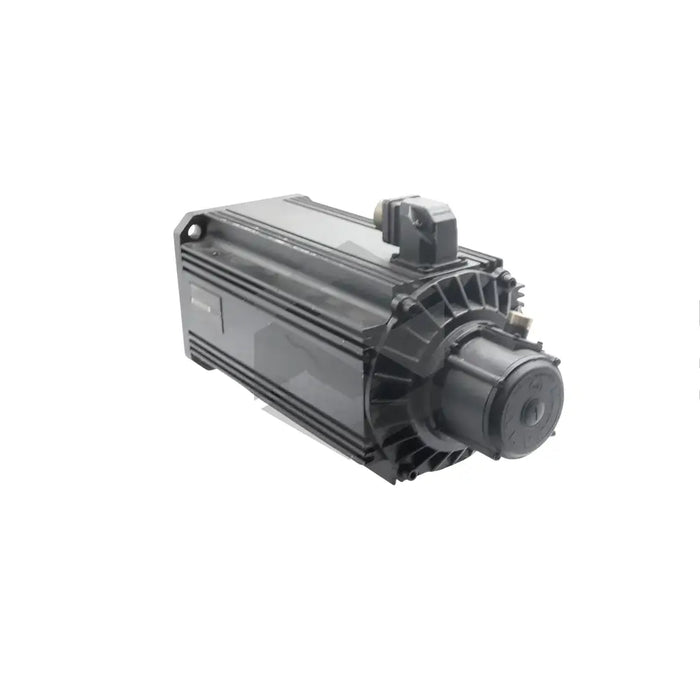

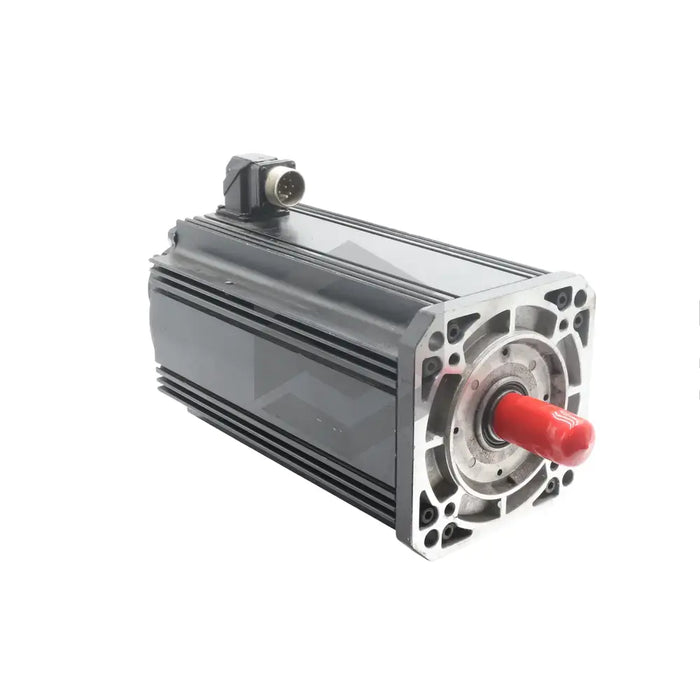

series image of MDD112C-N-020-R2L-180GA1

MDD112C-N-020-R2L-180GA1

by Bosch Rexroth Indramat
Request a quote
The MDD112C-N-020-R2L-180GA1 is a digital AC servomotor crafted by Bosch Rexroth Indramat and designed to work exclusively with proprietary digital drive controllers. This motor is ideal for grinding machines due to the low inertia achieved through carefully selected materials for the integrated permanent magnets. Protection against overload damage is ensured by a temperature sensor in the windings, and the motor features a blocking brake. Connectors are designed for flange sockets, fostering easy cable connections. Operational conditions range from 0°C to 45°C and the device boasts an IP 44 protection rating. A shock duration of 6ms for the lateral axis is permissible, whilst its natural convection cooling allows a continuous 28Nm torque at standstill. The servomotor also has the capability for a B14 mounting design and a customizable pilot diameter of 180mm. It possesses a non-positive torque transmission due to a plain output shaft, has a blocking brake voltage of 24VDC, and requires a trained electrician for starting procedures.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MDD112C-N-020-R2L-180GA1
  • Application: Grinding Machines
  • Length Code: C
  • Inertia: Low
  • Integrated Parts: Temperature Sensor, Blocking Brake
  • Cable Connections: Flanged Sockets with Connectors
  • Operational Temperature: 0°C to 45°C
  • Protection Rating: IP 44
  • Shock Duration: 6ms (Lateral axis)
  • Standstill Torque: 28Nm (Natural Convection)
  • Extra Paint Layer: Up to 40µm
  • Mounting Design: B14
  • Pilot Diameter: 180mm
  • Output Shaft: Plain
  • Blocking Brake Voltage: 24VDC
  • Initial Speed Requirement: 100RPM (Without load)
  • Power Connection: A-side Output Direction
  • Feedback Type: Digital Servo Feedback
  • Cable Connection: Soldered or Crimped
  • Encoder Principle: Optical System
  • Winding Inductance: 5mH
  • Installation Requirement: Fully Trained Electrician
