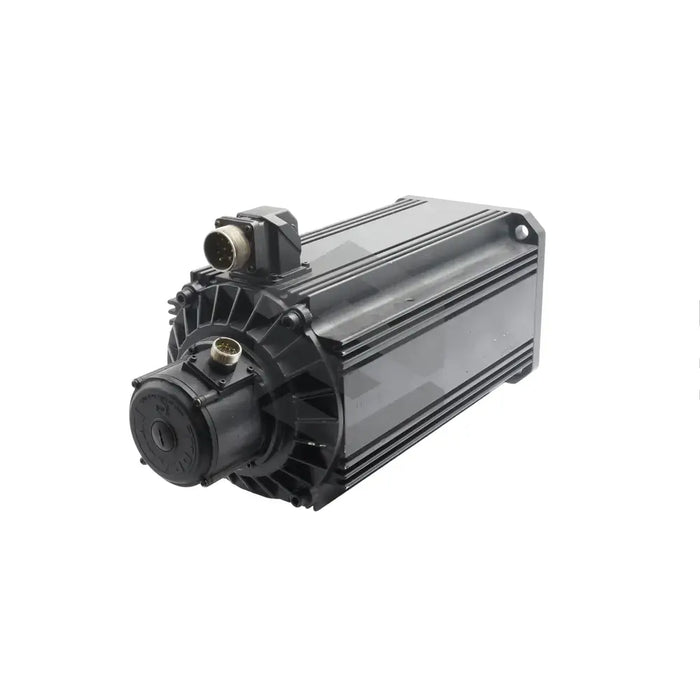

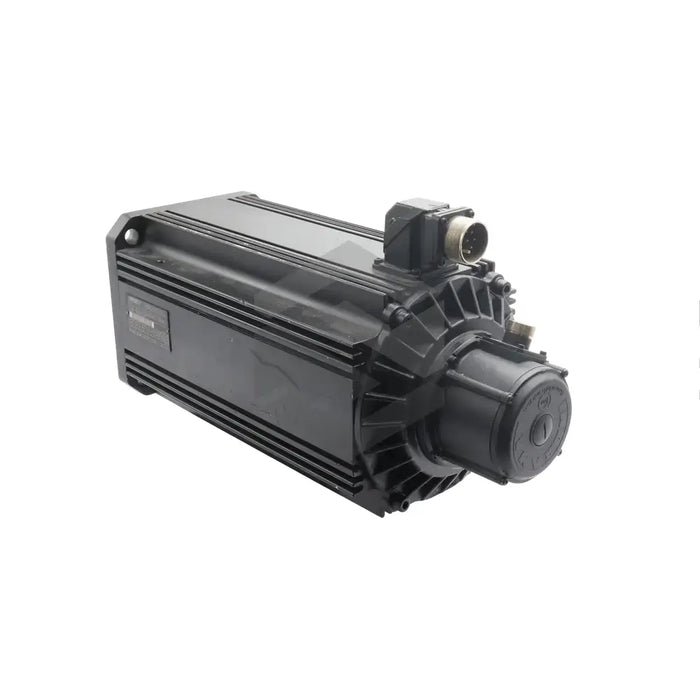

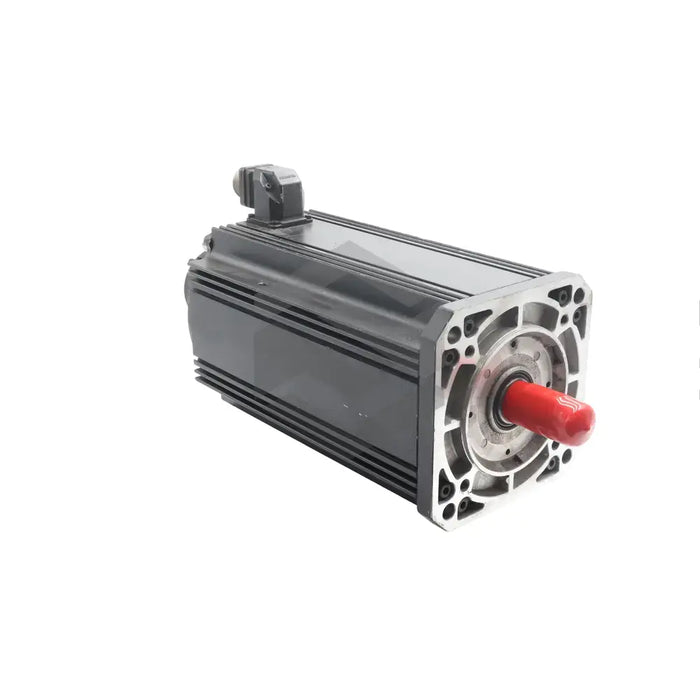

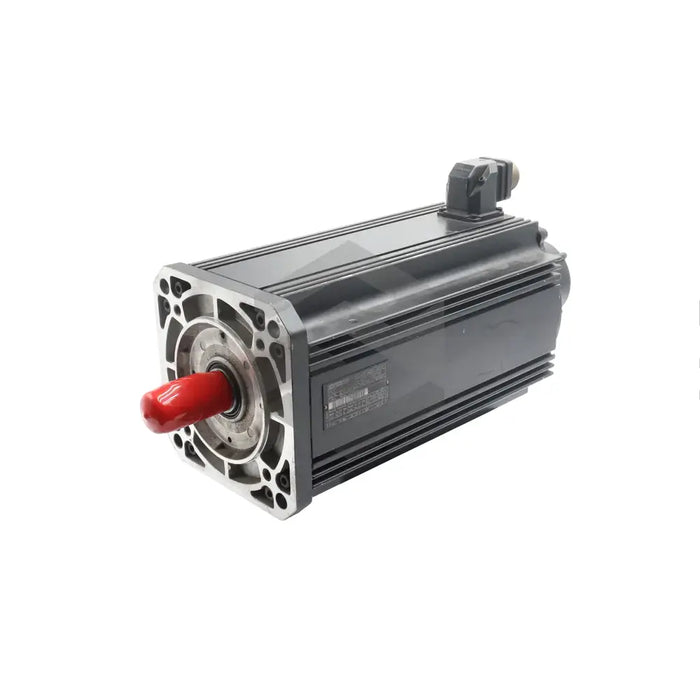

C image of MDD112C-N-030-N2L-130PB0 | Main (Front Left)

MDD112C-N-030-N2L-130PB0

by Bosch Rexroth Indramat
$11,458.60 - $18,750.00
$18,750.00
$11,458.60 - $18,750.00
$18,750.00

In Stock, Ships 1 - 3 Days

The MDD112C-N-030-N2L-130PB0, produced by Bosch Rexroth Indramat, is an innovative digital AC servo motor with a sensor for continous tracking and adjusting of motor speed and torque. Its standard motor housing design adheres to the balance class of DIN VDE 0530 section 15. It offers a nominal speed rating of 3000 RPM and a standard frame length of 112. The shaft, complete with a keyway, does not include a holding brake, though one may be provided separately if necessary. The motor is powered via a power cable connected to a socket on side B of the housing. The flange-mounted motor measures 462mm in length, with a flange size of 193mm, a centering diameter of 130mm, and a shaft diameter of 32mm. Ideally suited for natural convection and surface cooling, it operates within an ambient temperature range of 0-45 degrees Celsius and up to an elevation of 1000 meters, with a housing protection class of IP65.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital AC servo motor

Motor Frame Size

112

Motor Frame Length

C

Motor Nominal Speed Rating

3000 RPM

Motor Housing Design

Standard

Motor Balance Class

Standard, compliant with DIN VDE 0530 section 15

Shaft

Includes keyway

Shaft End

Standard

Holding Brake

Not included, available as optional extra

Power Connection

On side B of housing

Mounting

Flange

Flange Size

193 millimeters

Motor Length

Approximately 462 millimeters

Centering Diameter

130 millimeters

Shaft Diameter

32 millimeters

Shaft Length outside Housing

Approximately 60 millimeters

Cooling Type

Natural convection and surface cooling

Ambient Temperature Range

0 to 45 degrees Celsius

Elevation Range

0 to 1000 meters

Protection Class

IP65
