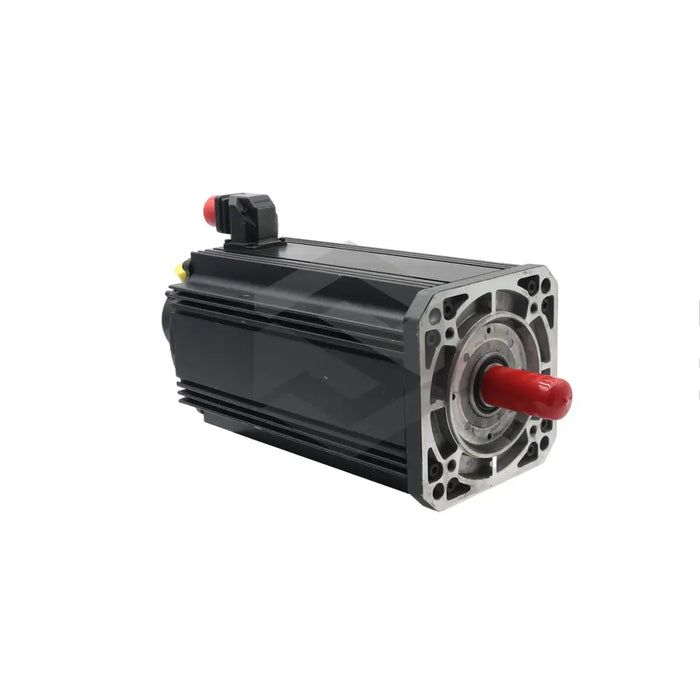

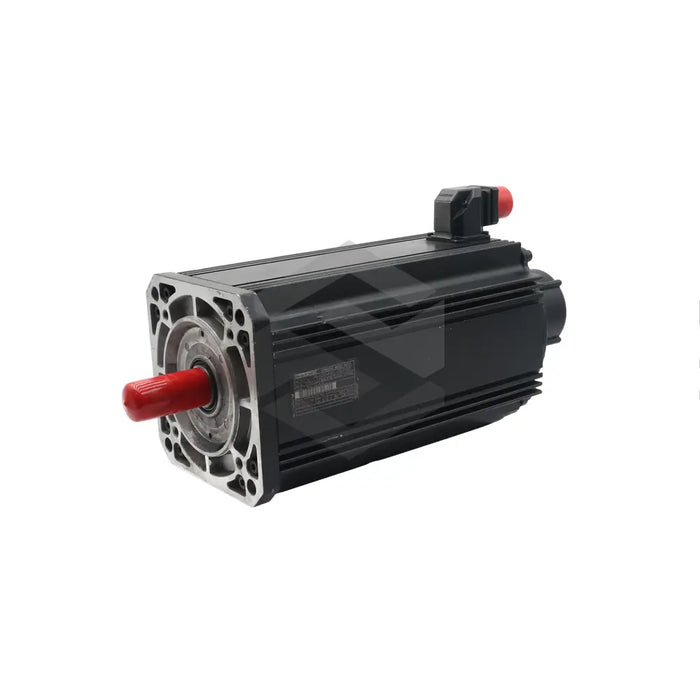

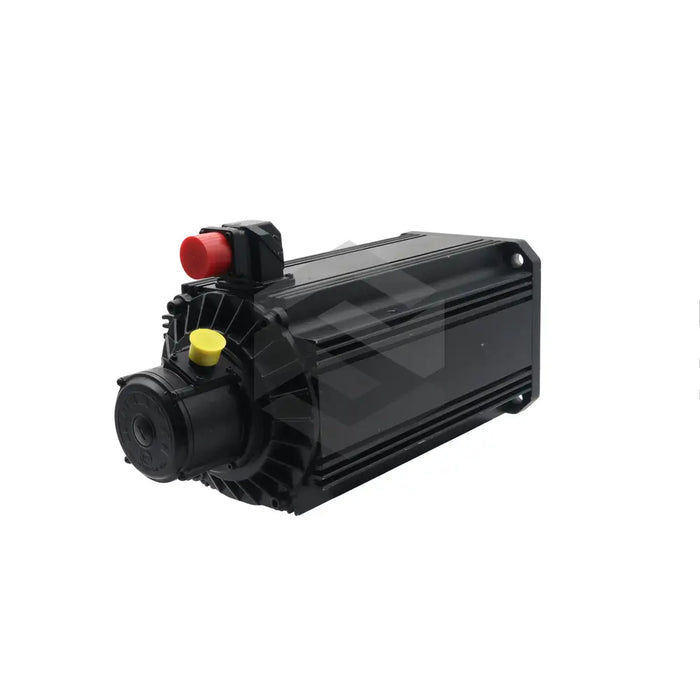

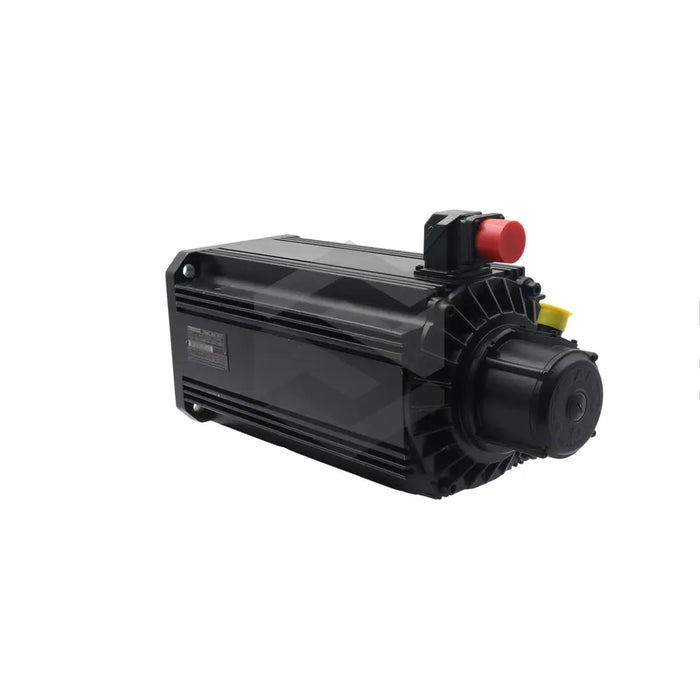

MDD112C-N-030-N2L-130PB1
The MDD112C-N-030-N2L-130PB1 is a synchronous servo motor produced by Bosch Rexroth Indramat, as part of the MDD series. Suitable for industrial applications, this motor functions with a compatible servo controller that regulates motor parameters. Data about these motor parameters is transmitted through an inbuilt sensor, known as an encoder. The servo controller also supplies electrical power to the motor. For effective torque transfer, the motor’s output shaft incorporates a keyway. The motor also comes with a safety blocking brake with a holding torque rating of 14 Nm. Motor movements are allowed only after a 24 volts DC electrical signal is applied. The motor adopts natural convection and surface cooling for heat dissipation, enhancing torque and current output. It also supports digital servo feedback and has a 3000 RPM nominal speed rating. The motor, with an IP65 protection rating, is flange-mounted and requires a 130mm centering diameter for installation.
