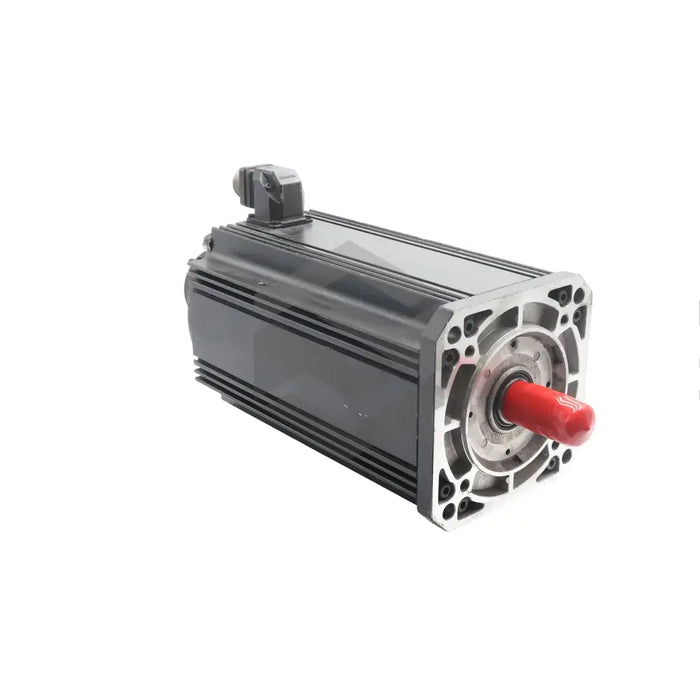

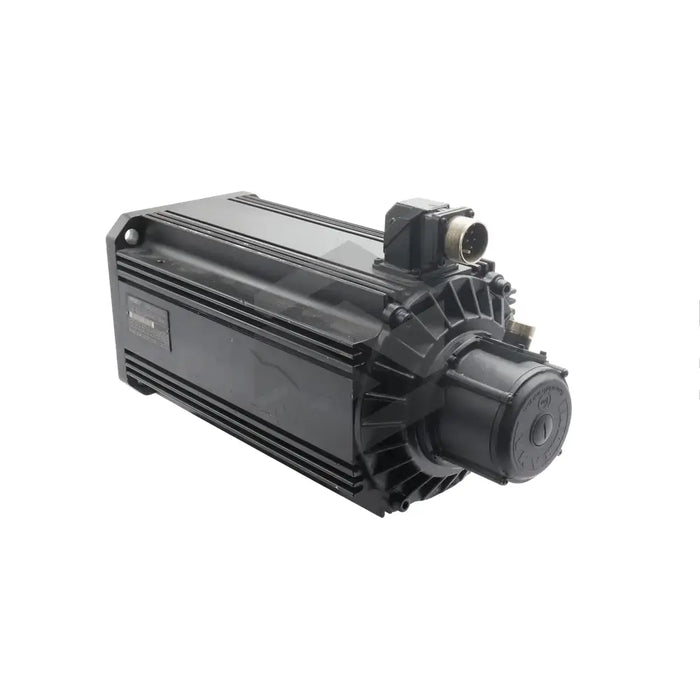

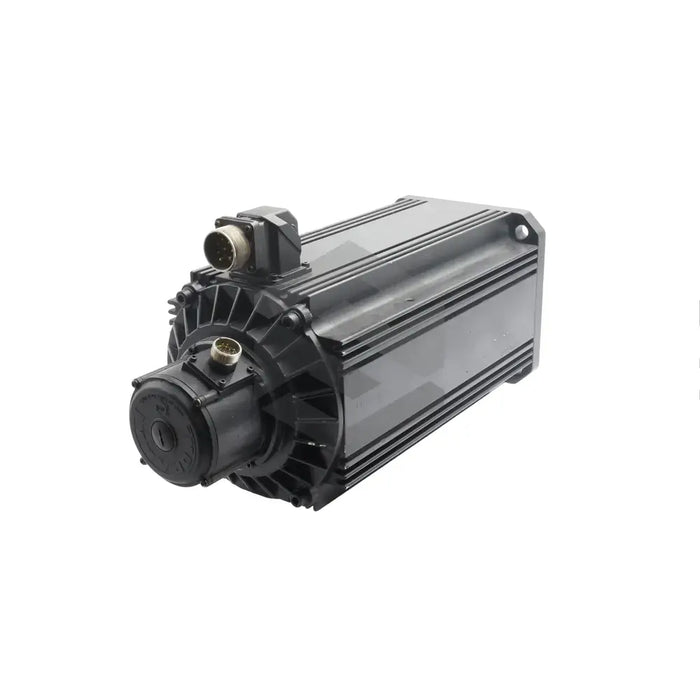

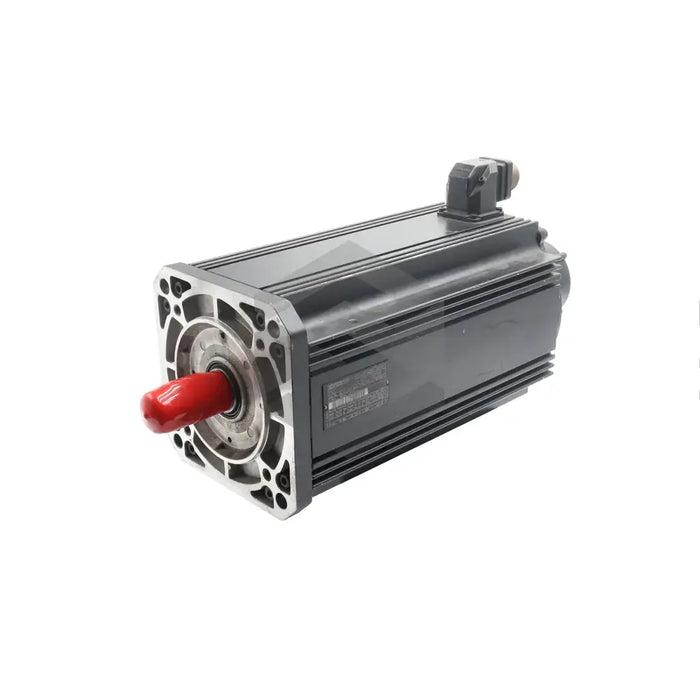

C image of MDD112C-N-030-N2L-130PB2 | Main (Front Left)

MDD112C-N-030-N2L-130PB2

by Bosch Rexroth Indramat
$6,596.22 - $9,600.00
$6,596.22
$6,596.22 - $9,600.00
$6,596.22

In Stock, Ships 1 - 3 Days

The MDD112C-N-030-N2L-130PB2 is a Bosch Rexroth Indramat MDD series servo motor designed with permanent magnets for precision performance. This brushless motor is renowned for its minimal maintenance needs due to its life-time lubricated bearings. The integrated temperature sensor in the motor windings prevents potential overload damage by enabling constant monitoring. Its digital servo feedback and high motor feedback resolution allow for highly synchronous motor operation. The motor features a blocking brake rated at 40 Nm that activates with a 24 Volts DC signal. The motor's shaft has a DIN 6885-1 standard keyway for optimal torque transfer. The nominal speed reaches up to 3000 RPM, with a standard housing design suitable for natural convection. Its protection class is IP65, with an operating temperature range between 0 and 45 degrees Celsius. The motor's power source hails from the connected drive controller. Proper installation and compatibility with approved accessories are necessary for optimal performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

MDD series servo motor

Material

Permanent Magnets

Components

Laminated core with magnets,Rotor shaft, Encoder, Windings,Optional blocking brake

Motor Type

Brushless

Maintenance Requirement

No maintenance required due to lifetime lubricated bearings

Temperature Monitoring

Yes, Integrated sensor

Motor Operation

Highly synchronous

Feedback Mode

Digital Servo Feedback

Centering Diameter

130 millimeters

Motor Blocking Brake Rating

40 Nm

Brake Operation

Releases after application of a 24 Volts DC signal

Shaft

Includes a keyway according to DIN 6885-1

Nominal Speed Rating

3000 RPM

Housing Design

Standard,Natural Convection

Recommended Ambient Temperature

0 to 45 degrees Celsius

Protection Class

IP65

Surface Color

Black

Power Socket Position

Side B of the housing

Installation Recommendation

Should be installed by trained personnel

Accessory Approval

Only approved accessories should be used

Usage

Should only be used for specified applications.
