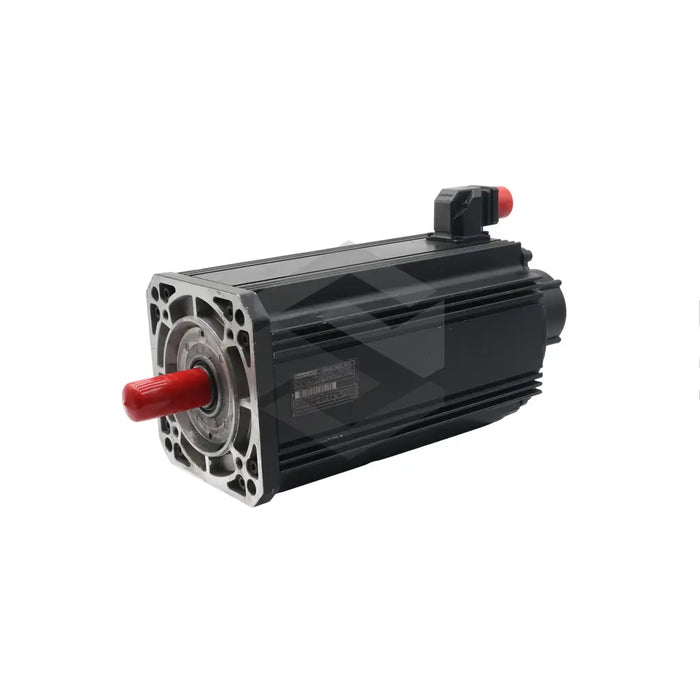

C image of MDD112C-N-030-N2M-130PA1 | Main (Front Left)

MDD112C-N-030-N2M-130PA1

by Bosch Rexroth Indramat
$2,827.11 - $17,968.63
$2,827.11
$2,827.11 - $17,968.63
$2,827.11

In Stock, Ships 1 - 3 Days

The MDD112C-N-030-N2M-130PA1 is a digital AC servomotor produced by Bosch Rexroth Indramat, offering exceptional operational reliability and maintenance-free performance. Ideal for high-speed cutting tasks, this servomotor - which employs both surface cooling and natural convection - features low inertia, a 14Nm blocking brake, and an encoder system for feedback. It also includes a shaft with a keyway and connectors on flanged sockets for direct connection of power and feedback cables. The motor's housing adopts a black prime coating and conforms to Design B14, allowing vertical positioning of the shaft. The optimal operating temperature should stay below 55°C, while the shock duration for the longitudinal axis is capped at 22ms. IP 65 protection safeguards the shaft, with a standard pilot diameter of 130mm. Note, however, the blocking brake does not ensure personal safety. Finally, the motor's application should remain within its thermal limits, as per its torque-speed parameters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MDD112C-N-030-N2M-130PA1

Size Code

112

Function

Works with a digital drive controller

Ideal Use

Cutting in high-speed ranges

Inertia

Low

Design

Permanent magnets using iron oxide or rare earth magnetic materials

Feedback

Encoder system

Feature

14Nm blocking brake

Operation

High operational reliability and maintenance-free

Housing

Standard, supports surface cooling and natural convection

Shaft

Includes a keyway for form-fitting shaft-hub-connections

Connection

Connectors on flanged sockets for direct connection of feedback and power cables

Maximum Operating Temperature

55°C

Shock Duration

Maximum 22ms for longitudinal axis

Housing Coating

Black prime

Mounting

Design B14, vertical installation with shaft up or down

Pilot Diameter

Standard 130mm

Protection Category

IP 65 for shaft

Cooling

Radial-type surface cooling

Brake

Blocking brake without personnel safety assurance

Reseating Process

Requires drive controller shutdown for a minute after closing brake

Connectors

Straight or angle type for feedback

Cables

Connecting cables for brake, temperature sensor, and power connection

Torque-Speed Characteristics

Utilized to check thermal limits application
