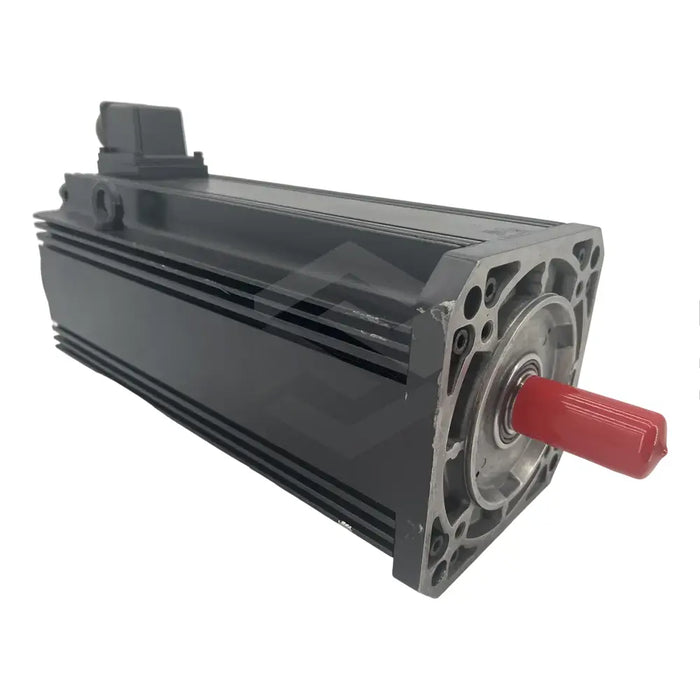

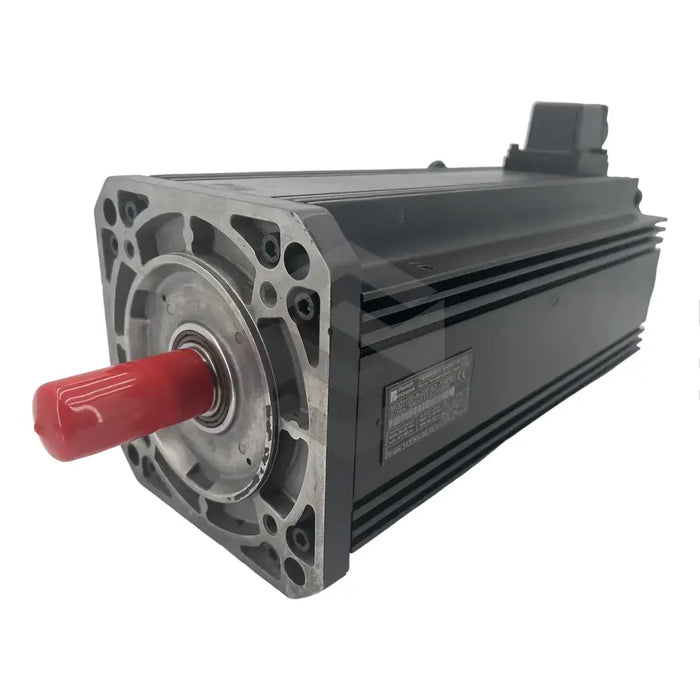

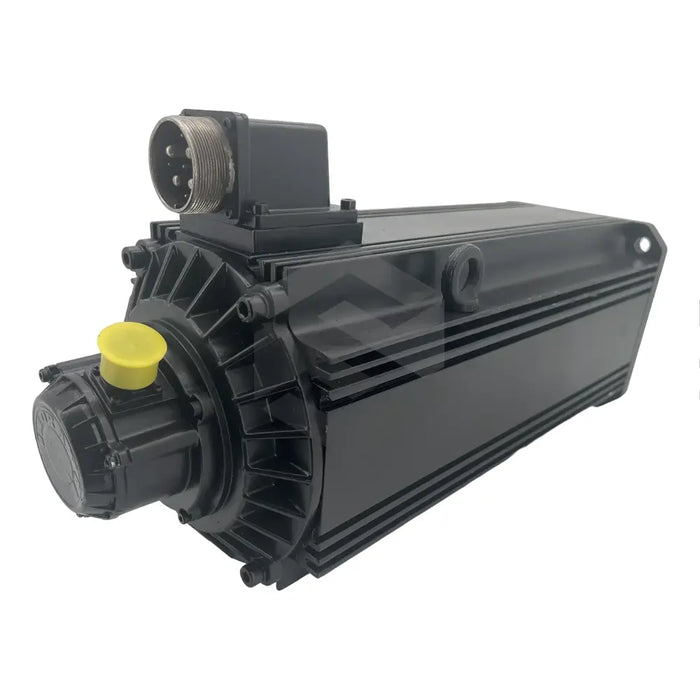

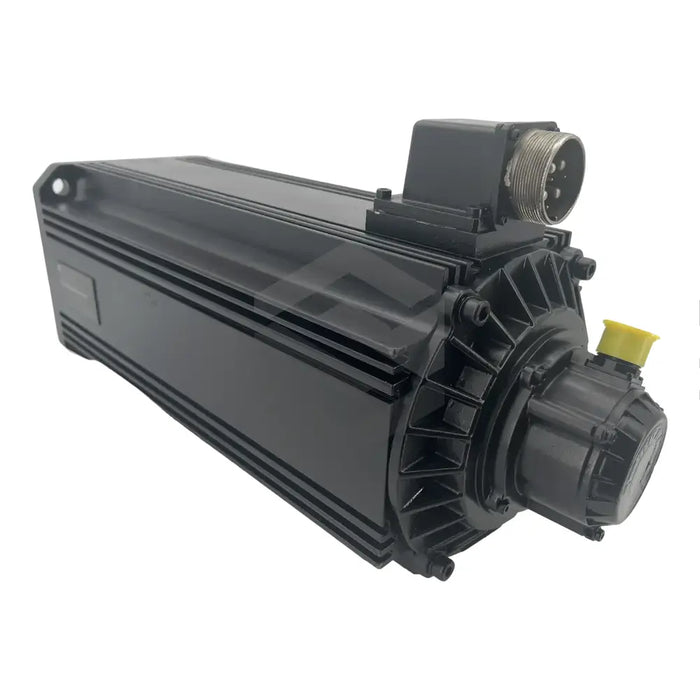

product Main (Front Left) image of MDD112D-N-020-N2L-130PB1

MDD112D-N-020-N2L-130PB1

by Bosch Rexroth Indramat
$12,878.00 - $12,878.00
$12,878.00
$12,878.00 - $12,878.00
$12,878.00
In Stock, Ships Today
The MDD112D-N-020-N2L-130PB1 is a highly reliable AC servo motor by Bosch Rexroth Indramat. Suitable for multiple industries, it is engineered to be compliant with IP65 regulations and operates efficiently up to 1000 MSL. The model presents improved dependability and reduced radio frequency interference, providing continuous torque of 38 Nm while utilizing 43.8 A of constant current. With a maximum torque output of 134.6 Newton meters, it weighs 59 kilograms and has a centering diameter of 130 mm. The motor, specifically designed for operation within 0 and +45 degrees Celsius, excels with a high rotational speed of 2000 rpm. It features a holding brake with 30 and 70 milliseconds clamping and release times respectively. The motor also houses a B side power connection and demonstrates a winding resistance of 0.18 ohms and a winding inductance of 2.7 mH. With a digital servo feedback, the output shaft with keyways enhances the rotor's speed and location precision. Installation and operation should be carried out by a trained expert to guarantee optimal performance, minimizing vibrations. The motor carries a thermal time constant of 120 minutes and its insulation class is F.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product type: Servo Motor
  • Model number: MDD112D-N-020-N2L-130PB1
  • IP requirements: Compliant with IP65
  • Maximum installation height: 1000 MSL
  • Continuous torque: 38 Nm
  • Constant current: 43.8 A
  • Maximum torque output: 134.6 Newton meters
  • Weight: 59 kilograms
  • Centering diameter: 130 millimeters
  • Balancing class: N
  • Operational temperature: 0 to +45 degrees Celsius
  • Rotational speed: 2000 revolutions per minute
  • Clamping time: 30 milliseconds
  • Release time: 70 milliseconds
  • Power connection location: B side of the housing
  • Winding resistance: 0.18 ohms
  • Winding inductance: 2.7 mH
  • Inertia moment: 230 x 10-4 kgm2
  • Torque constant: 0.87 Nm/A
  • Output shaft: With keyway
  • Feedback: Digital servo feedback
  • Thermal time constant: 120 minutes
  • Insulation class: F.
