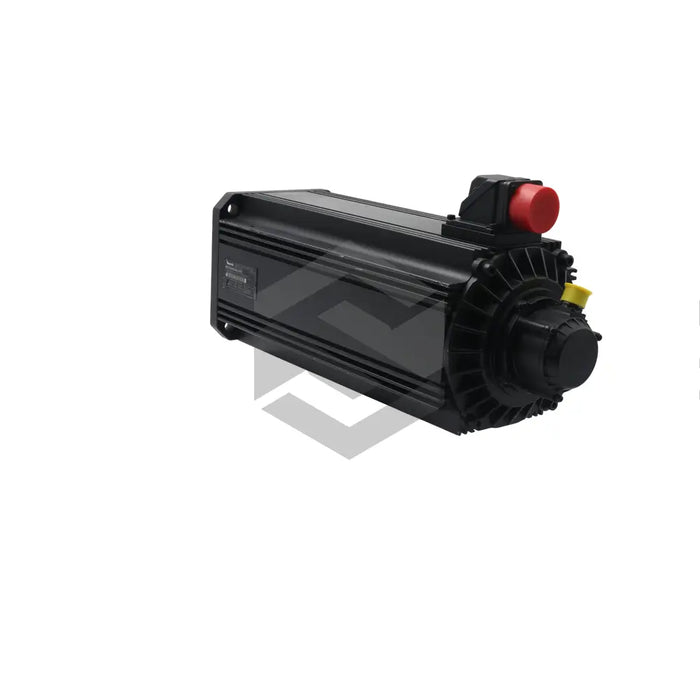

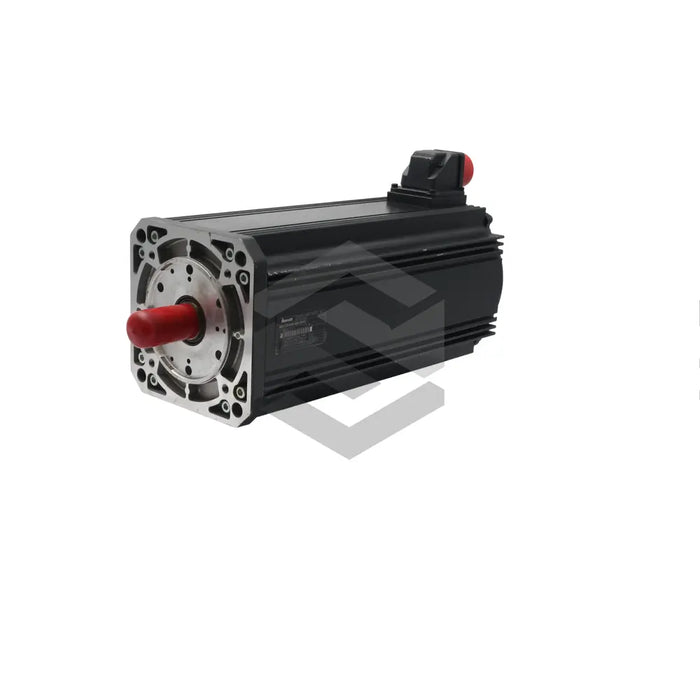

series image of MDD112D-N-020-N2L-130PL0

MDD112D-N-020-N2L-130PL0

by Bosch Rexroth Indramat
$12,177.86 - $12,177.86
$12,177.86
$12,177.86 - $12,177.86
$12,177.86
In Stock, Ships 3 - 5 Days
The MDD112D-N-020-N2L-130PL0, a servo motor made by Bosch Rexroth Indramat, is designed for use in a range of industrial applications such as grinding machines, milling devices, and robotics. This AC servo motor facilitates high-frequency start-stop operation and can achieve a nominal speed of 2000 rpm. It boasts a continuous power consumption of 43.8 to 65.8 A and can deliver constant power of 30 Nm at natural cooling and 57 Nm at surface cooling. With a maximum theoretical torque of 134.8 Nm at a maximum current of 166.4 A, it also includes a temperature monitoring sensor to prevent overheating. The motor’s shaft features a keyway and is protected by a shaft sealing ring. It incorporates left-side power delivery through a power connector for electrical linking with the drive controller. This motor is designed to American standards, weighs 59 kg, and requires a flat, clean mounting surface.
30 Day Warranty
Technical Specifications
  • Product Model: MDD112D-N-020-N2L-130PL0
  • Manufacturer: Bosch Rexroth Indramat
  • Constant power (Natural Cooling): 30 Nm
  • Constant power (Surface Cooling): 57 Nm
  • Continuous Current Consumption: 43.8 - 65.8 A
  • Nominal Speed: 2000 rpm
  • Maximum Theoretical Torque: 134.8 Nm
  • Maximum Current: 166.4 A
  • Motor Housing Coating: Premium Black
  • Recommended Usage: Grinding machines, Milling machines, Robotics
  • Torque Constant: 0.87 Nm/A
  • Net Weight: 59 kg
  • Installation Requirement: Flat surface, Free from reactive elements
  • Power Connector: Left-side power delivery
  • Temperature Monitoring: Yes
  • Characteristic Speed: 2000 rpm
  • Servo Feedback: Digital, for indirect position detection
  • Shaft: With keyway, protected by shaft sealing ring
  • Cooling Modes: Natural and Surface Cooling
