MDD112D-N-030-N2L-130PA1

Original price $7,542.50 - Original price $7,542.50
Original price
$7,542.50
$7,542.50 - $7,542.50
Current price $7,542.50
Available, Shipping Varies
Request a quote

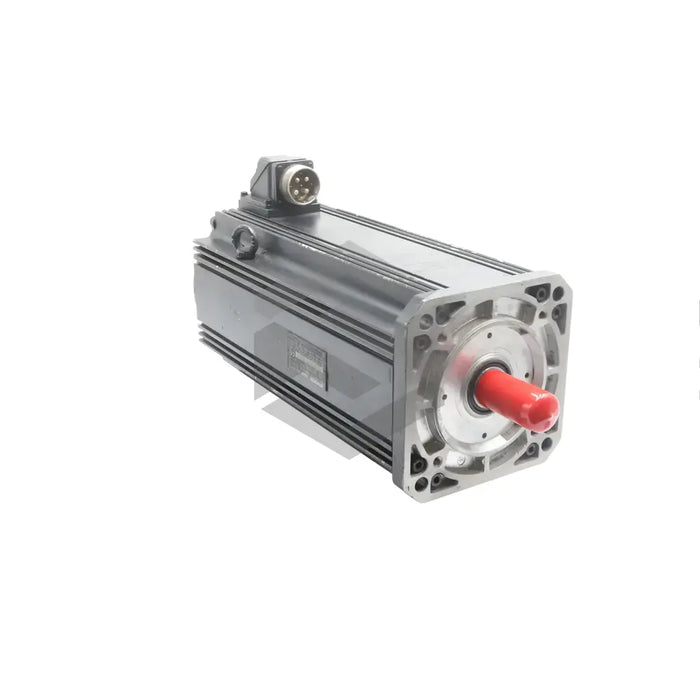

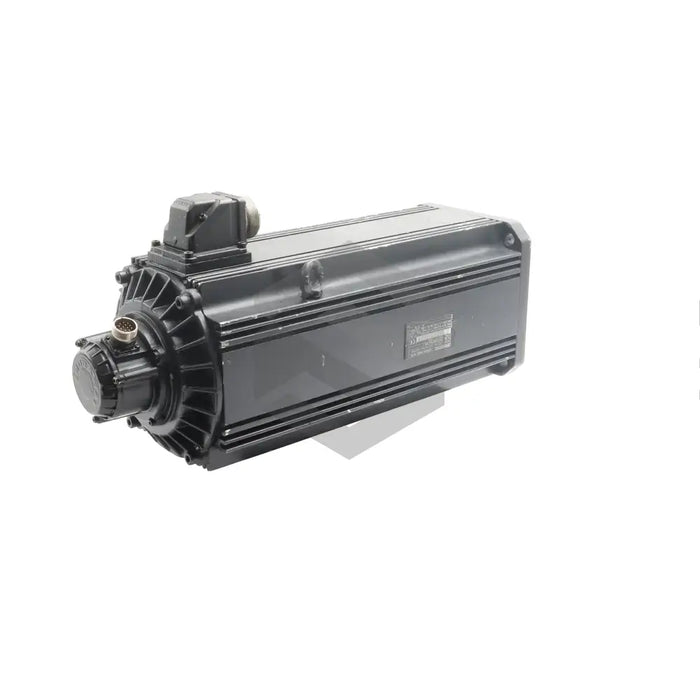

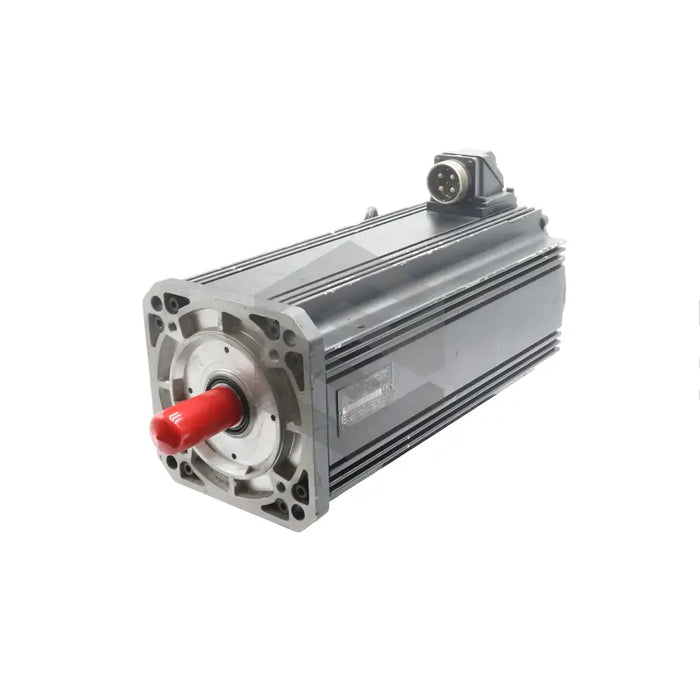

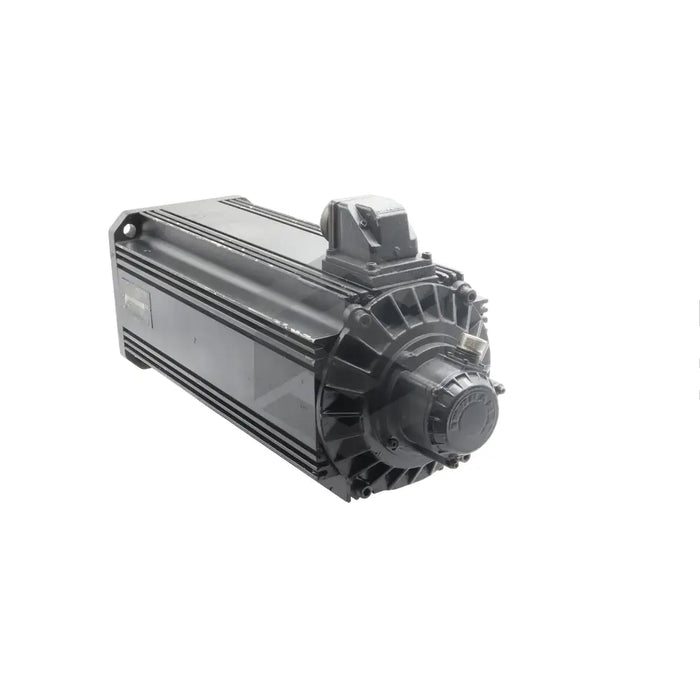

Bosch Rexroth Indramat's MDD112D-N-030-N2L-130PA1 model, a part of their MDD series, introduces an AC servo motor that is both compact and delivers high precision, perfectly suited for high synchronism applications. This model operates at a nominal speed of 3,000 revolutions per minute and utilizes a centering diameter of 130mm. The sleek design facilitates heat dissipation through natural convection and surface cooling, and the built-in thermal sensor prevents thermal overload damage. Its installation is streamlined with various ready-made cables and the bearings have a nominal service life of 30,000 hours, providing a maintenance-free operation and reducing risks of contamination. Encased in an IP 65 rated housing according to DIN 40 050, the MDD112D-N-030-N2L-130PA1 is resistant to solid external materials, water jets, and poor environmental conditions. The housing is painted with a black, resilient prime coat and the digital servo feedback encoder ensures a system accuracy of ±0.5 angular minutes.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MDD Synchronous Servo Motors
  • Model Number: MDD112D-N-030-N2L-130PA1
  • Design: Compact
  • Precision: High
  • Installation: Simplified with ready-made cables
  • Nominal Speed: 3000 revolutions per minute
  • Centering Diameter: 130mm
  • Cooling System: Natural convection and surface cooling
  • Temperature Monitoring: Inbuilt thermal sensors
  • Bearings: Lifetime-lubricated
  • Nominal Service Life: 30000 operating hours
  • Ingress Protection Rating: IP 65
  • Resistance: Weathering, chalky buildup, lyes, dilute acids
  • Encoder: Digital servo feedback
  • System Accuracy: ±0.5 angular minutes
